Rear Differential Member: Installation

To install, reverse the removal sequence.

1. Position front member on body by passing it under parking brake cable and securing to rear differential.

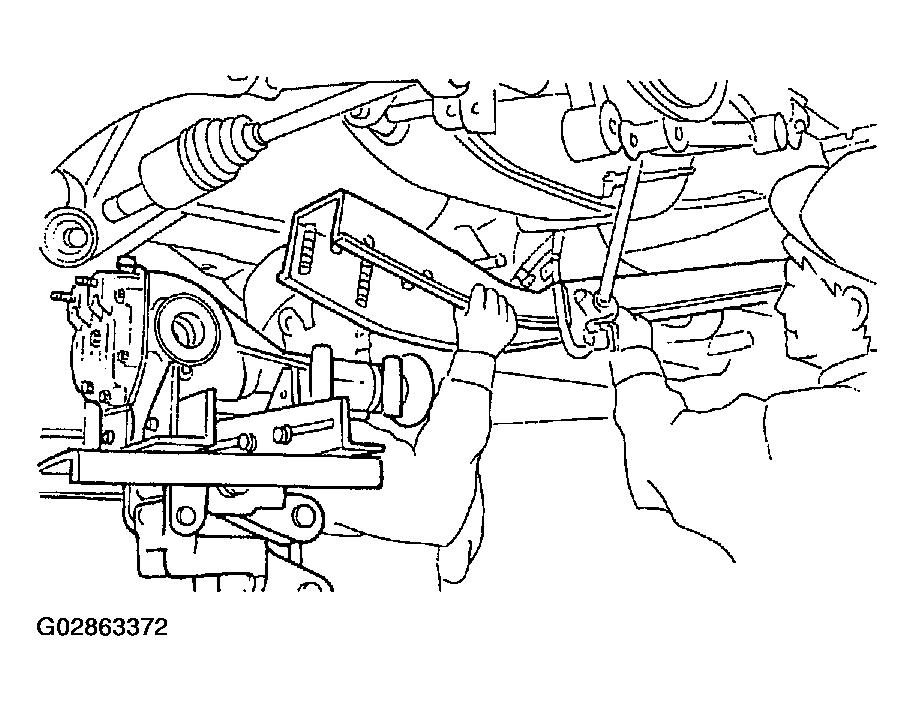

   Fig 1: Securing Rear Differential

   Courtesy of SUBARU OF AMERICA, INC.
   NOTE: When installing rear differential front member, do not confuse the installation sequence of the stopper.

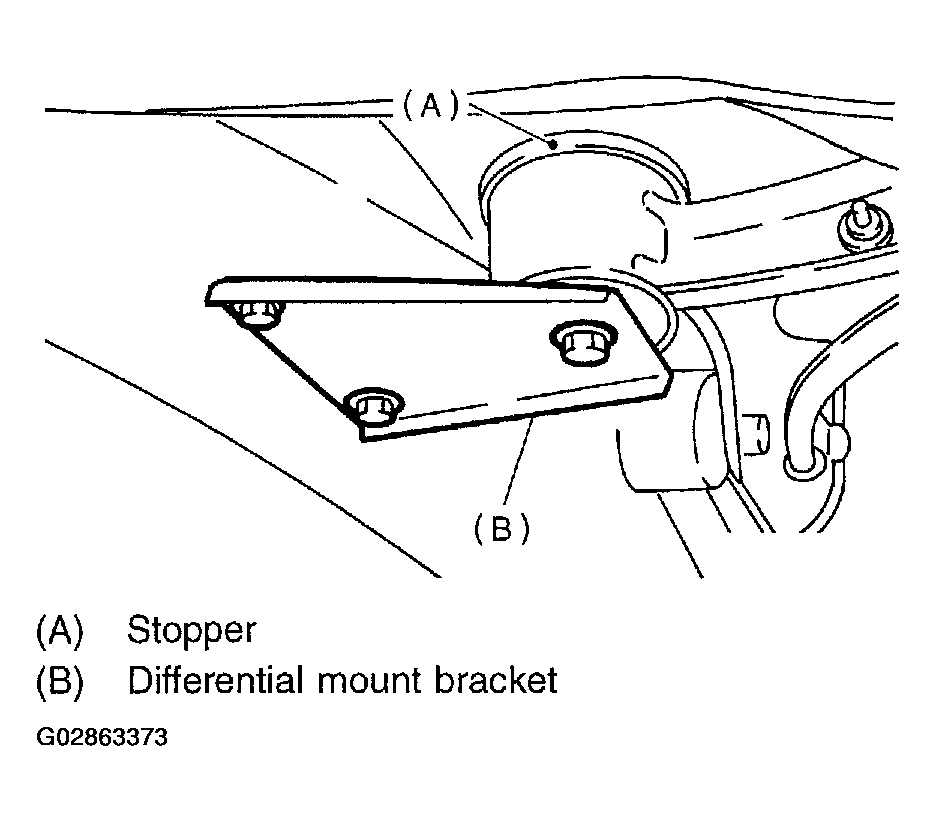

   Fig 2: Identifying Stopper Of Rear Differential

   Courtesy of SUBARU OF AMERICA, INC.
2. Insert DOJ of rear drive shaft into rear differential.

   ST 28099PA090 SIDE OIL SEAL PROTECTOR

   CAUTION: Before inserting, replace the differential side oil seal and the circlip at the end of the spline shaft with a new one.

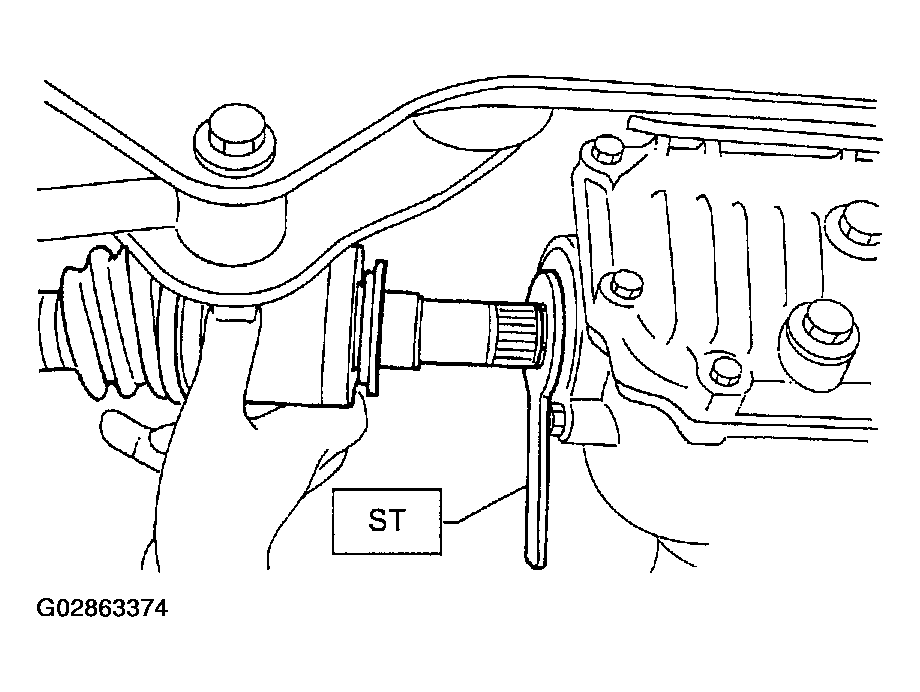

   Fig 3: Inserting DOJ Of Rear Drive Shaft Into Rear Differential

   Courtesy of SUBARU OF AMERICA, INC.
3. Install in the reverse order of removal.
