Circuit Diagram

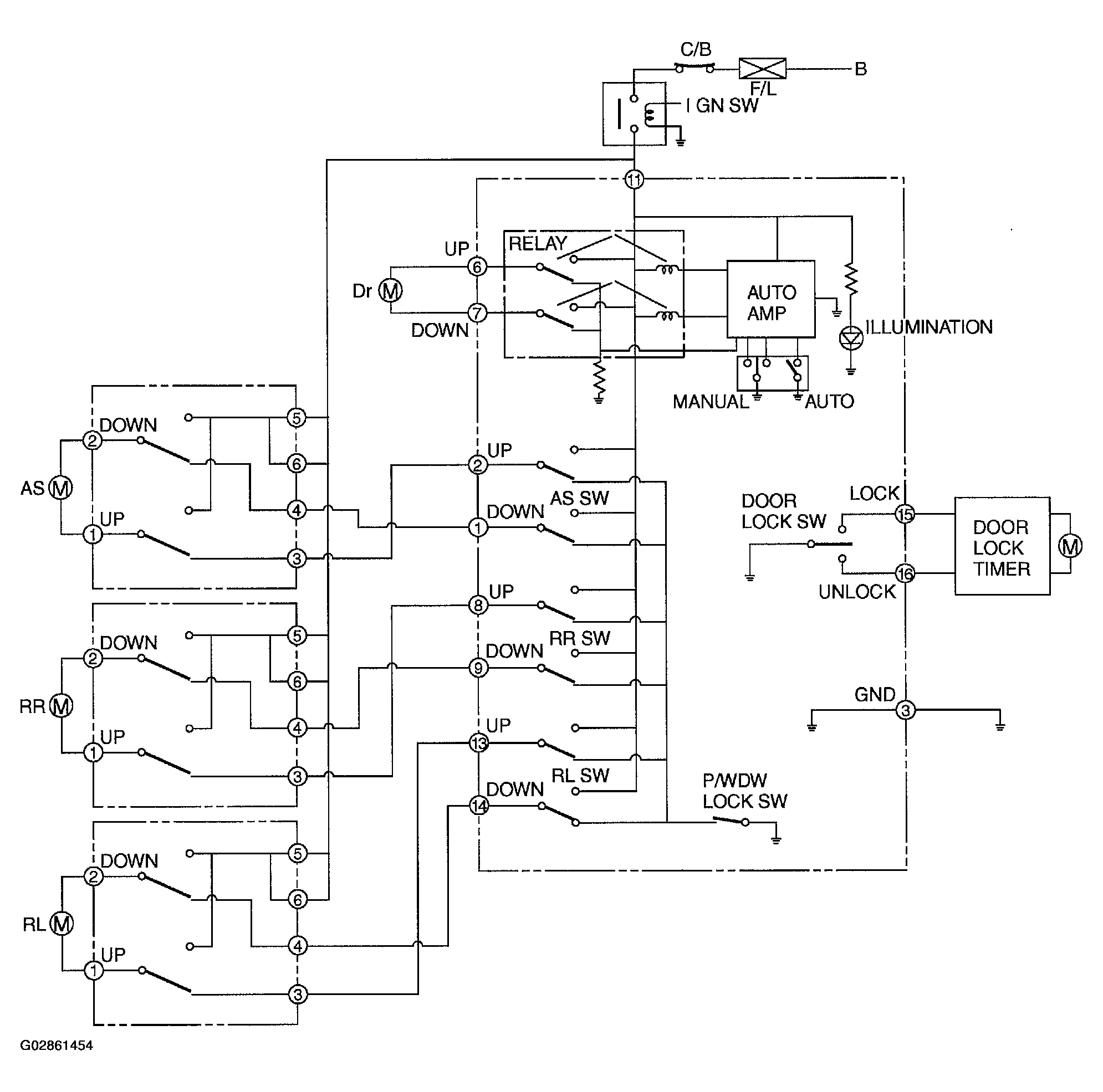

Fig 1: Power Window Wiring Schematic

G02861454

Courtesy of SUBARU OF AMERICA, INC.
