General Diagnostic: Inspection

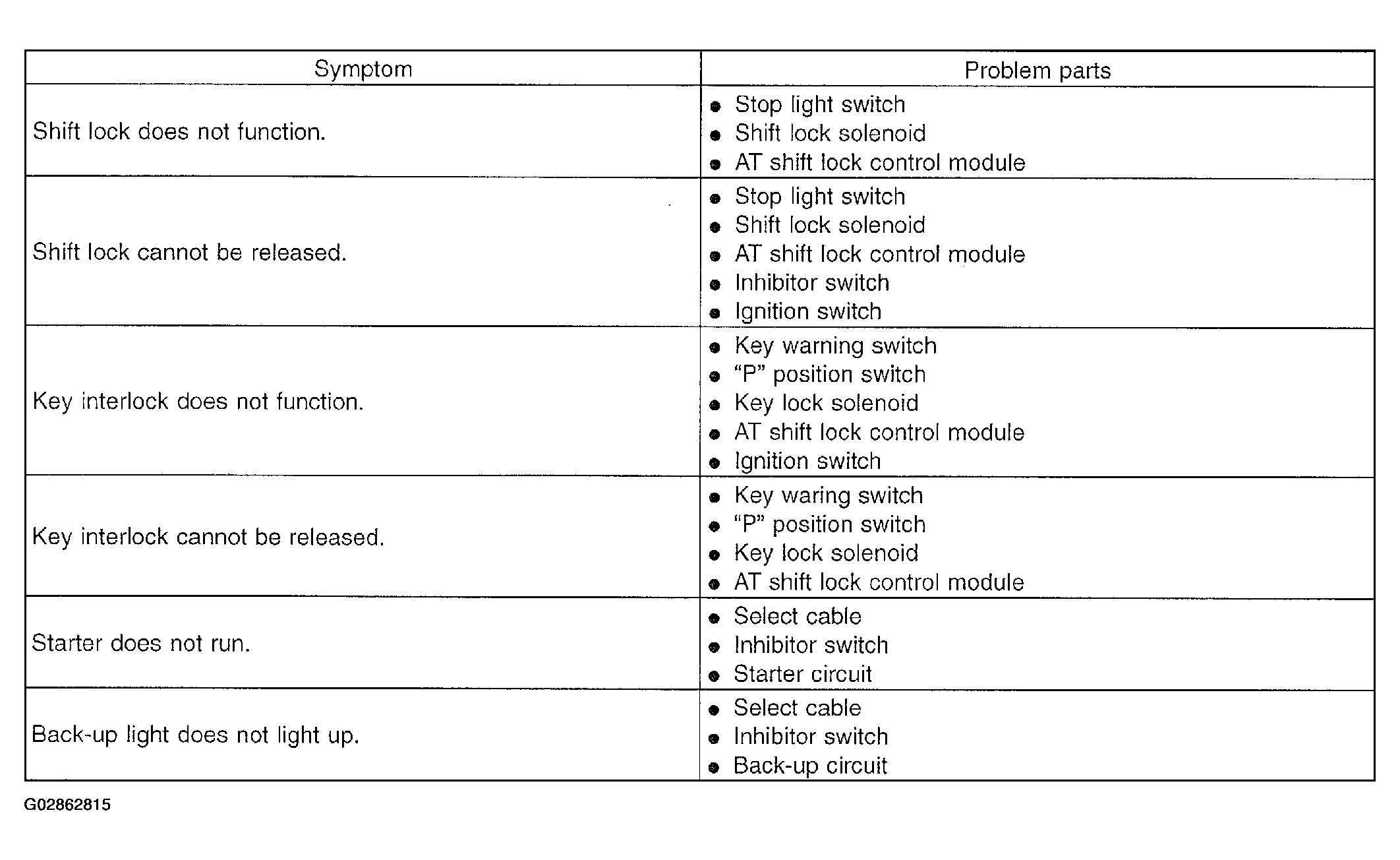

Fig 1: Control System Symptom And Problem Parts Chart

G02862815

Courtesy of SUBARU OF AMERICA, INC.
