AT Shift Lock Solenoid and "P" Position Switch: Inspection

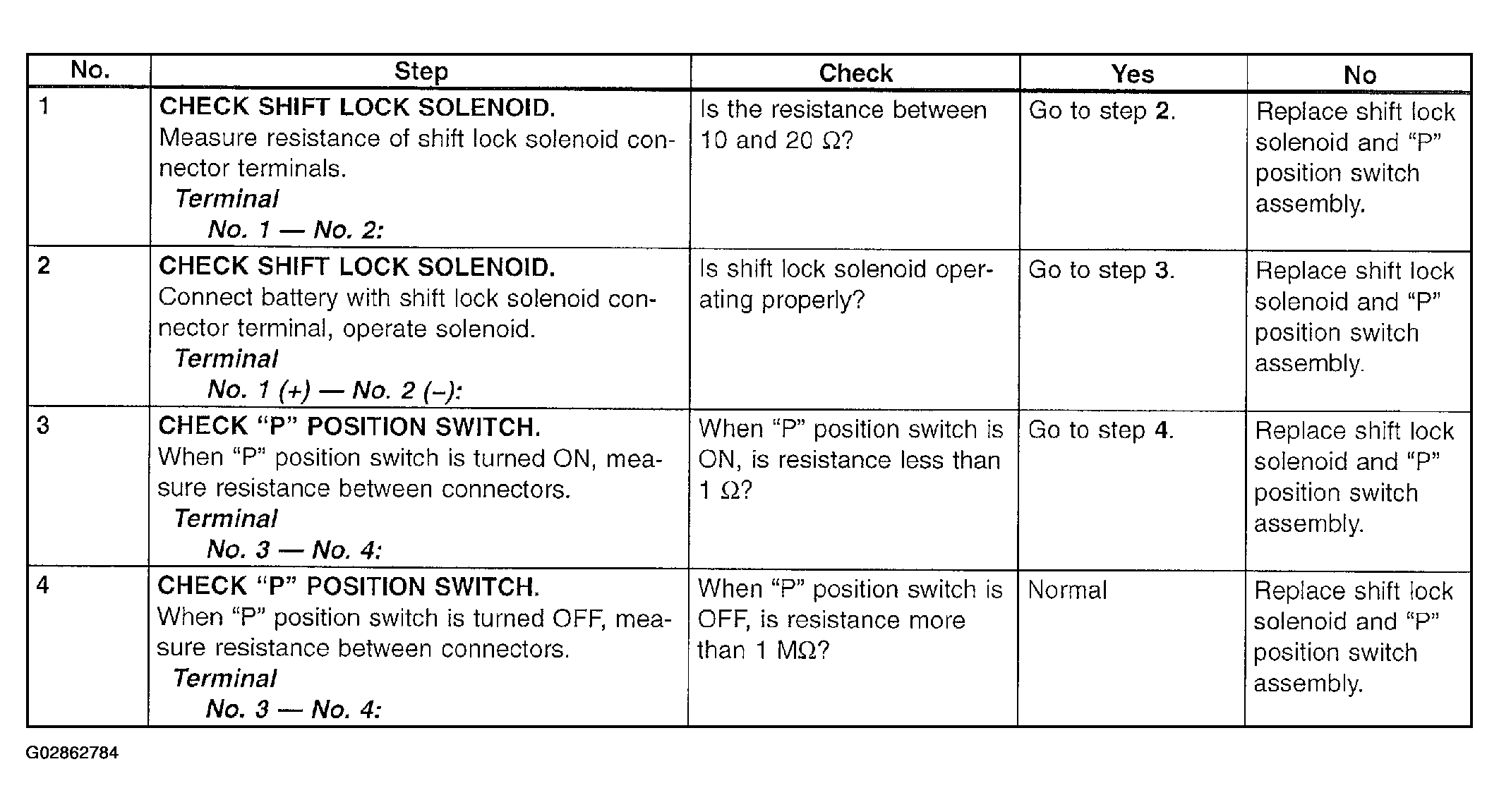

Fig 1: AT Shift Lock Solenoid And "P" Position Switch Inspection Procedure Chart

G02862784

Courtesy of SUBARU OF AMERICA, INC.
