Differential Case Assembly

Using a press and ST, remove the taper roller bearing.
NOTE: Replacing bearing inner and outer races as a single unit.

ST 498077000 REMOVER

Fig 1: Removing Taper Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.

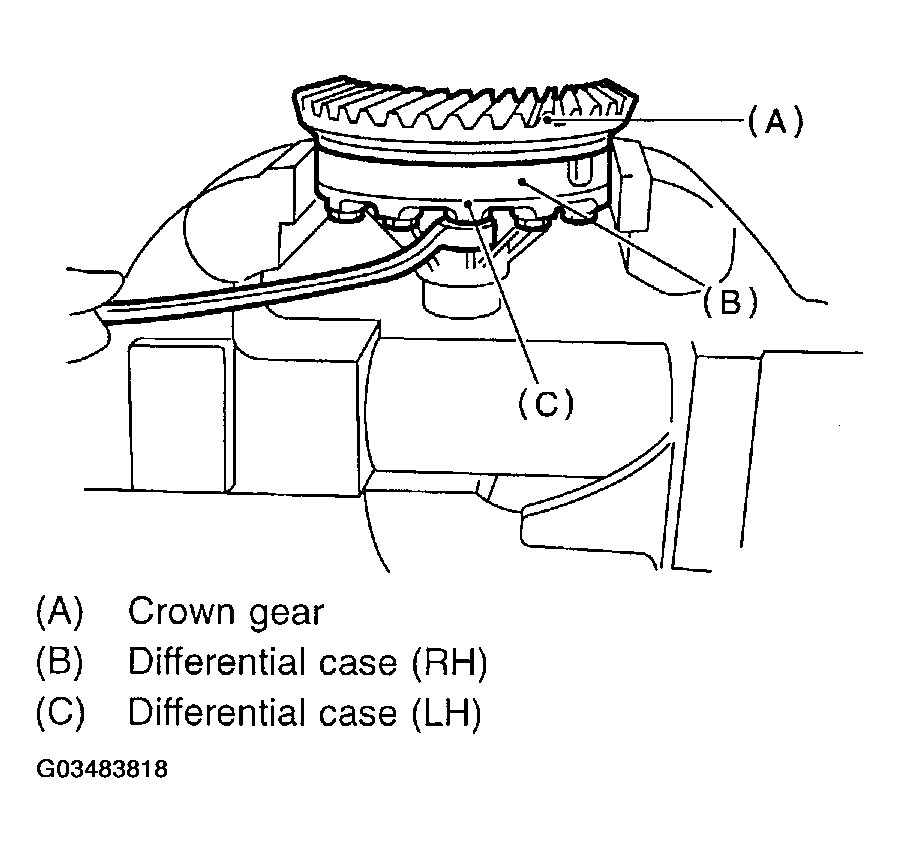

Secure the case in a vise and remove the crown gear tightening bolts, then separate the crown gear, case (RH) and case (LH).

Fig 2: Removing Crown Gear
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and shaft, and remove the differential bevel gear, washer, and differential bevel pinion.

Fig 3: Removing Differential Bevel Gear, Washer, And Differential Bevel Pinion
Courtesy of SUBARU OF AMERICA, INC.
