Side Retainer

  1. Install bearing outer race to side retainer.
    NOTE: Avoid scratching side retainer and bearing outer race when pressing into place.
  2. Install new oil seal.

    ST 499797000 INSTALLER

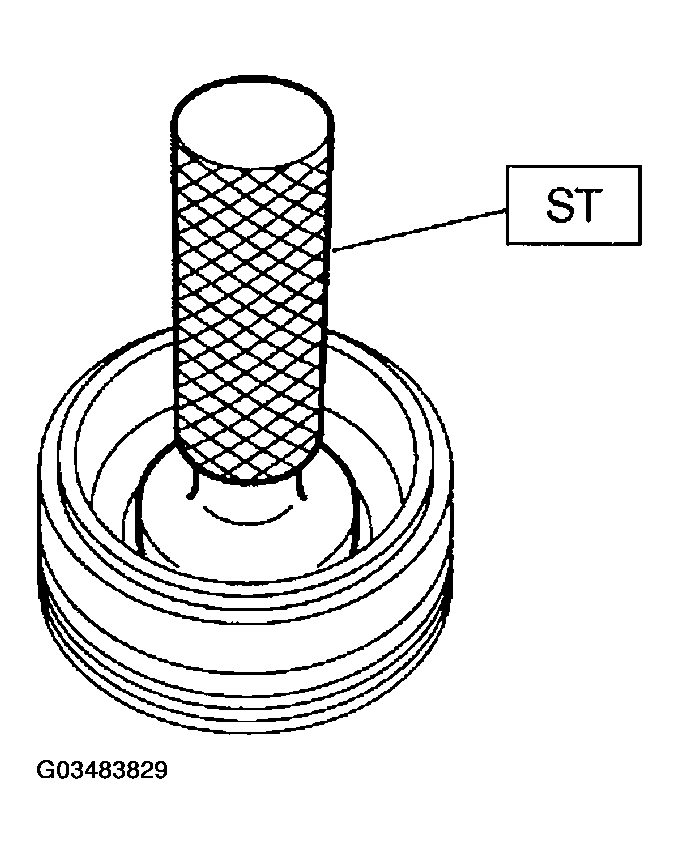

    Fig 1: Installing Bearing Outer Race To Side Retainer
    G03483829Courtesy of SUBARU OF AMERICA, INC.
  3. Install new O-ring.
    NOTE: Do not stretch or damage O-ring.
    Fig 2: Installing New O-Ring
    G03483830Courtesy of SUBARU OF AMERICA, INC.
