Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (On-Vehicle Service) >> Transmission Mounting System >> Removal >> Pitching Stopper

Pitching Stopper

  1. Disconnect battery ground cable.
  2. Remove air intake duct. Refer to REMOVAL under AIR INTAKE DUCT .
  3. Remove air cleaner case. Refer to REMOVAL under AIR CLEANER CASE .
  4. Remove the pitching stopper.

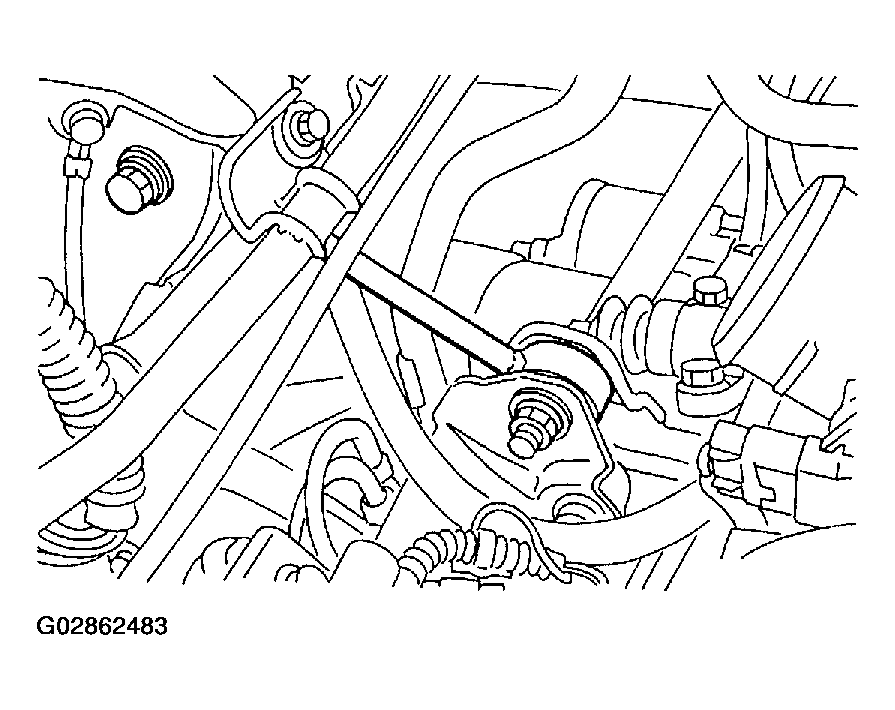

    Fig 1: Removing Pitching Stopper
    G02862483Courtesy of SUBARU OF AMERICA, INC.
