Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (On-Vehicle Service) >> Stall Test >> Inspection >> Evaluation

Stall Test: Inspection: Evaluation

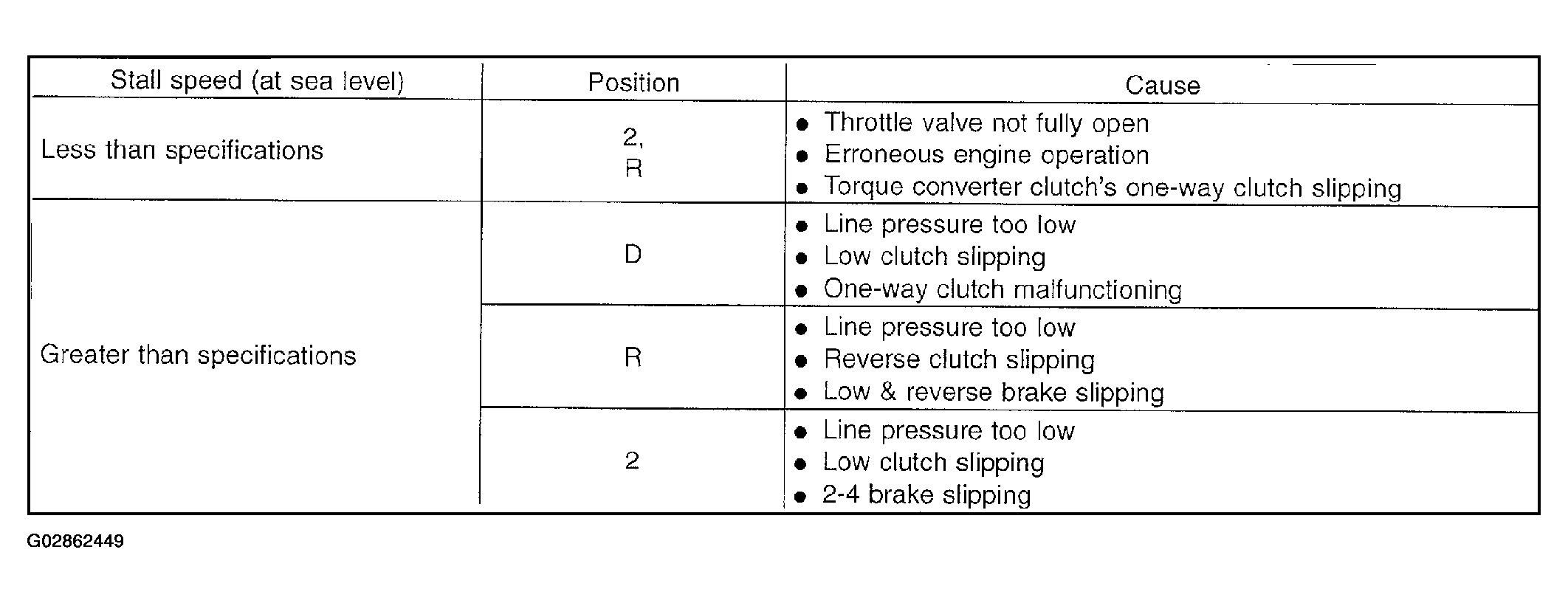

Fig 1: Stall Speed Evaluation Chart

G02862449

Courtesy of SUBARU OF AMERICA, INC.
