Diagnostic Procedures:

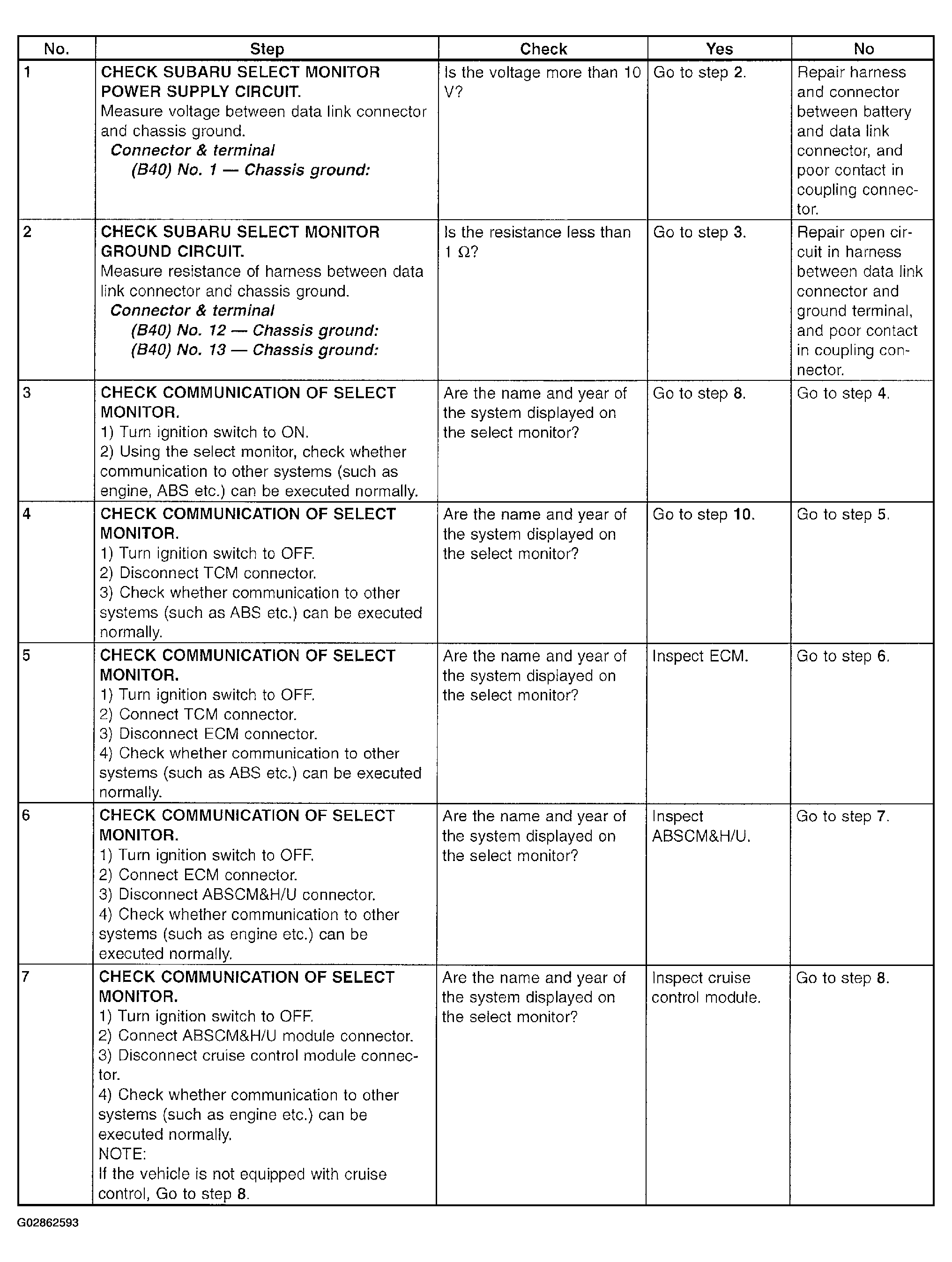

Fig 1: Communication For Initializing Impossible Diagnostic Procedure Chart (Steps 1-7)
G02862593Courtesy of SUBARU OF AMERICA, INC.

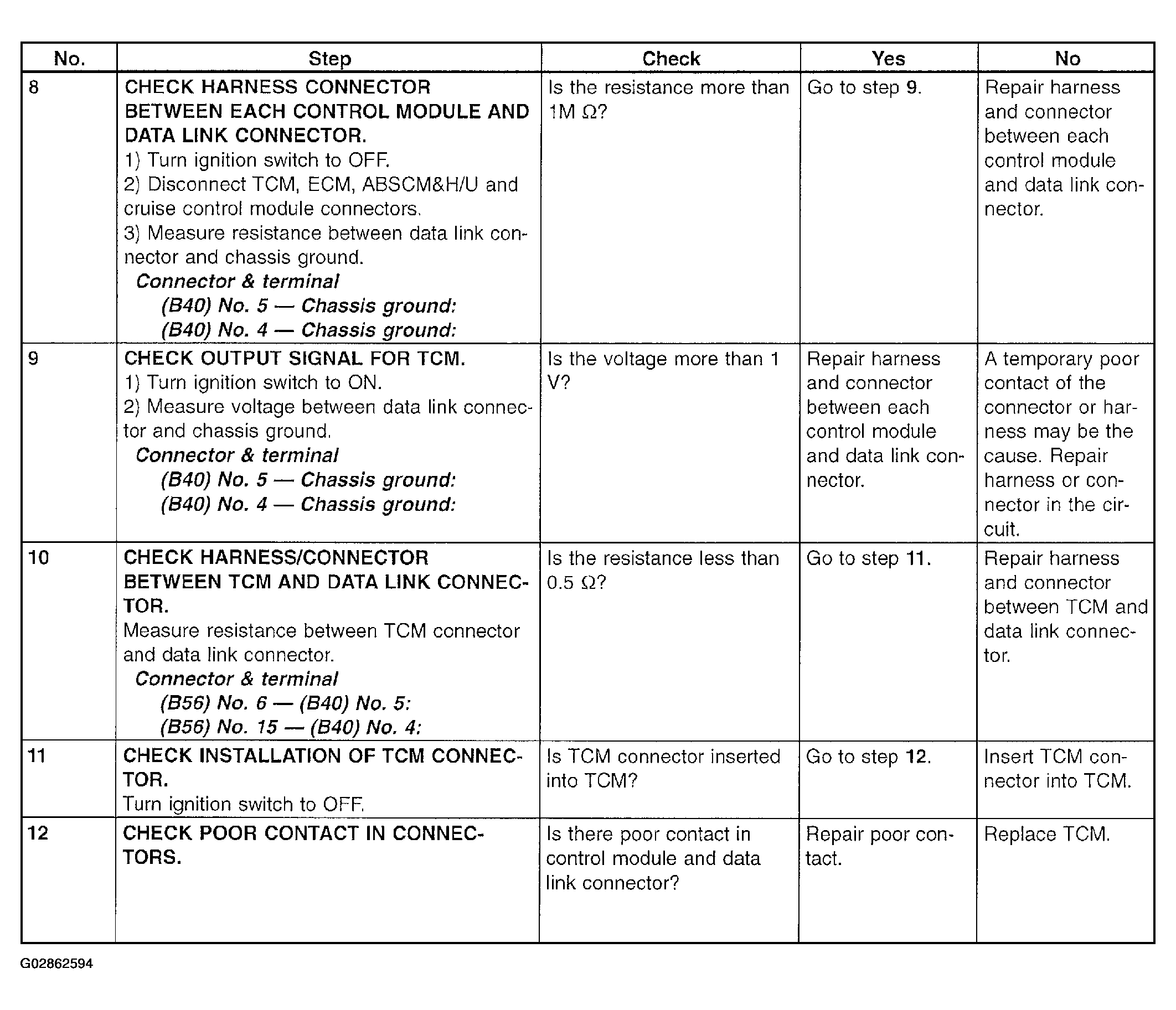

Fig 2: Communication For Initializing Impossible Diagnostic Procedure Chart (Steps 8-12)
G02862594Courtesy of SUBARU OF AMERICA, INC.
