Wheel Balancing: Inspection
- Proper wheel balance may be lost if the tire is repaired or if it wears. Check the tire for dynamic balance, and repair as necessary.
- To check for dynamic balance, use a dynamic balancer. Drive in the balance weight on both the top and rear sides of the rim.
- Some types of balancer can cause damage to the wheel. Use an appropriate balancer when adjusting the wheel balance.
- Use genuine balance weights.
CAUTION:
- 55 g (1.94 oz) weight used with aluminum wheel is not available.
- Balance weights are available for use with any of 14- to 16-inch wheels.

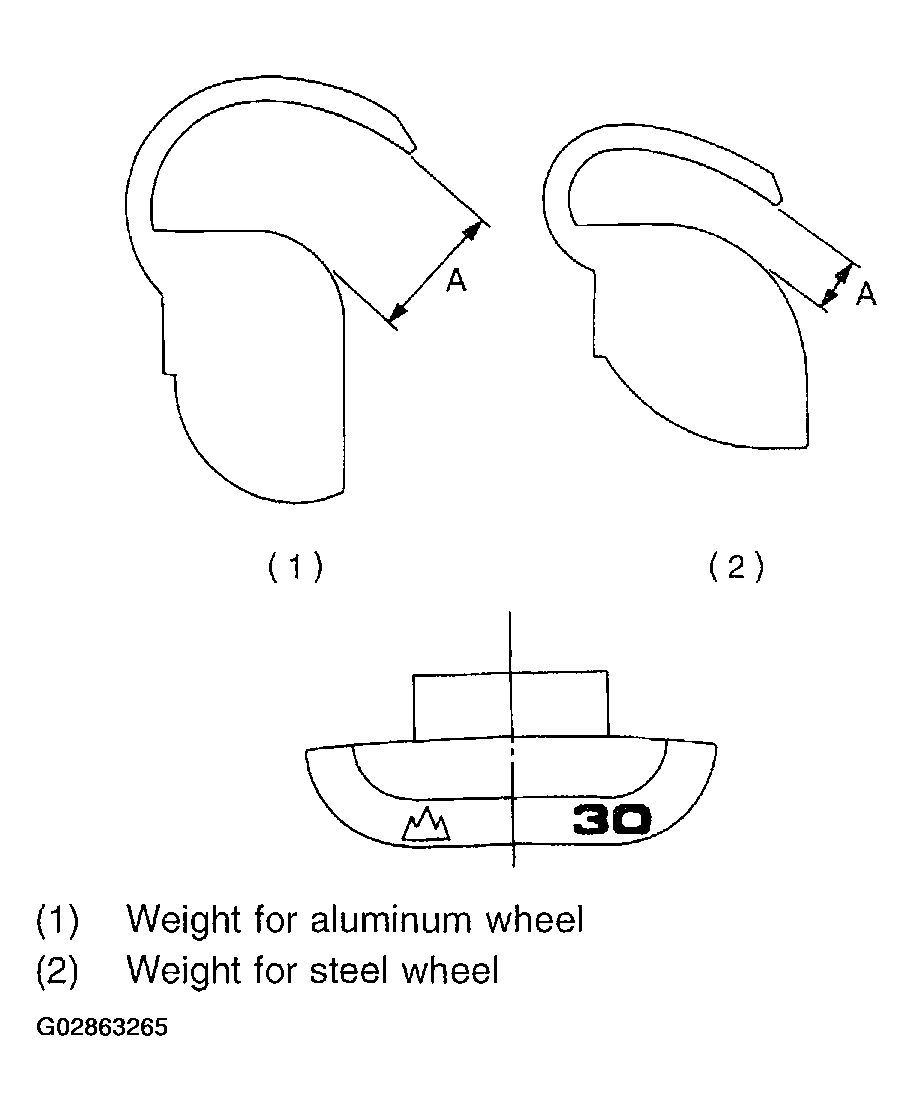

- Service limit: A
- Weight for steel wheel;
- 1.8 - 2.0 mm (0.071 - 0.079 in)
- Weight for aluminum wheel;
- 4.6 - 5.4 mm (0.181 - 0.213 in)
