Wheel And Tire System: General Description: Specifications: Notes

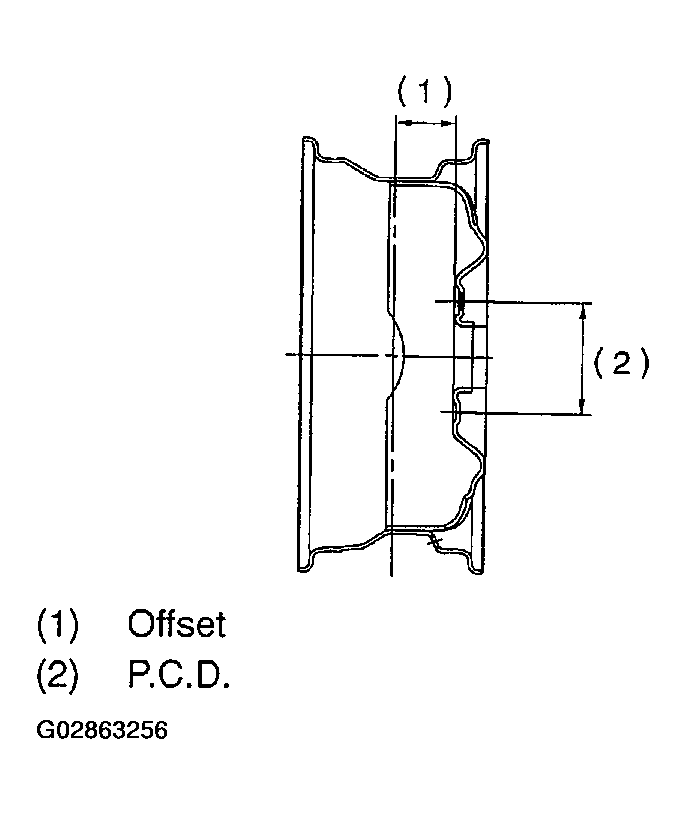

Fig 1: Identifying Dimension Of Wheel Hub

Courtesy of SUBARU OF AMERICA, INC.

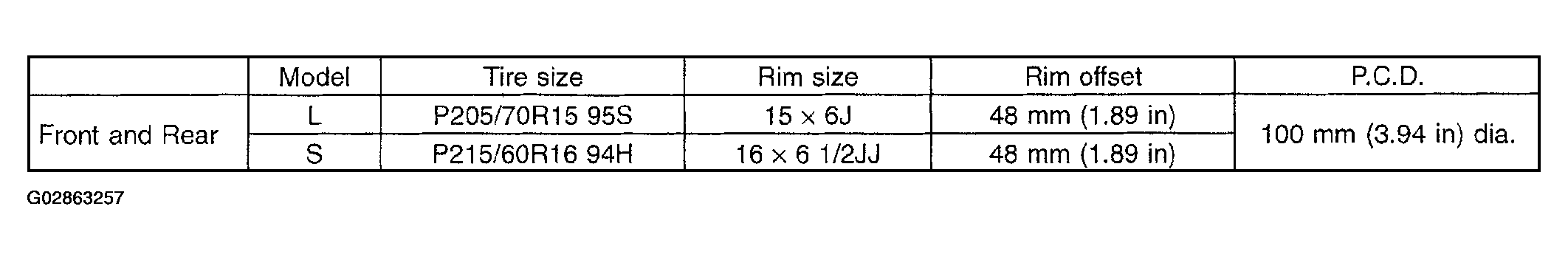

Fig 2: Identifying Specifications Of Wheel & Tire System Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Spare tires are the same for both front and rear.

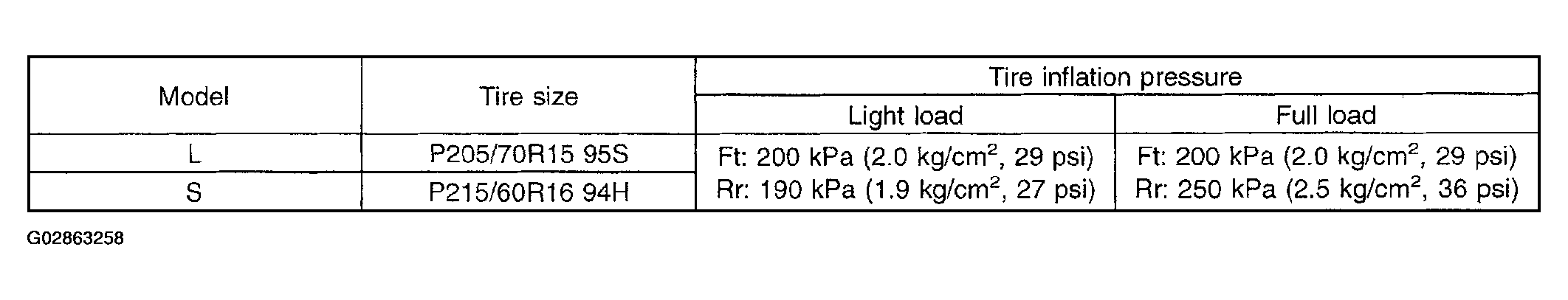

Fig 3: Identifying Tire Inflation Pressure Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE: At trailer towing, rear inflation pressure is 280 kPa (2.8 kg/cm² , 41 psi).
