Front Bushing

Using installer and remover set, press front bushing out of place. See Fig 1.

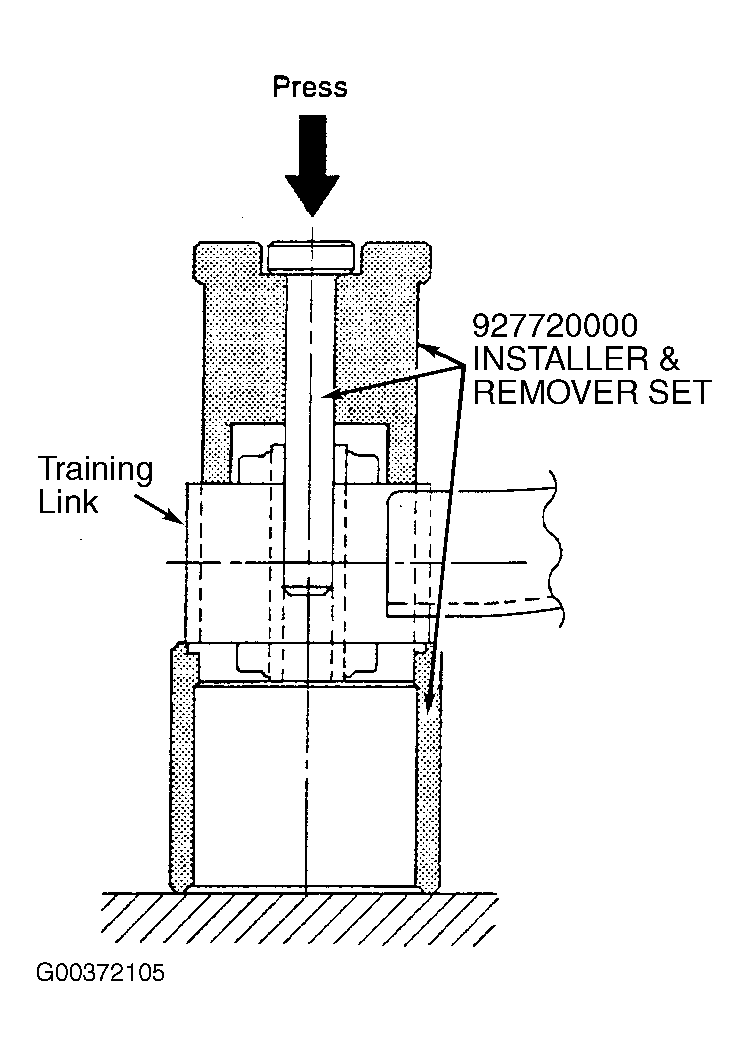

Fig 1: Pressing Front Bushing Out Of Place
G00372105Courtesy of SUBARU OF AMERICA, INC.
