Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Description

Rear Suspension: Description

For description and component location, see Fig 1.

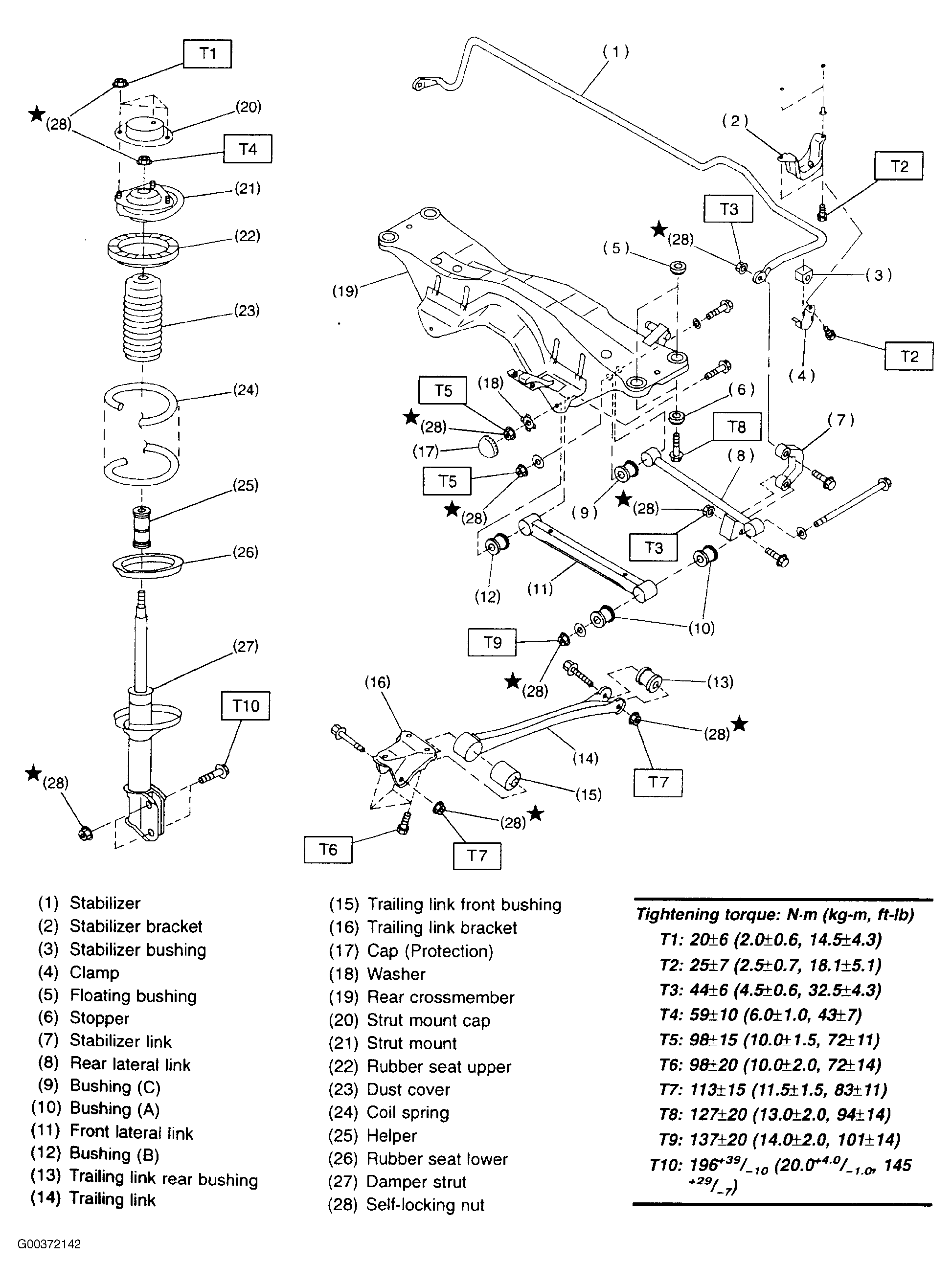

Fig 1: Exploded View Of Rear Suspension

G00372142

Courtesy of SUBARU OF AMERICA, INC.
