Master Cylinder: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Thoroughly drain brake fluid from reservoir tank.
  2. Remove snap pin, clevis pin and separate push rod of master cylinder from clutch pedal.
    Fig 1: Removing Snap Pin, Clevis Pin And Separating Push Rod Of Master Cylinder From Clutch Pedal
    G02862704Courtesy of SUBARU OF AMERICA, INC.
  3. Remove air cleaner case. Refer to REMOVAL under AIR CLEANER CASE .
  4. Remove clutch pipe from master cylinder.
  5. Remove master cylinder with reservoir tank.
CAUTION: Be extremely careful not to spill brake fluid. Brake fluid spilled on the vehicle body will harm the paint surface; wipe it off quickly if spilled.

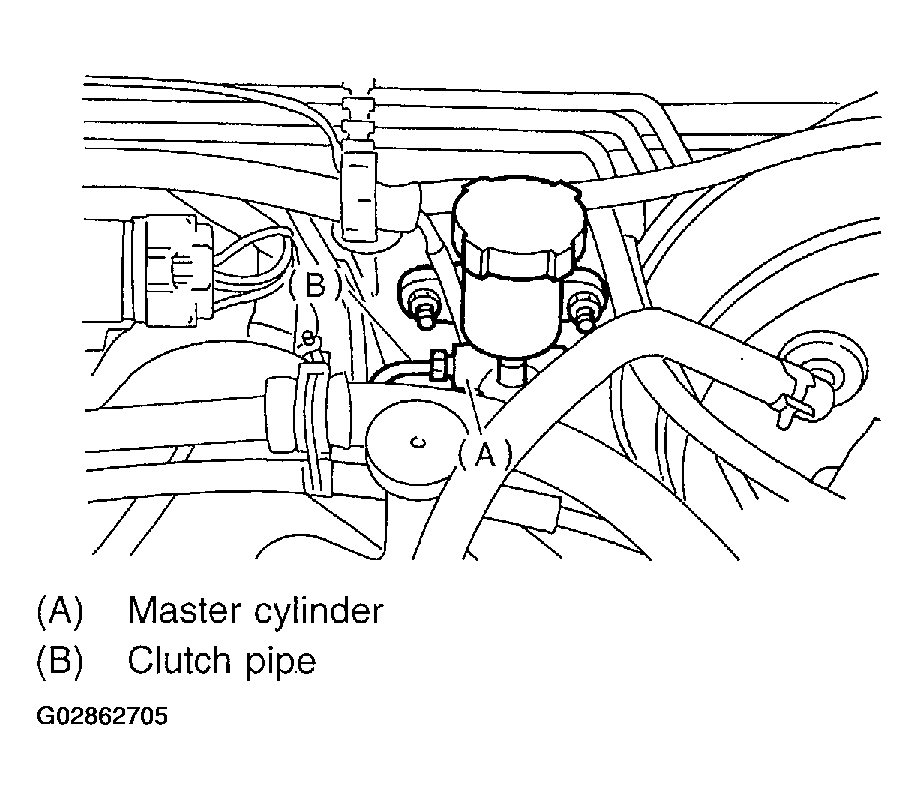

Fig 2: Removing Clutch Pipe From Master Cylinder
G02862705Courtesy of SUBARU OF AMERICA, INC.
