Clutch Fluid: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Park vehicle on a level surface.
  2. Check the clutch fluid for significant deterioration. If it is deteriorated, replace it.
  3. Inspect the fluid level using the scale on the outside of the clutch master cylinder tank. If the level is below "MIN" add clutch fluid to bring it up to "MAX".

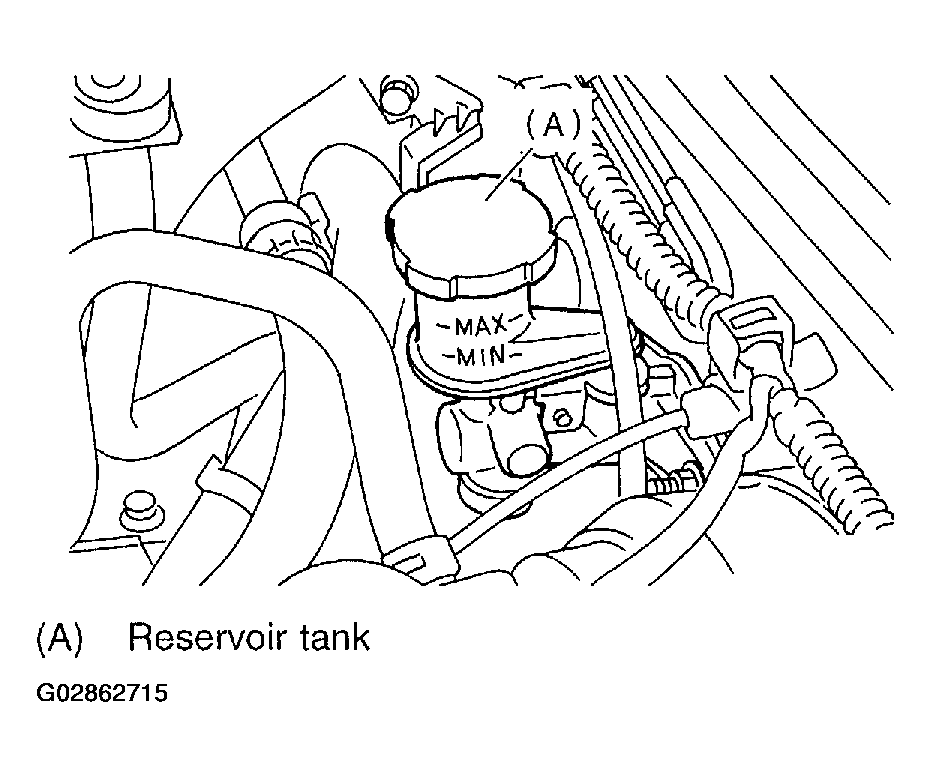

Fig 1: Identifying Reservoir Tank For Checking Clutch Fluid Level
G02862715Courtesy of SUBARU OF AMERICA, INC.
