Section 1 (Manual Transmission And Differential)
>>
General Description
>>
Component
>>
Main Shaft Assembly
Main Shaft Assembly
WARNING:
This page is about a different variant/trim than selected.

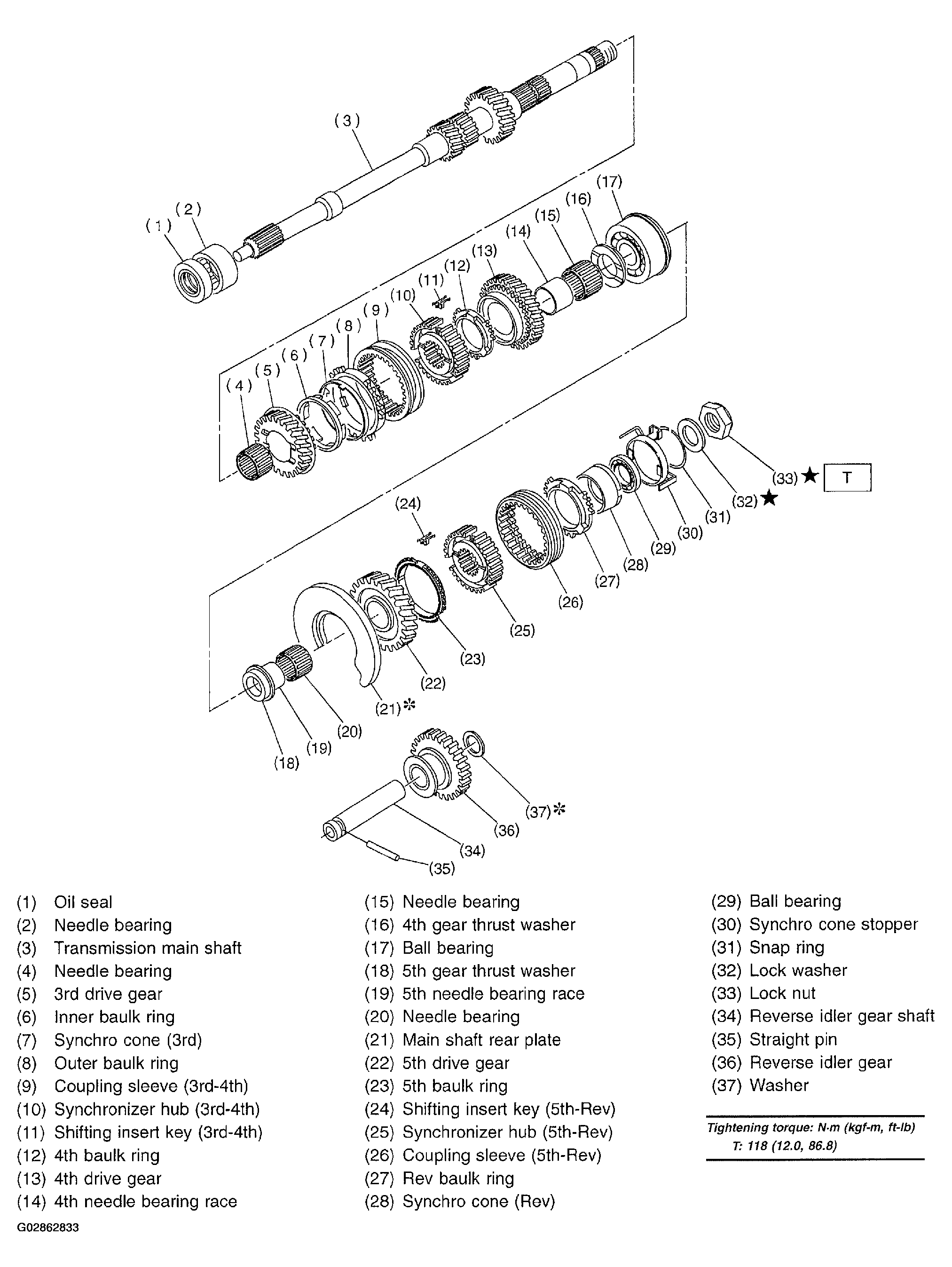

Fig 1: Identifying Main Shaft Assembly Components
Courtesy of SUBARU OF AMERICA, INC.
