Section 98 (Cooling): Thermostat: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Set the vehicle on a lift.
Lift-up the vehicle.
Remove the under cover.
Drain the engine coolant completely. Refer to DRAINING OF ENGINE COOLANT , Engine Coolant.

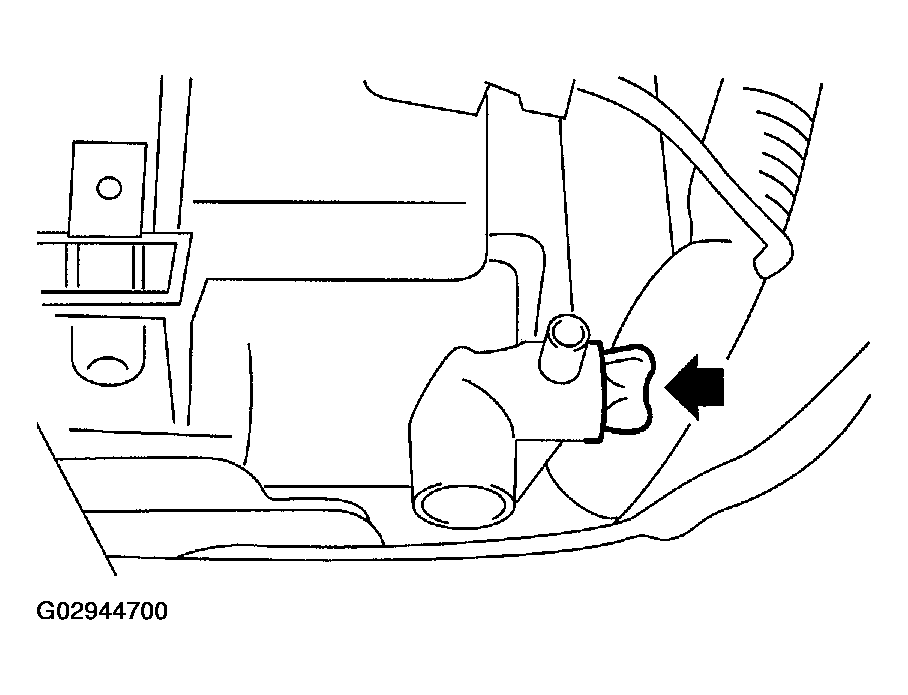

Fig 1: Removing Engine Coolant
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose from thermostat cover.

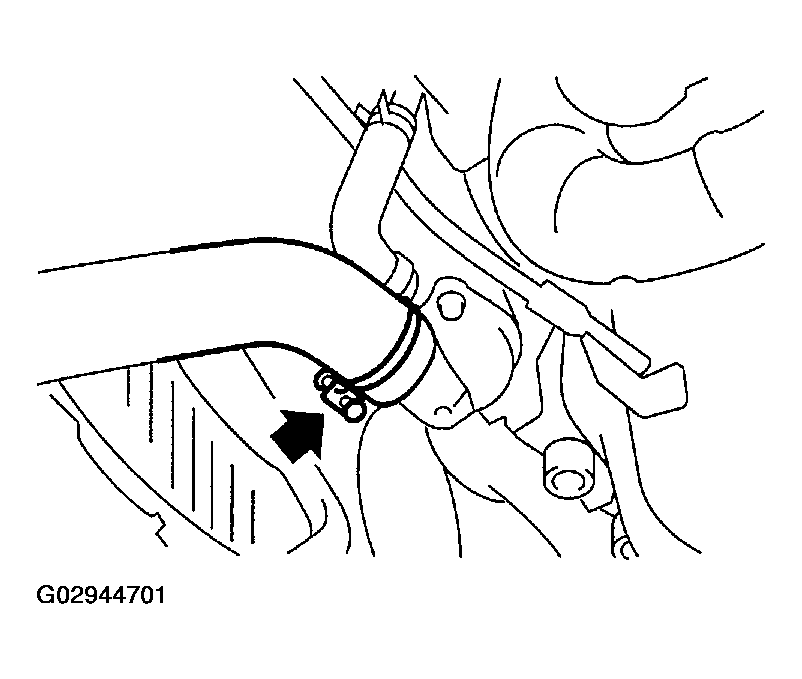

Fig 2: Disconnecting Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the thermostat cover and gasket, and pull out the thermostat.

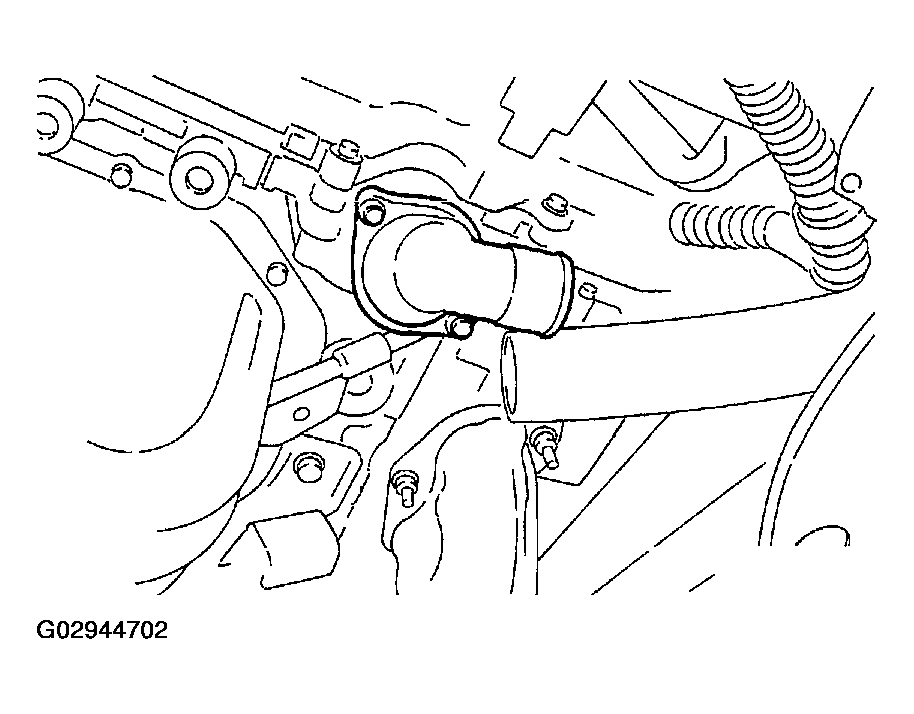

Fig 3: Removing Thermostat Cover At Gasket
Courtesy of SUBARU OF AMERICA, INC.
