Valve Rocker Assembly: Installation

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Installation of valve rocker assembly
    1. Temporarily tighten the bolts (a) through (d) equally as shown in the figure.
      NOTE: Do not allow the valve rocker assembly to gouge knock pins.
    2. Tighten the bolts (e) through (h) to specified torque.
    3. Tighten the bolts (a) through (d) to specified torque.

    Tightening torque:

    1. 25 N.m (2.5 kgf-m, 18.1 ft-lb)

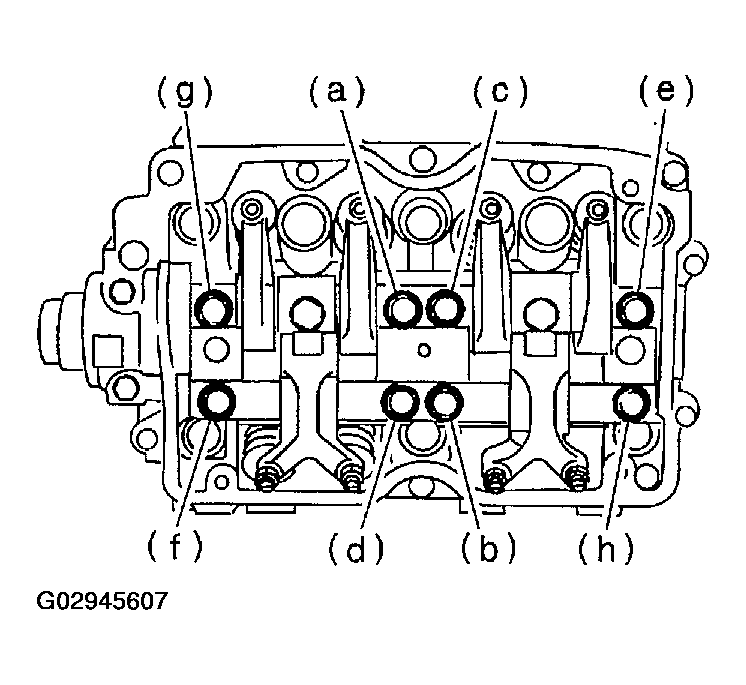

    Fig 1: Tightening Bolts Through Specified Torque
    G02945607Courtesy of SUBARU OF AMERICA, INC.
  2. Adjust the valve clearances. Refer to ADJUSTMENT , Valve Clearance.
  3. Install the rocker cover and connect PCV hose.
  4. Install the camshaft sprocket. Refer to INSTALLATION , Camshaft Sprocket.
  5. Install the timing belt assembly. Refer to INSTALLATION , Timing Belt Assembly.
  6. Install the belt cover. Refer to INSTALLATION , Belt Cover.
  7. Install the crankshaft pulley. Refer to INSTALLATION , Crankshaft Pulley.
  8. Install the V-belt. Refer to INSTALLATION , V-belt.
