Air Intake Duct: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt (A) which installs air intake duct A on the front side of body.
  2. Remove the clip (B) which connects air intake duct A to resonator chamber.
  3. Remove the air intake duct A.

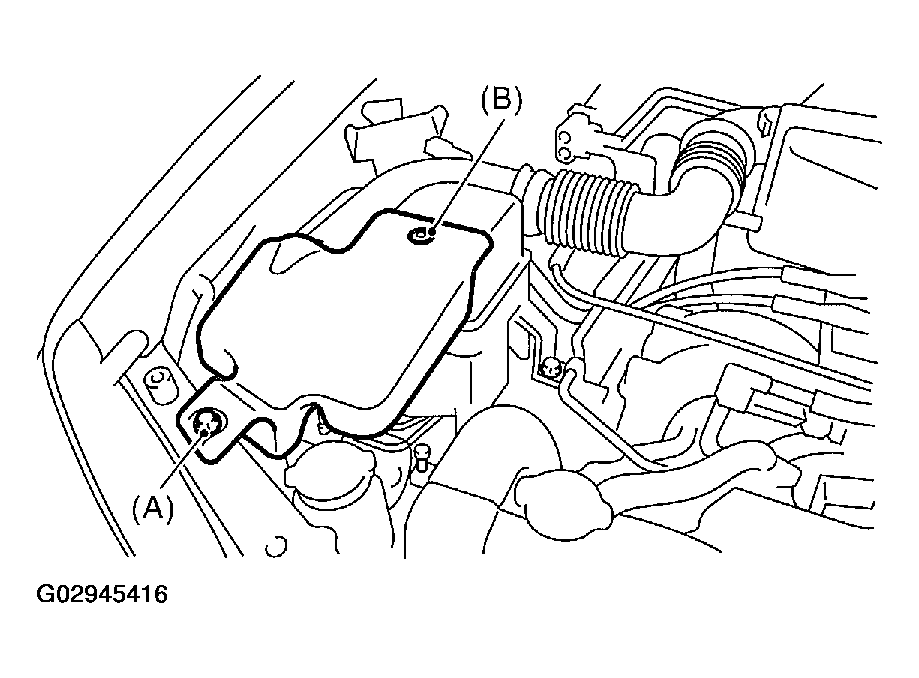

    Fig 1: Identifying Air Intake Duct Clip & Bolt
    G02945416Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air intake duct B from resonator chamber and air cleaner case.

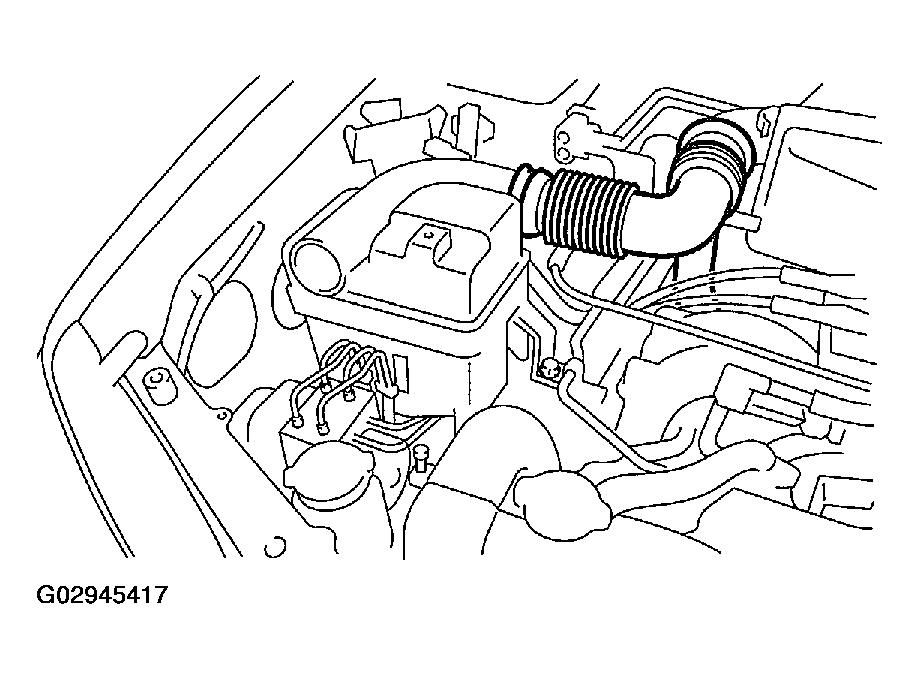

    Fig 2: Identifying Air Intake Duct (B)
    G02945417Courtesy of SUBARU OF AMERICA, INC.
