Air Cleaner Element: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air intake duct from air cleaner case.
  2. Remove the bolt (A) which secures air cleaner case to stay.
  3. Remove the clip (B) above the air cleaner case.

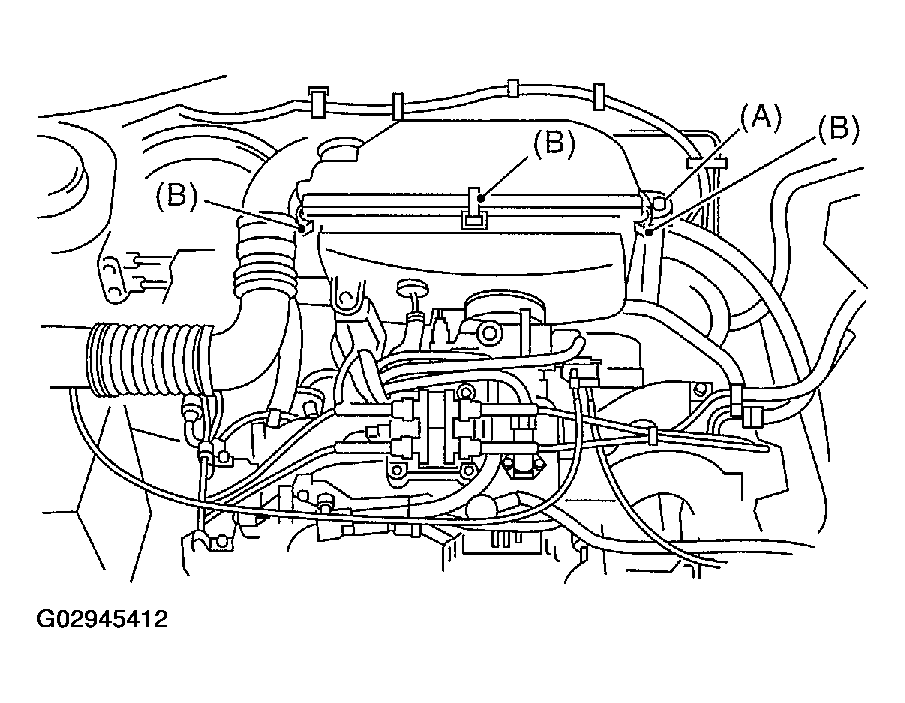

    Fig 1: Removing Air Cleaner Element Clip & Bolt
    G02945412Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air cleaner element.
