Oil Pump: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover.
Remove the bolts which install water pipe of oil cooler to oil pump. (Turbo model)

Fig 2: Removing Bolts Which Installs Water Pipe Of Oil Cooler To Oil Pump (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.

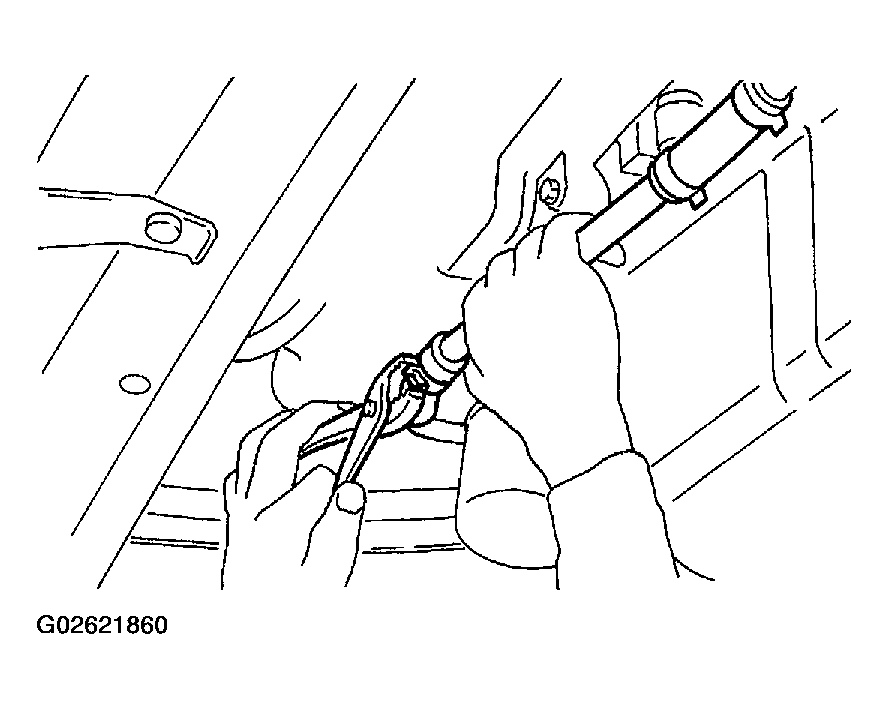

Remove the water pipe and hoses between oil cooler and water pump. (Turbo model)

Fig 3: Removing Water Pipe & Hoses Between Oil Cooler & Water Pump (Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator, see REMOVAL , Radiator.

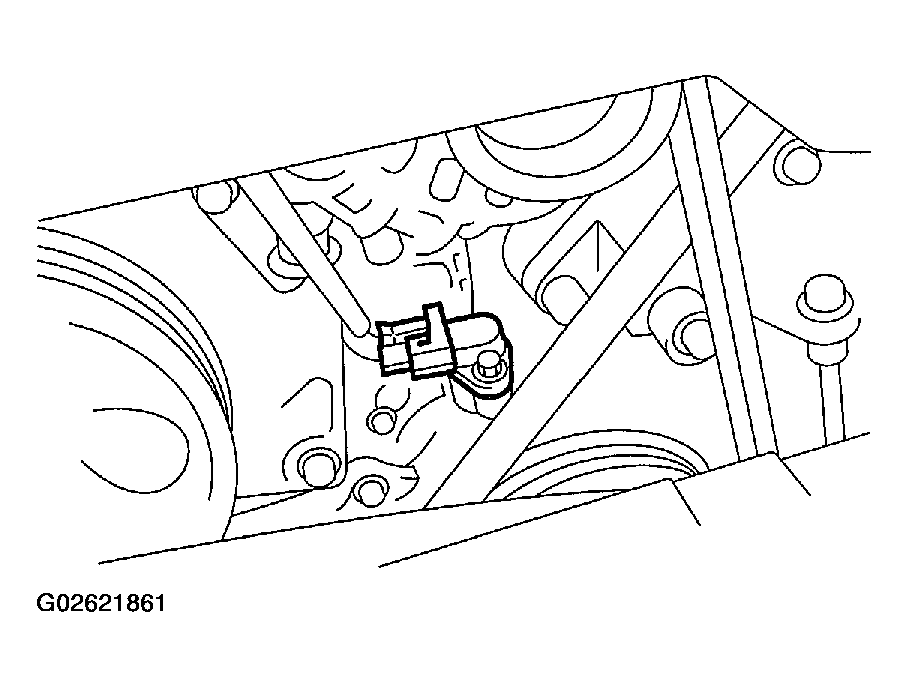

Remove the crankshaft position sensor.

Fig 4: Removing Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belts.
For SOHC, see REMOVAL , V-belt.

For DOHC, see REMOVAL , V-belt.

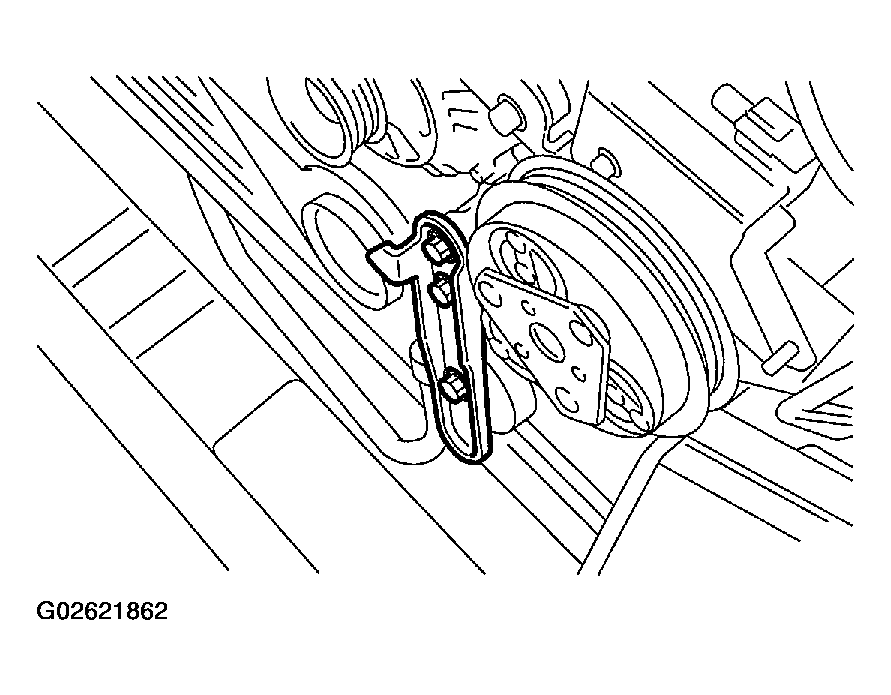

Remove the rear side V-belt tensioner.

Fig 5: Removing Rear Side V-Belt Tensioner
Courtesy of SUBARU OF AMERICA, INC.

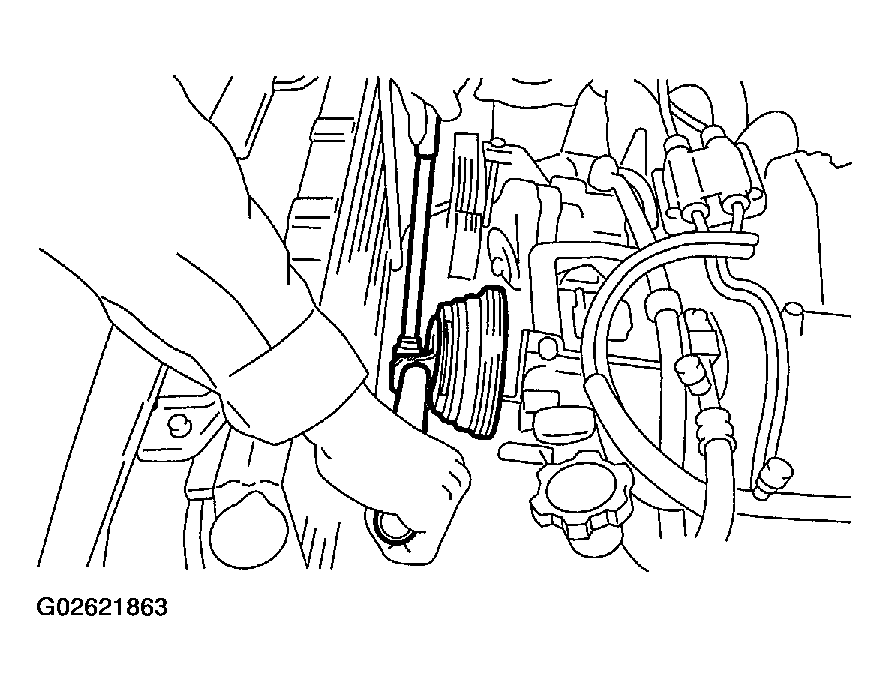

Remove the crankshaft pulley by using ST.
ST 499977400 CRANKSHAFT PULLEY WRENCH (2000 cc model)

ST 499977100 CRANKSHAFT PULLEY WRENCH (2500 cc model)

Fig 6: Removing Crankshaft Pulley Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the water pump, see REMOVAL , Water Pump.

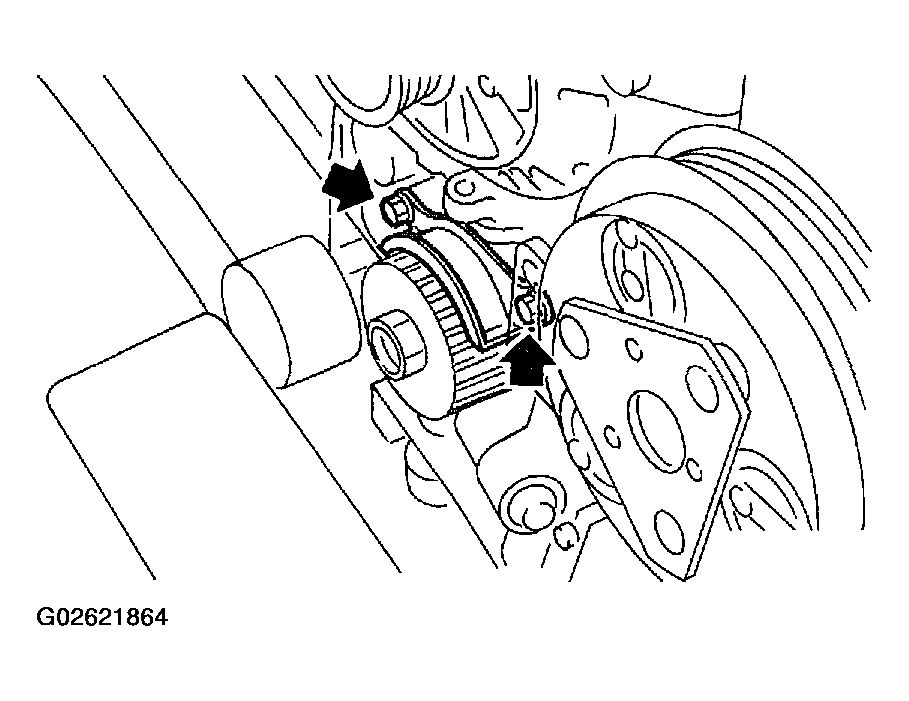

Remove the timing belt guide. (MT vehicles)

Fig 7: Removing Timing Belt Guide (MT Vehicles)
Courtesy of SUBARU OF AMERICA, INC.

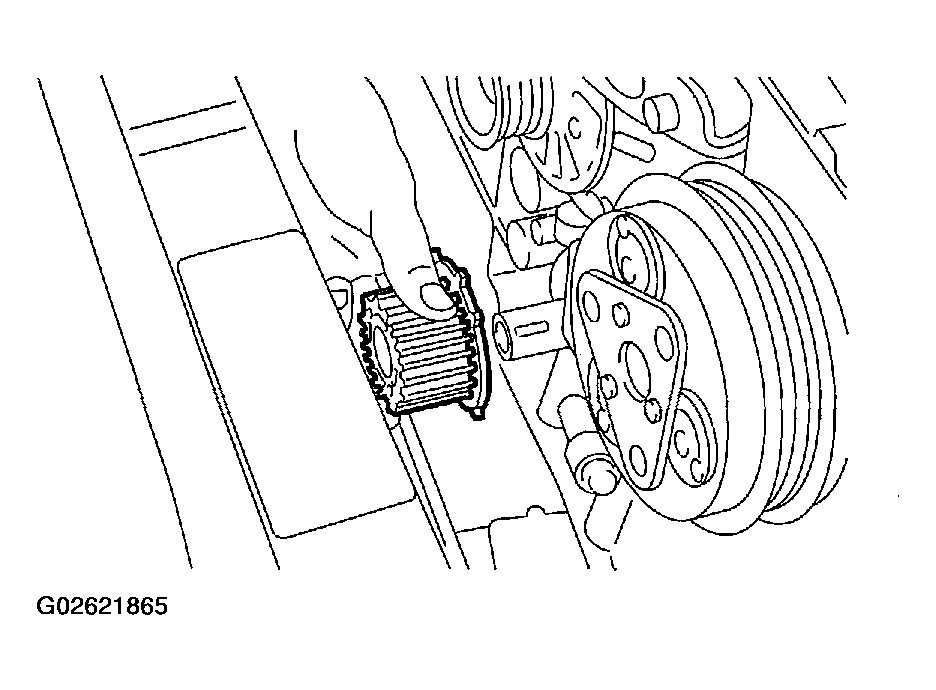

Remove the crankshaft sprocket.

Fig 8: Removing Crankshaft Sprocket
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install oil pump onto cylinder block.

Fig 9: Removing Bolts Which Installs Oil Pump Onto Cylinder Block
Courtesy of SUBARU OF AMERICA, INC.

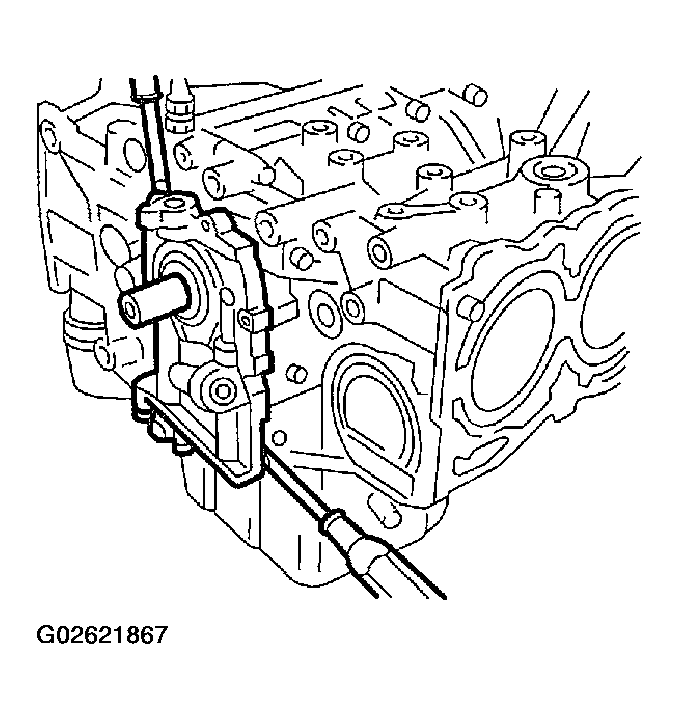

Remove the oil pump by using a flat tip screwdriver.
CAUTION: Be careful not to scratch the mating surfaces of cylinder block and oil pump.

Fig 10: Removing Oil Pump Using Flat Tip Screwdriver
Courtesy of SUBARU OF AMERICA, INC.
