Oil Pressure Switch: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator from bracket, see REMOVAL , Generator.
  2. Disconnect the terminal from oil pressure switch.
    Fig 1: Disconnecting Terminal From Oil Pressure Switch
    G02621901Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil pressure switch.

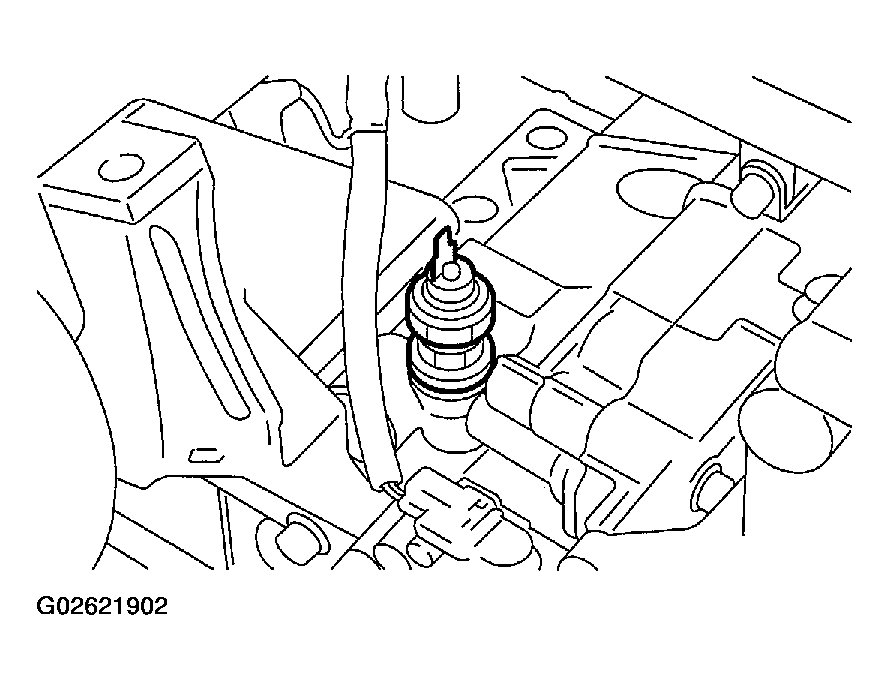

    Fig 2: Removing Oil Pressure Switch
    G02621902Courtesy of SUBARU OF AMERICA, INC.
