Engine Oil Cooler: Installation

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The engine oil cooler is installed on turbo models only.

Install in the reverse order of removal.
Tightening torque:
1. T: 54 N.m (5.5 kgf.m, 40 ft.lb)
  NOTE: Use new O-rings.

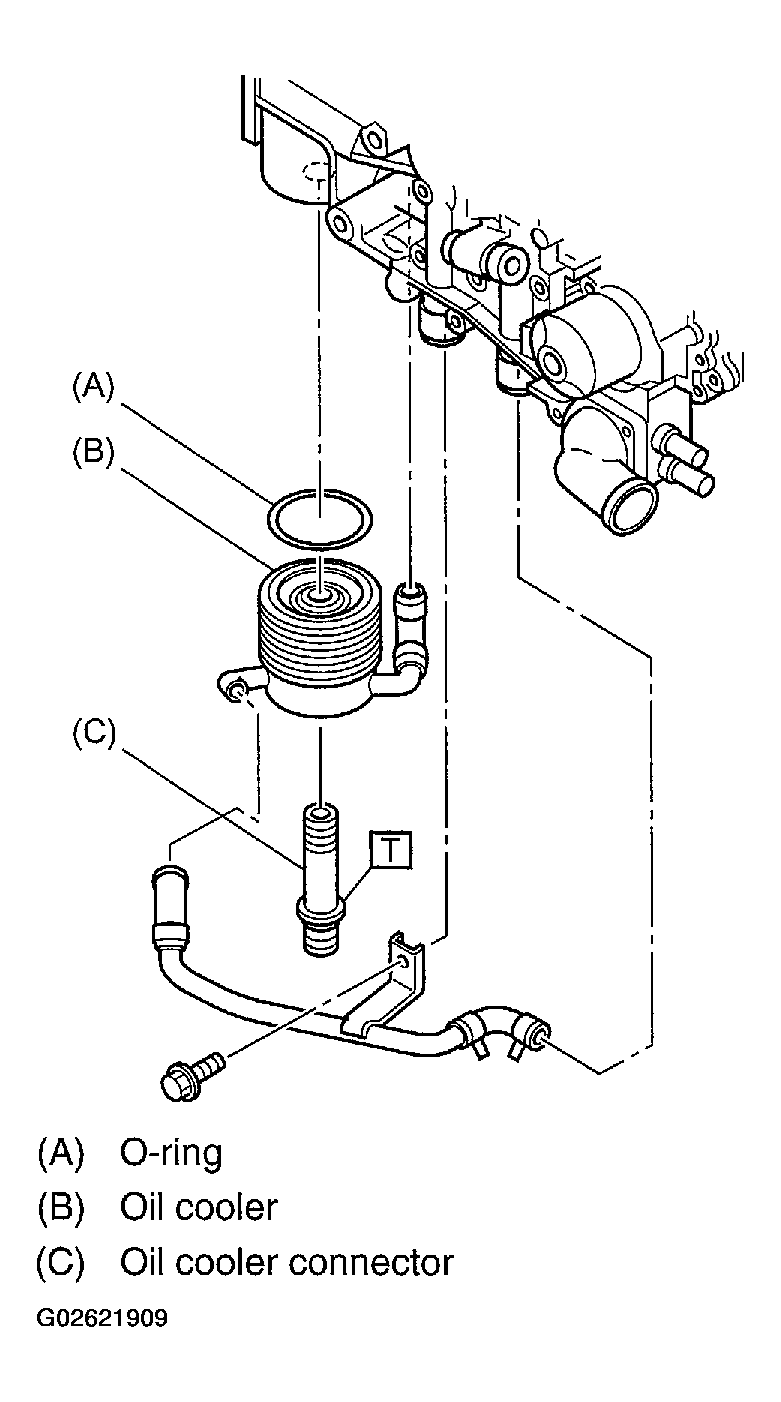

  Fig 1: Installing Engine Oil Cooler (Turbo Models Only)
  Courtesy of SUBARU OF AMERICA, INC.
