Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator, see REMOVAL , Radiator.
  2. Remove the V-belts, see REMOVAL , V-belt.
  3. Remove the timing belt, see REMOVAL , Timing Belt Assembly.
  4. Remove the automatic belt tension adjuster (A).
  5. Remove the belt idler (B).
  6. Remove the belt idler No. 2 (C).

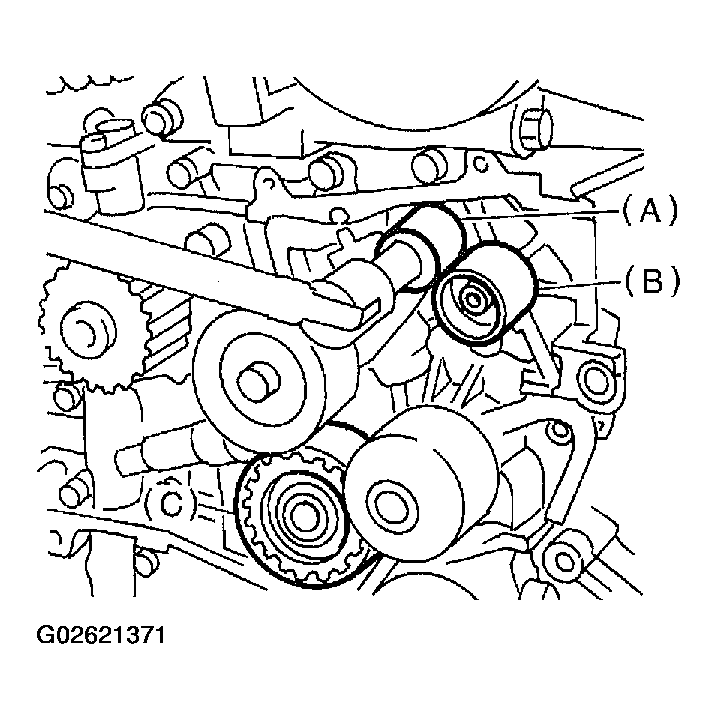

    Fig 1: Removing Automatic Belt Tension Adjuster
    G02621371Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the camshaft position sensor, see REMOVAL & INSTALLATION , Camshaft Position Sensor.
  8. Remove the left-hand camshaft sprockets by using ST.

    ST 18231AA010 CAMSHAFT SPROCKET WRENCH (Intake)

    ST 499207400 CAMSHAFT SPROCKET WRENCH (Exhaust)

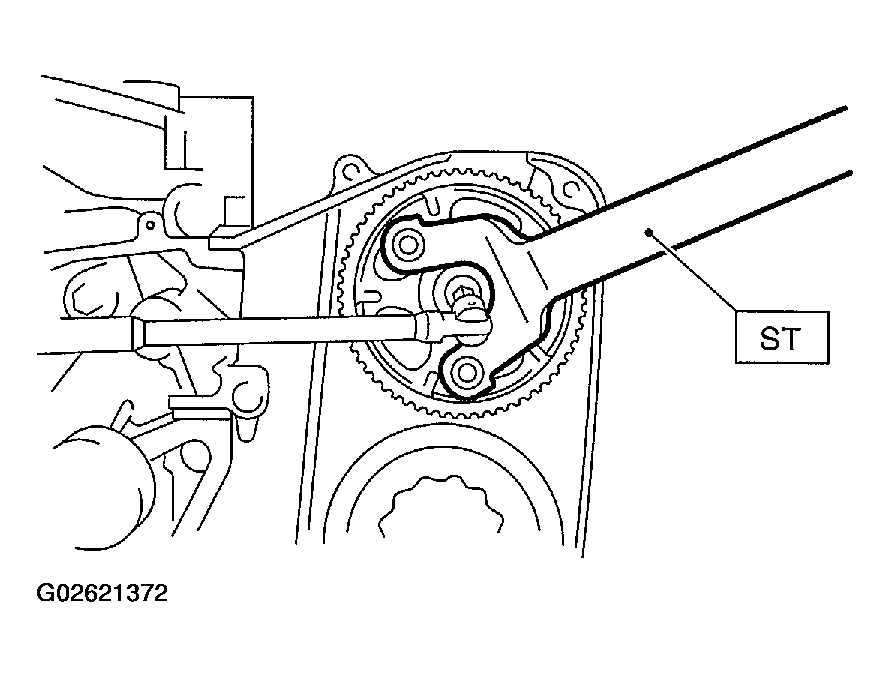

    Fig 2: Removing Left-Hand Camshaft Sprockets Using ST
    G02621372Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the left-hand belt cover No. 2.

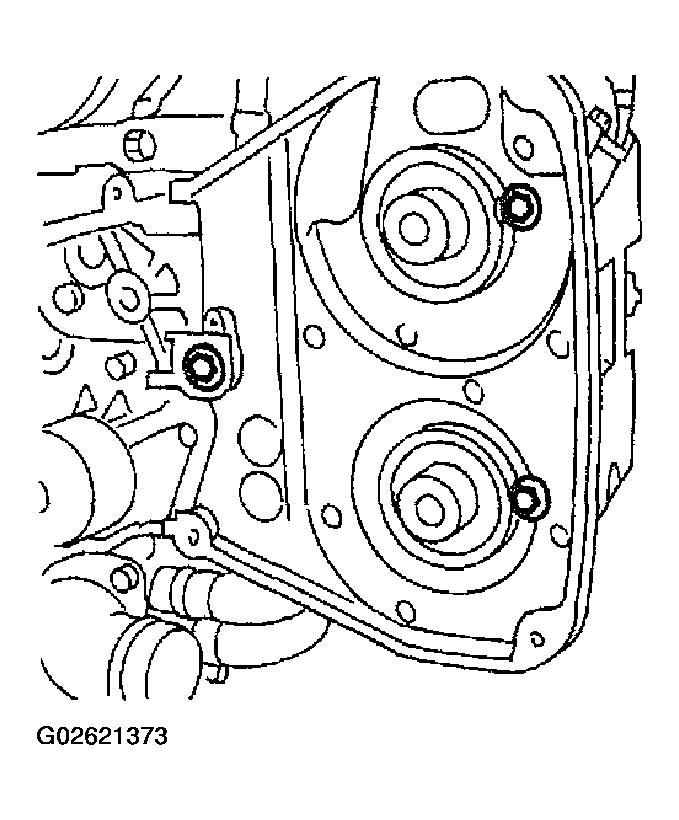

    Fig 3: Removing Left-Hand Belt Cover No. 2
    G02621373Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the tensioner bracket.

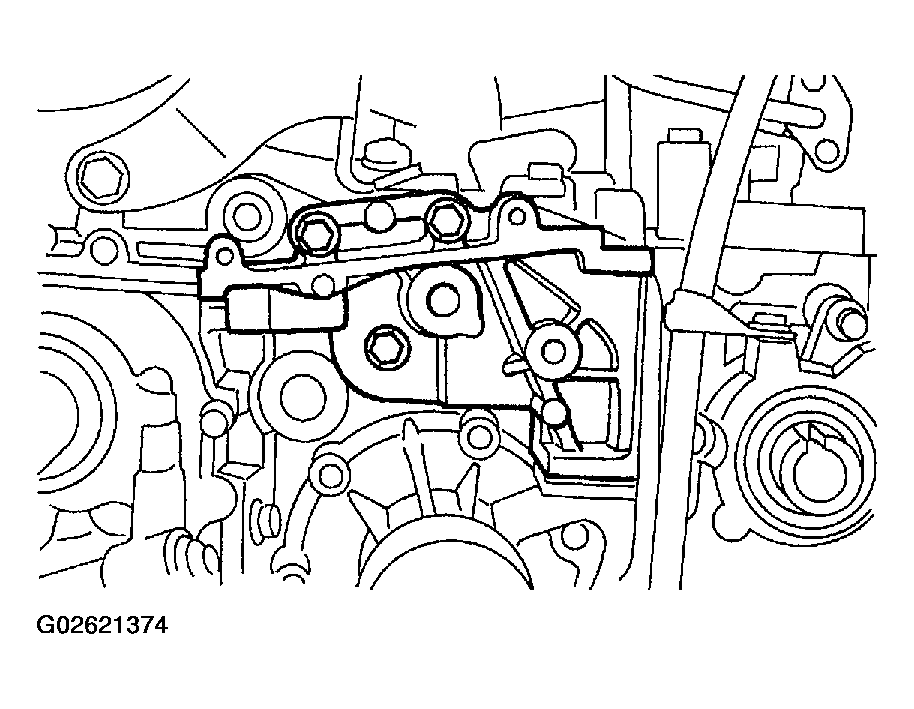

    Fig 4: Removing Tensioner Bracket
    G02621374Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect the heater hose from the water pump.
  12. Remove the water pump.

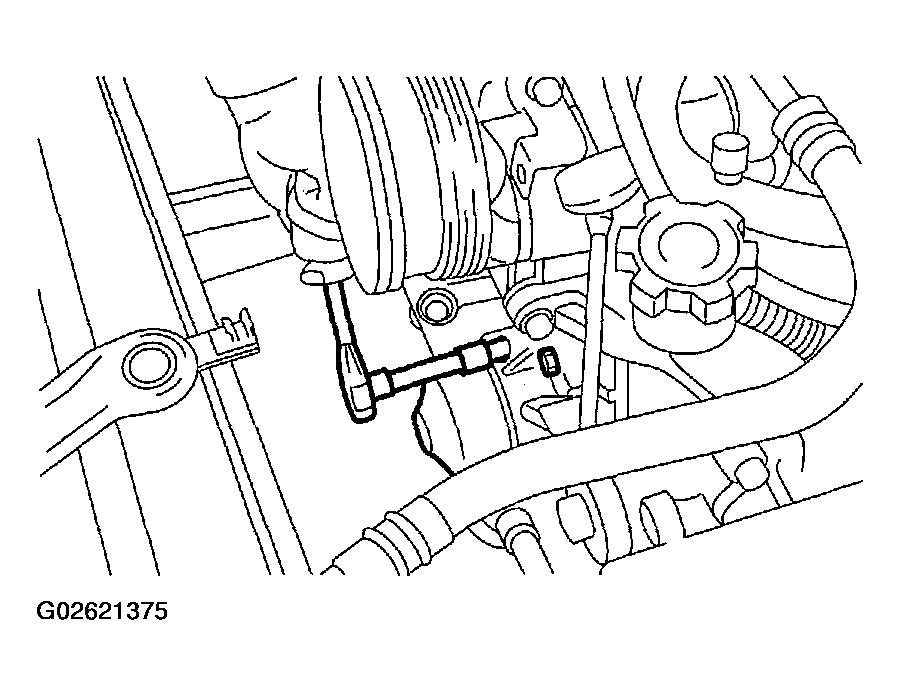

    Fig 5: Removing Water Pump
    G02621375Courtesy of SUBARU OF AMERICA, INC.
