Non-Turbo Model

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator, see REMOVAL , Radiator.
Remove V-belts, see REMOVAL , V-belt.
Remove the timing belt, see TIMING BELT , REMOVAL, Timing Belt.
Remove the automatic belt tension adjuster.

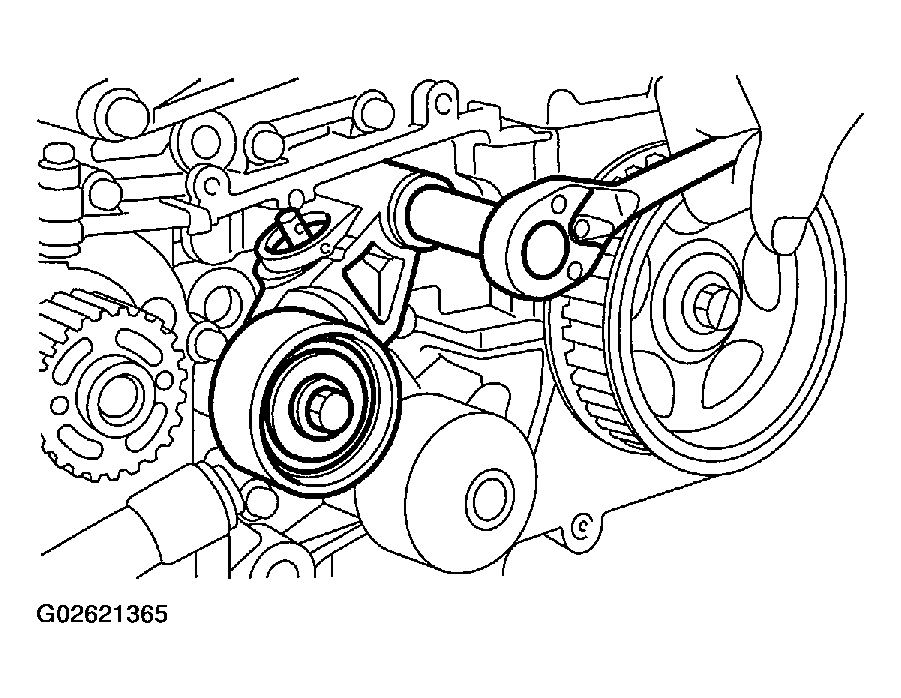

Fig 1: Removing Automatic Belt Tension Adjuster
Courtesy of SUBARU OF AMERICA, INC.
Remove the belt idler No. 2.

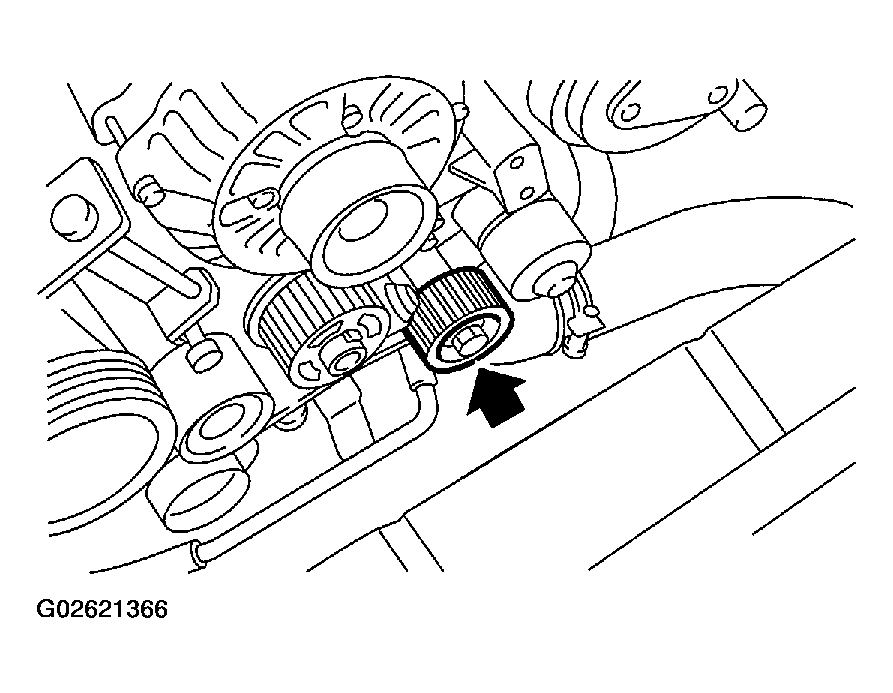

Fig 2: Removing Belt Idler No. 2
Courtesy of SUBARU OF AMERICA, INC.
Remove the left-hand camshaft sprocket by using ST.
ST 18231AA010 CAMSHAFT SPROCKET WRENCH

NOTE: Also the CAMSHAFT SPROCKET WRENCH (499207100) can be used.

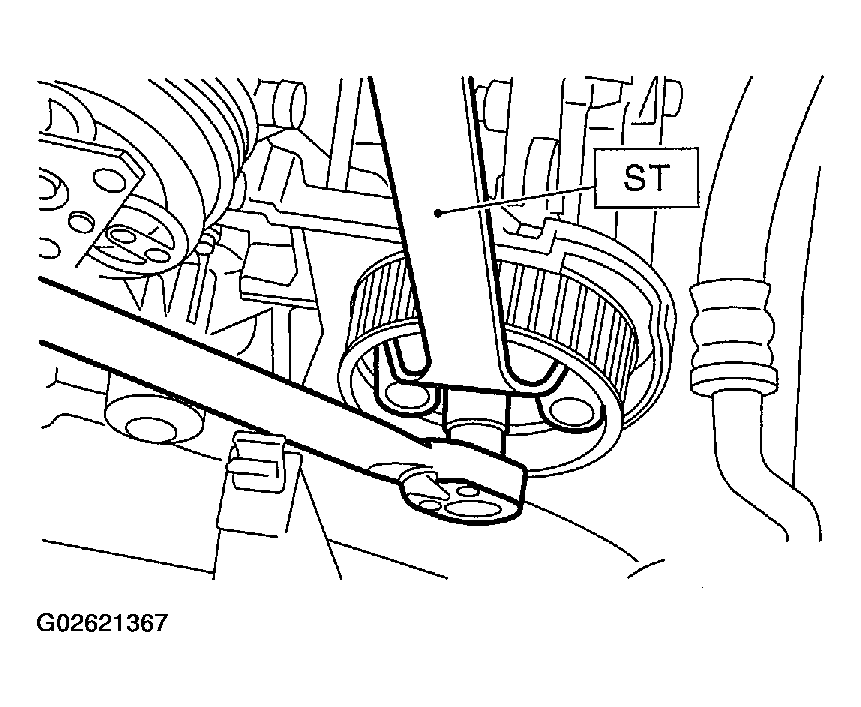

Fig 3: Removing Left-Hand Camshaft Sprocket Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the left-hand belt cover No. 2.

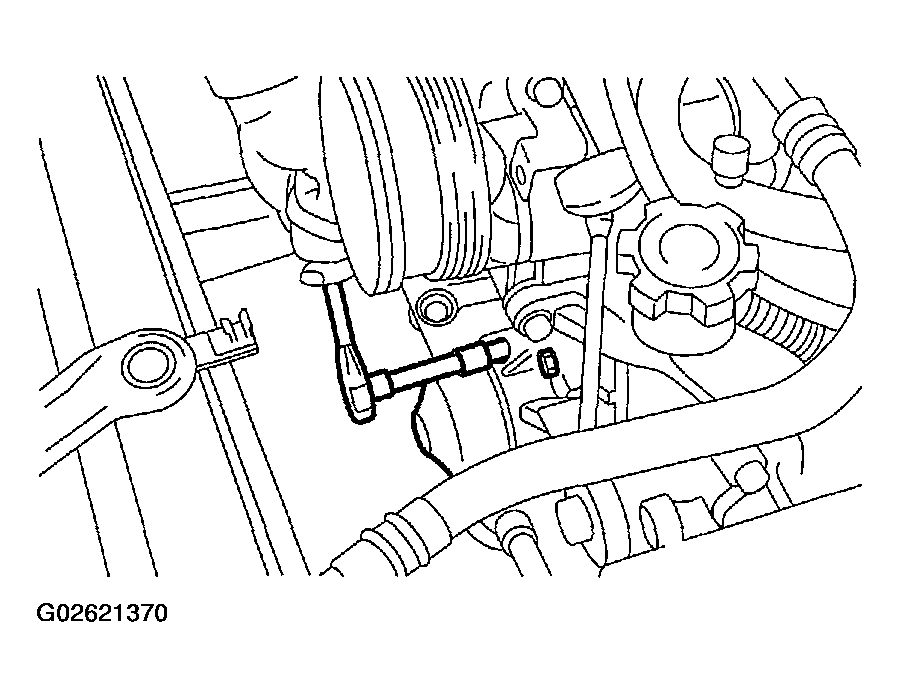

Fig 4: Removing Left-hand Belt Cover No. 2
Courtesy of SUBARU OF AMERICA, INC.
Remove the tensioner bracket.

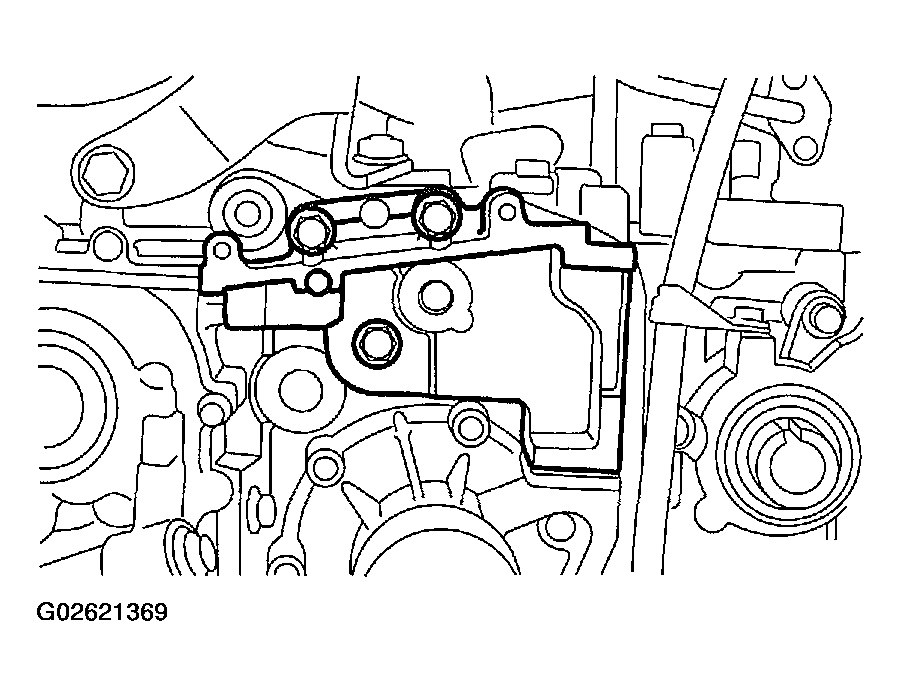

Fig 5: Removing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the heater hose from the water pump.
Remove the water pump.

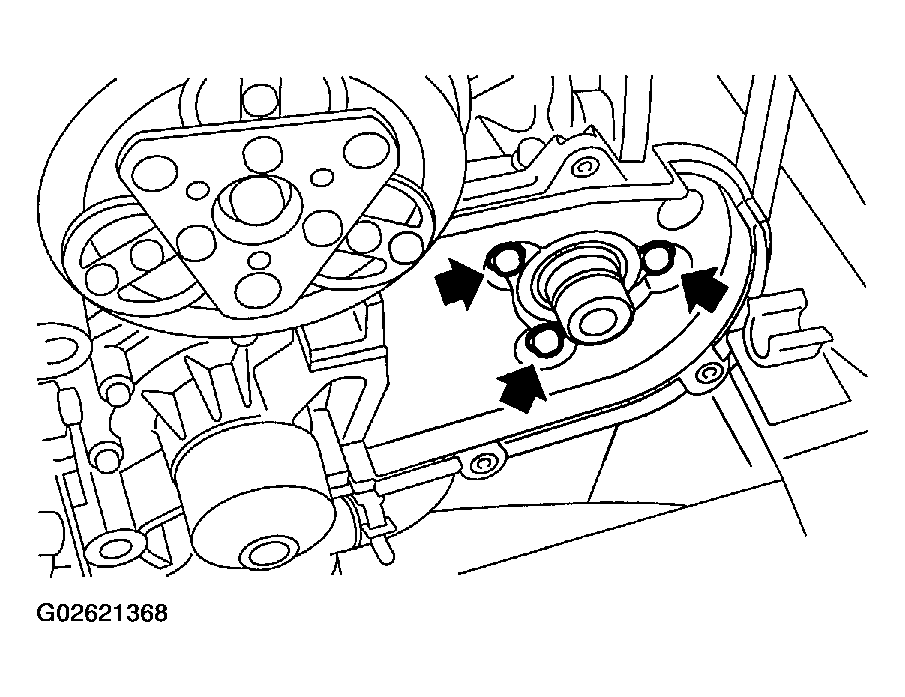

Fig 6: Removing Water Pump
Courtesy of SUBARU OF AMERICA, INC.
