Trouble Symptom:

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engine coolant temperature is above 90°C (194°F)
  2. A/C is ON

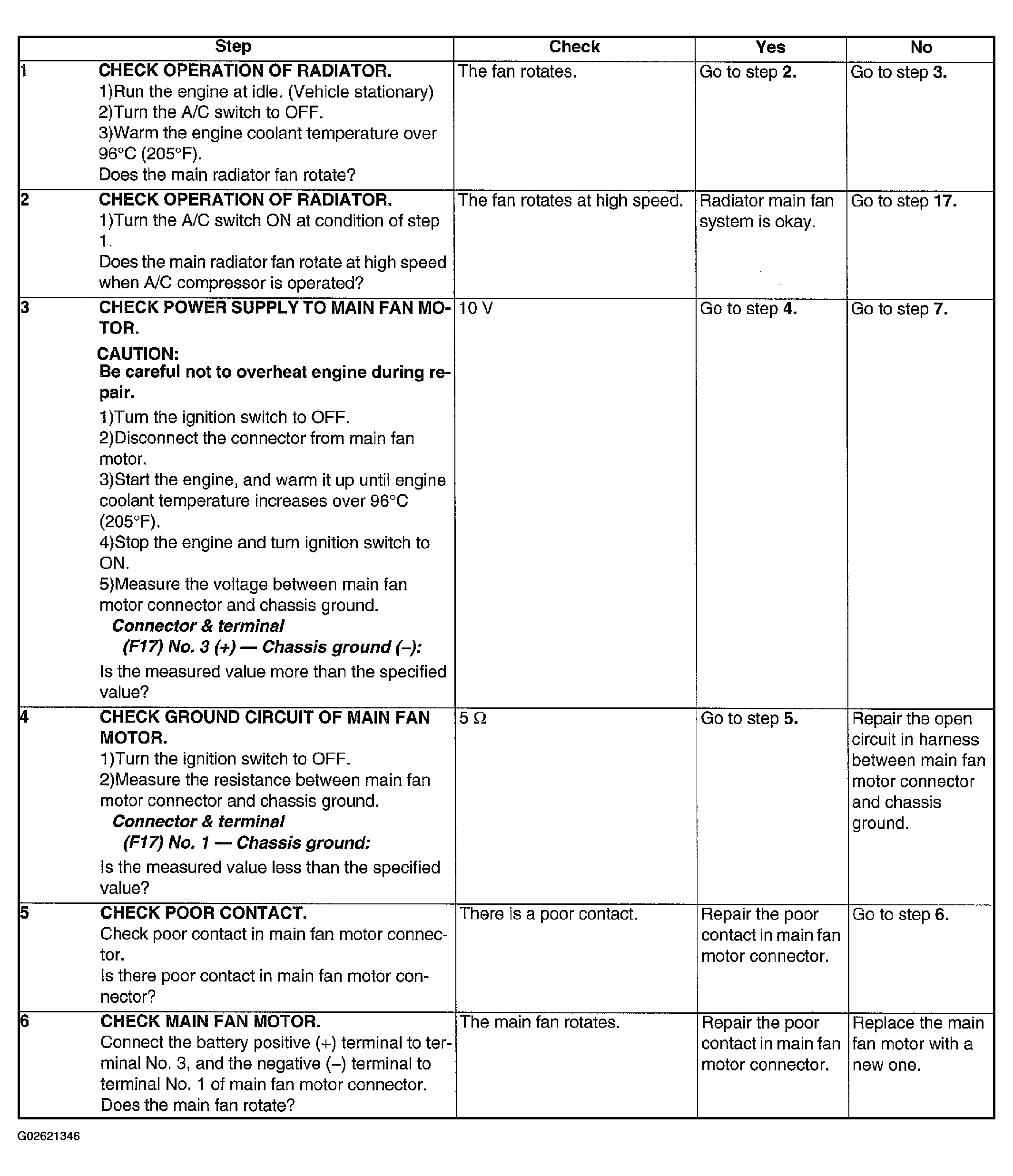

Fig 1: Radiator Main Fan Does Not Rotate Inspection (Turbo Model) (1 Of 5)
G02621346Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Radiator Main Fan Does Not Rotate Inspection (Turbo Model) (2 Of 5)
G02621347Courtesy of SUBARU OF AMERICA, INC.

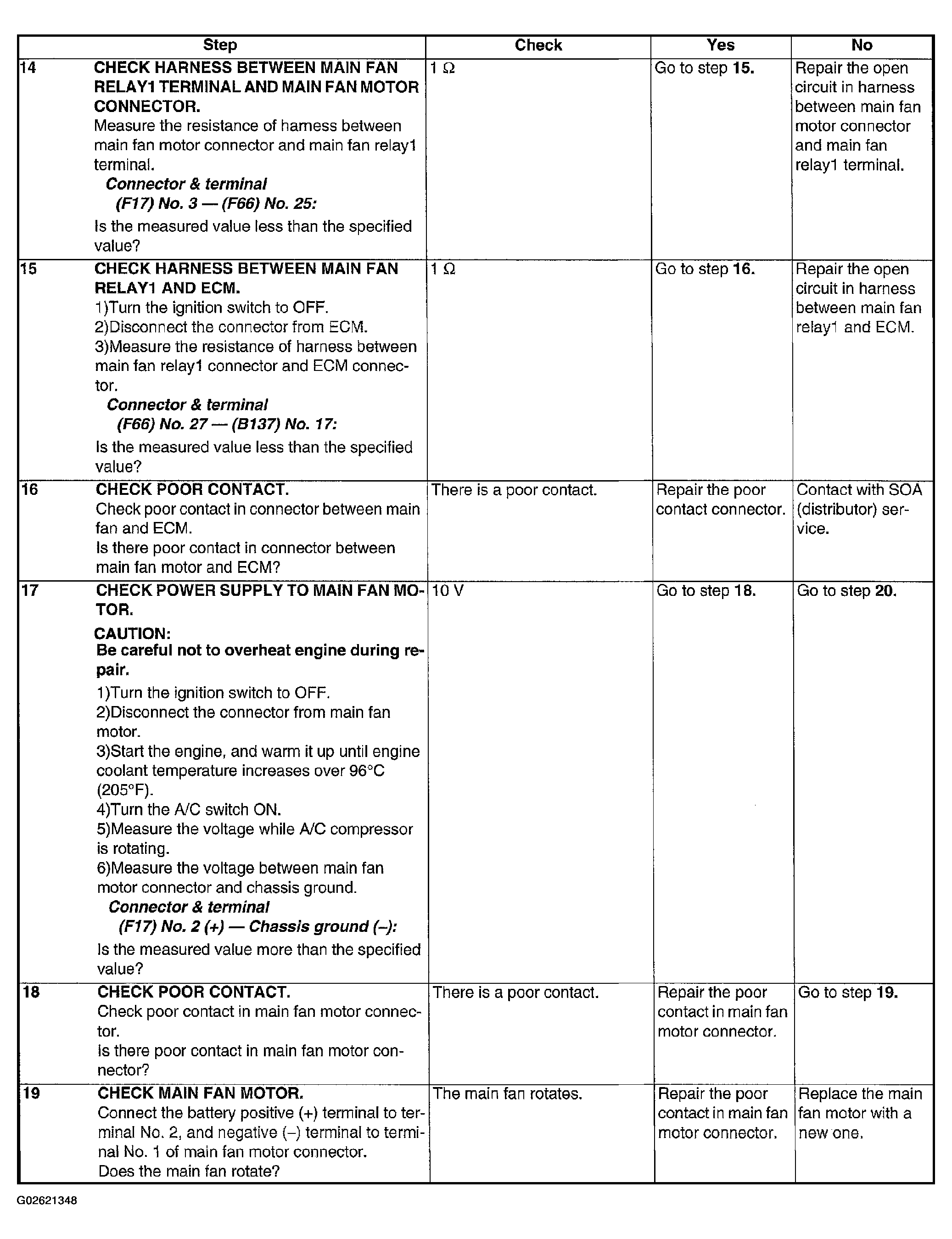

Fig 3: Radiator Main Fan Does Not Rotate Inspection (Turbo Model) (3 Of 5)
G02621348Courtesy of SUBARU OF AMERICA, INC.

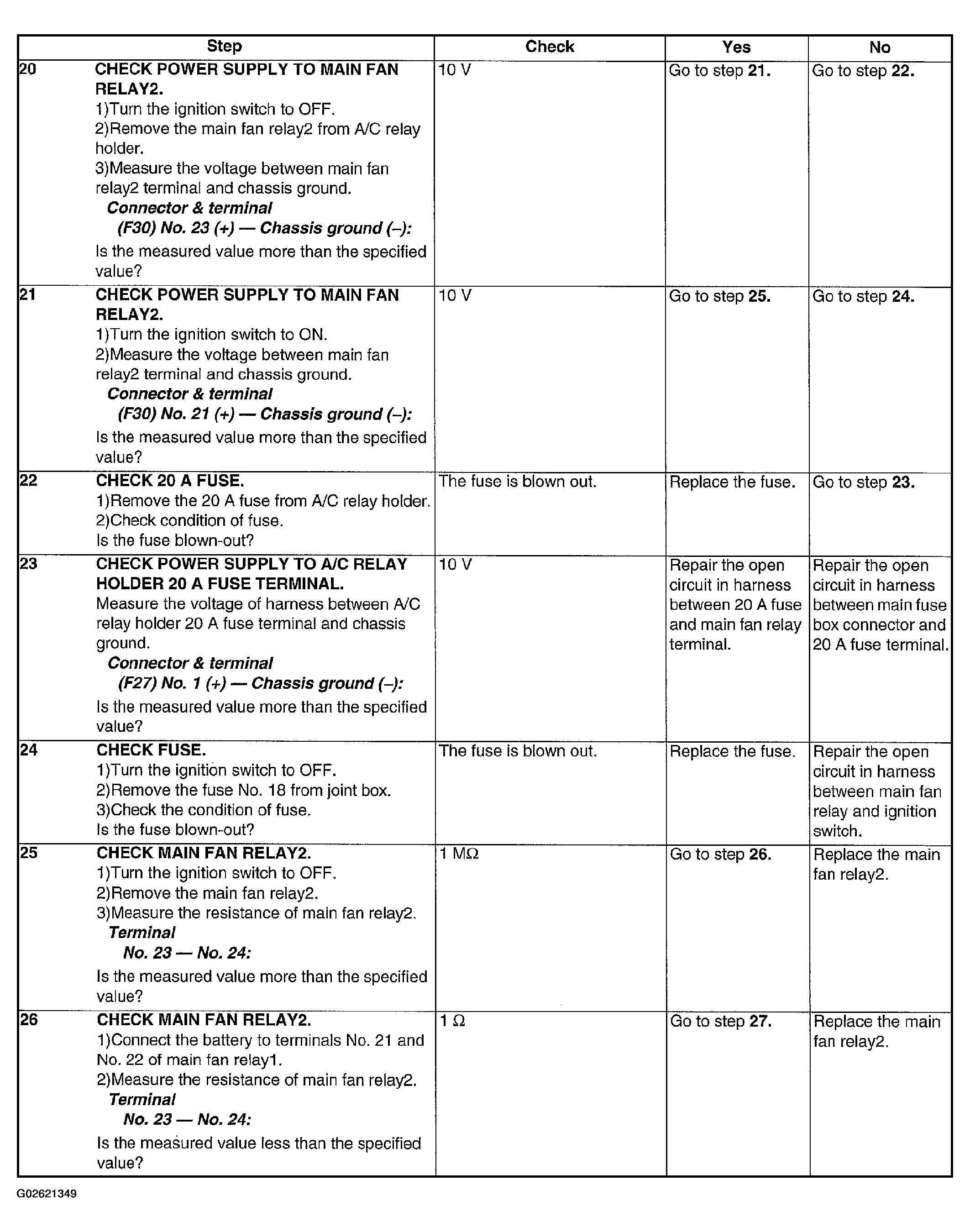

Fig 4: Radiator Main Fan Does Not Rotate Inspection (Turbo Model) (4 Of 5)
G02621349Courtesy of SUBARU OF AMERICA, INC.

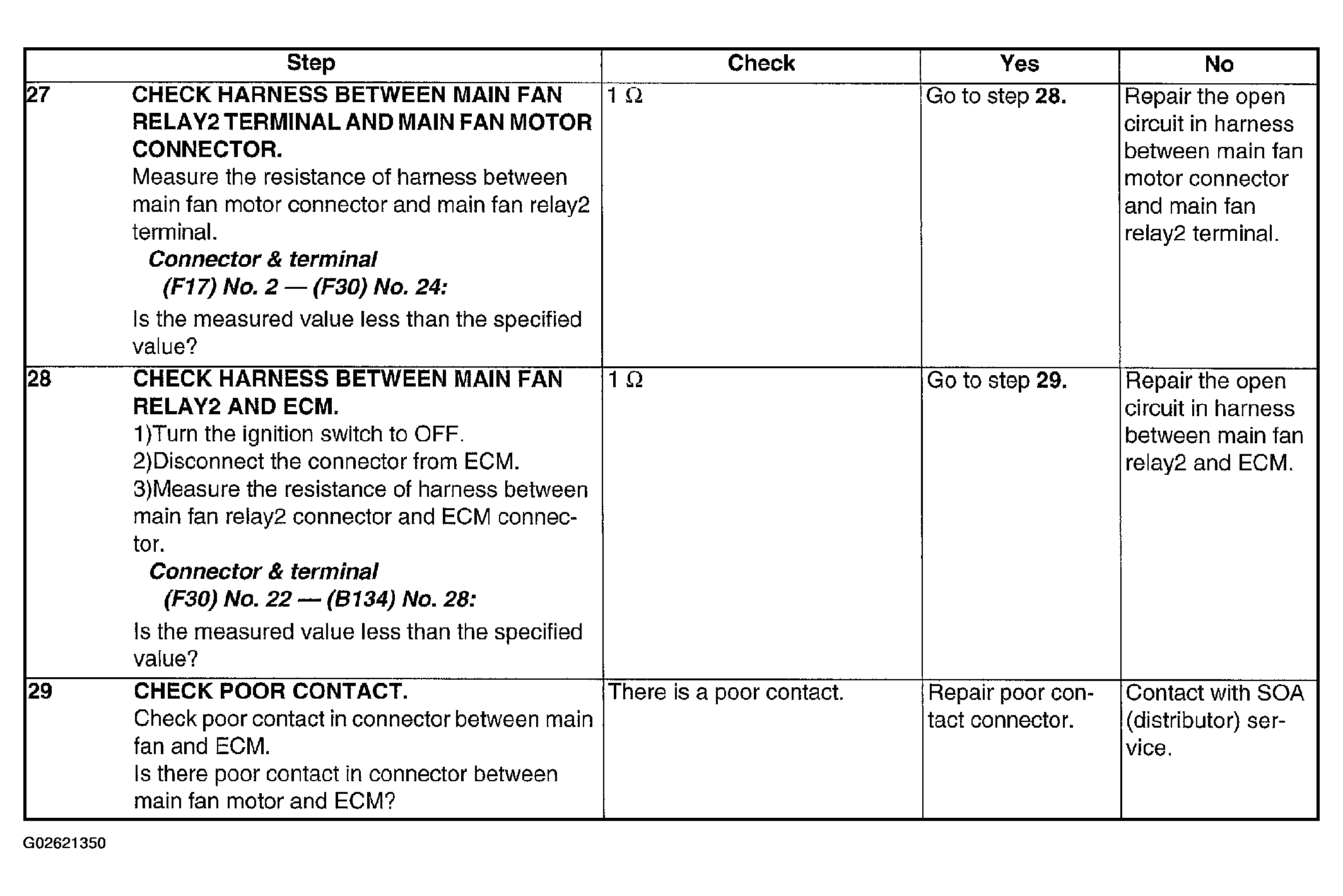

Fig 5: Radiator Main Fan Does Not Rotate Inspection (Turbo Model) (5 Of 5)
G02621350Courtesy of SUBARU OF AMERICA, INC.
NOTE: Inspection by SOA (distributor) service is required, because probable cause is deterioration of multiple parts.
