Front Grille: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the four clips.

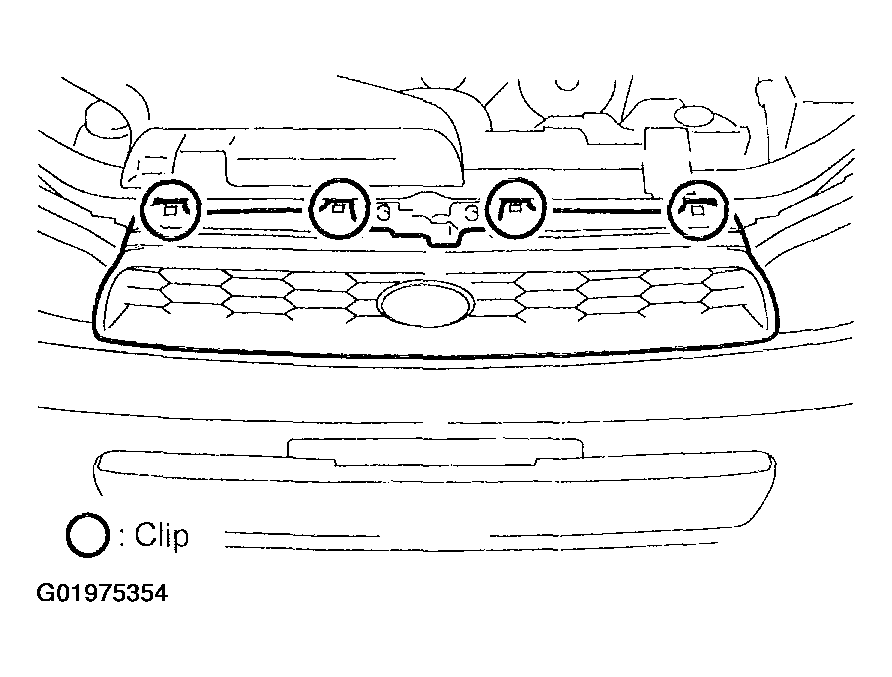

    Fig 1: Removing Four Clips
    G01975354Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the two hooks.

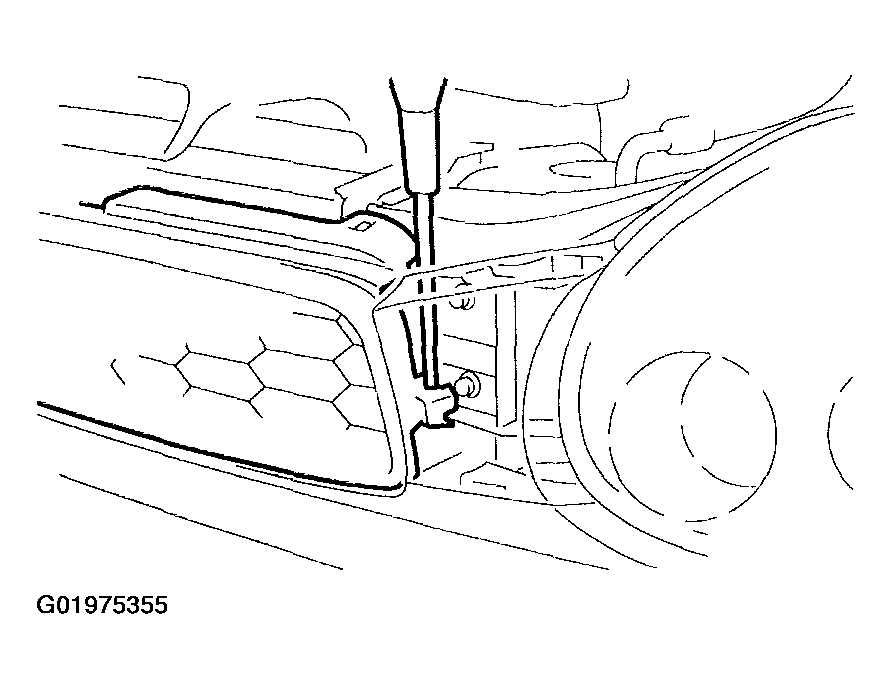

    Fig 2: Removing Two Hooks
    G01975355Courtesy of SUBARU OF AMERICA, INC.
