Removal & Installation: Sub-Frame: Installation

WARNING: This page is about a different car, the 2004 Subaru Forester and 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Replace the M12 bolt with a new one. See Fig 1.

Install in the reverse order of removal.

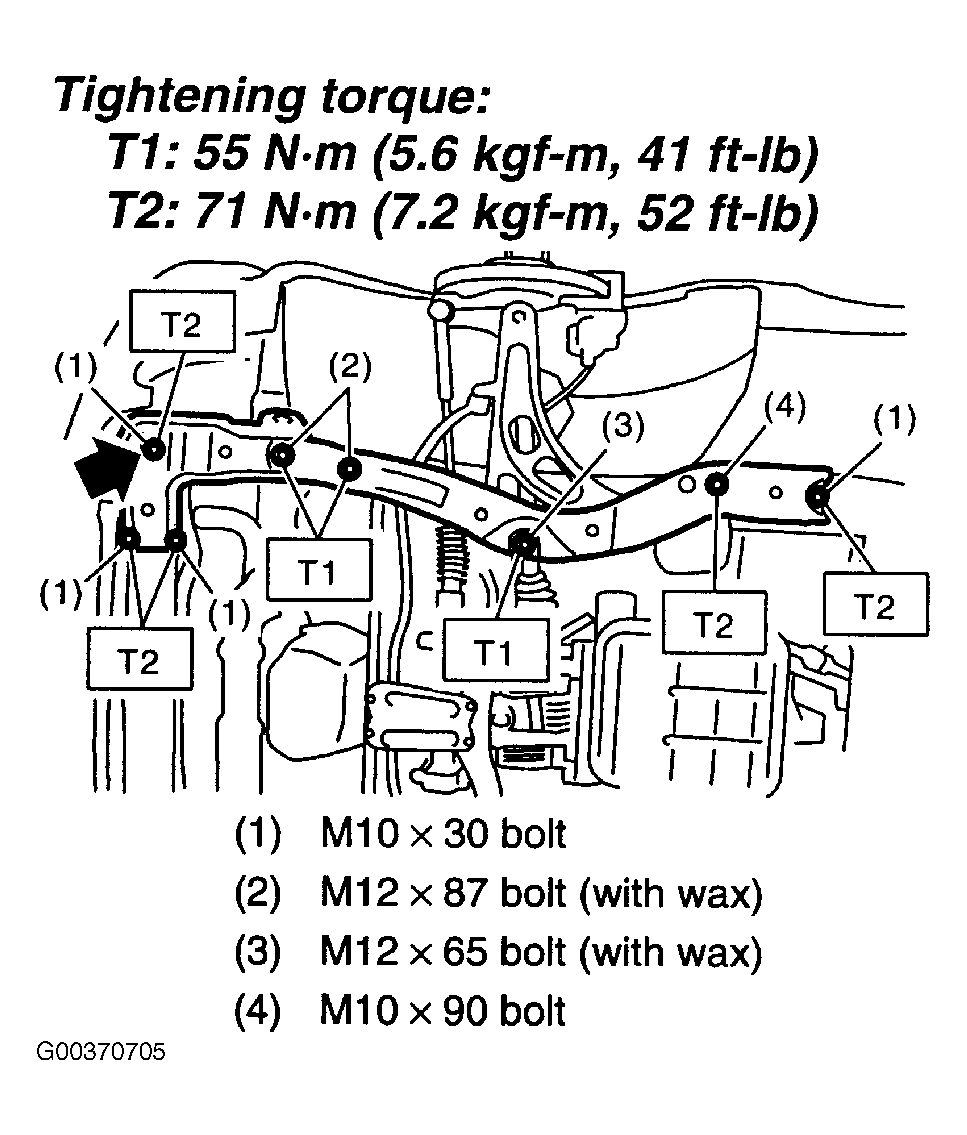

Fig 1: Replacing M12 Bolt

Courtesy of SUBARU OF AMERICA, INC.
