DTC P0607: Control Module Performance

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. OUTLINE OF DIAGNOSIS

    Judge NG when either the following is completed.

    • When the read value of throttle position sensor 1 signal is mismatched between main CPU and sub CPU.
    • When the read value of accelerator position sensor 1 signal is mismatched between main CPU and sub CPU.
    • When the sub CPU operates abnormally.
    • When the communication between main CPU and sub CPU is abnormal.
    • When the input amplifier circuit of throttle position sensor 1 is abnormal.
    • When the cruise control cannot be canceled correctly.
    • When the signal of brake SW1 and 2 is mismatched.
    • When the directed angle from main CPU is abnormal.
  2. COMPONENT DESCRIPTION

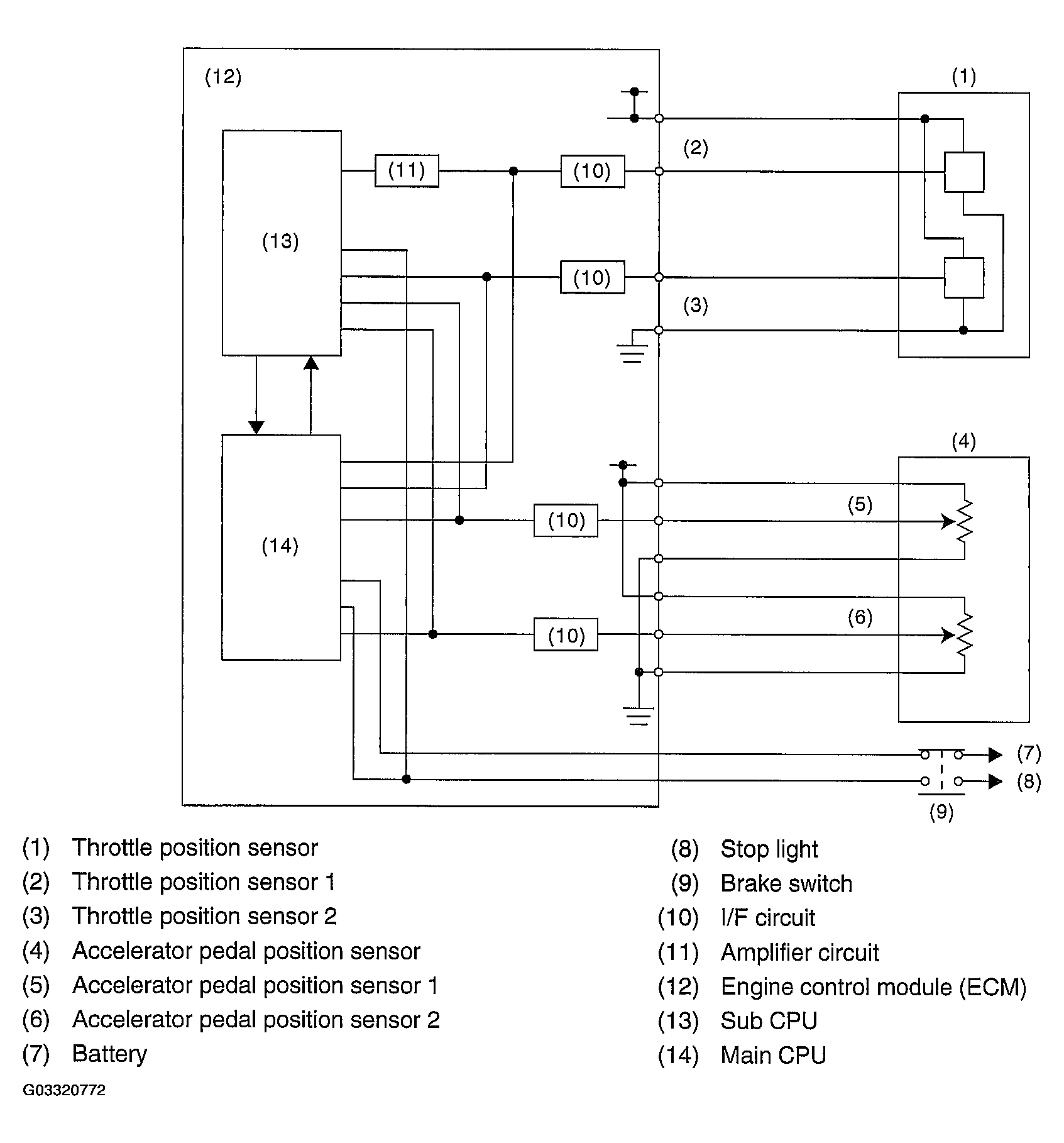

    Fig 1: Circuit Diagram Control Module
    G03320772Courtesy of SUBARU OF AMERICA, INC.
  3. ENABLE CONDITION
    SECONDARY PARAMETERS AND ENABLE CONDITION CHART

    Secondary Parameters Enable Conditions
    (1) Ignition switch ON
    (2) Ignition switch ON
    (3) None -
    (4) None -
    (5) Throttle opening angle
    (6) Brake SW (with cruise control) ON
    (7) None -
    (8) Cruise control OFF
  4. GENERAL DRIVING CYCLE
    1. (1) - (4): Always perform the diagnosis continuously.
    2. (5): Always perform the diagnosis continuously on idling.
    3. (6): Perform the diagnosis when the brake pedal is depressed.
    4. (7): Always perform the diagnosis continuously.
    5. (8): Always perform the diagnosis continuously when the cruise control pedal is not operating.
  5. DIAGNOSTIC METHOD

    Judge OK and clear NG when the malfunction criteria below are completed.

    Judgment Value

    MALFUNCTION CRITERIA AND THRESHOLD VALUE CHART

    Malfunction Criteria Threshold Value
    (1) Difference of CPU on reading value of throttle position sensor signal Within 0.12 V
    (2) Difference of CPU on reading value of accelerator position sensor signal Within 0.07 V
    (3) WD pulse from sub CPU WD pulse occur
    (4) Communication between CPU Possible to communicate
    (5) Difference of signal on connection of amplifier Within x 4+/-0.6 V
    (6) Cruise control cancel signal at brake ON Cruise control cancel signal ON
    (7) Brake switch 1, 2 signal SW 1 and 2 are matched
    (8) Throttle opening angle directing value Within the opening angle +3.4° which calculated from accelerator opening angle coefficient.

    Time Needed for Diagnosis:

    1. 250 milliseconds
    2. 250 milliseconds
    3. 200 milliseconds
    4. 200 milliseconds
    5. 24 milliseconds
    6. 250 milliseconds
    7. 200 milliseconds
    8. 250 milliseconds

      Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.

  6. DTC CLEAR CONDITION
    • When the OK idling cycle was completed 40 times in a row
    • When "Clear Memory" was performed
  7. MALFUNCTION INDICATOR LIGHT CLEAR CONDITION
    • When the OK driving cycle was completed 3 times in a row
    • When "Clear Memory" was performed
  8. FAIL SAFE

    Stop the current to electric control throttle motor. (Fix the throttle opening angle to 6°.)

  9. ECM OPERATION AT DTC SETTING
    • Memorize the freeze frame data. (For test mode $02)
    • Memorize the diagnosis value and malfunction criteria value. (For test mode $06)
