Side Retainer

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the O-ring.

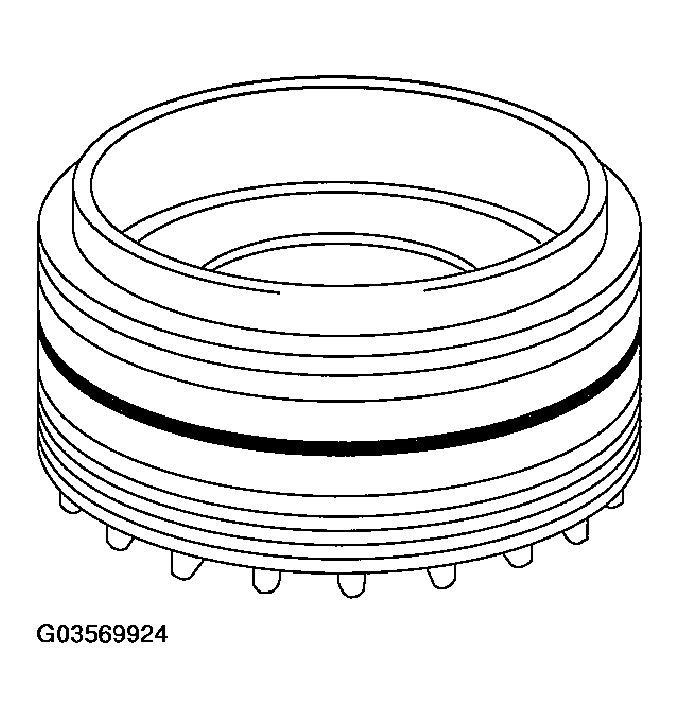

    Fig 1: Removing O-Ring
    G03569924Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the oil seal.
    NOTE: Do not reuse the oil seal. Prepare a new oil seal.

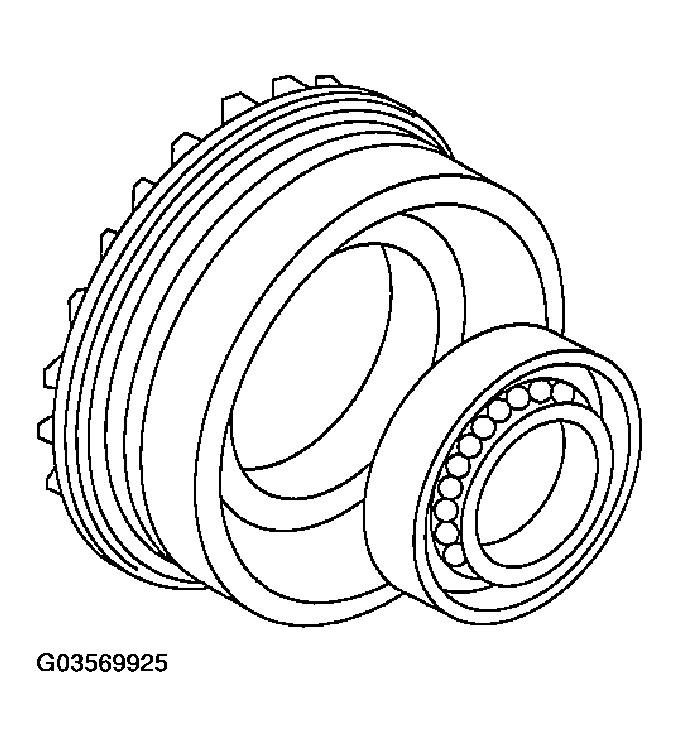

    Fig 2: Removing Oil Seal
    G03569925Courtesy of SUBARU OF AMERICA, INC.
