Home >> Subaru >> 2002 >> Forester Base >> Repair and Diagnosis >> External Pages >> Different car >> Section 182 (Instrumentation - Driver Info) >> Combination Meter System >> Inspection >> Symptom Chart

Symptom Chart

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

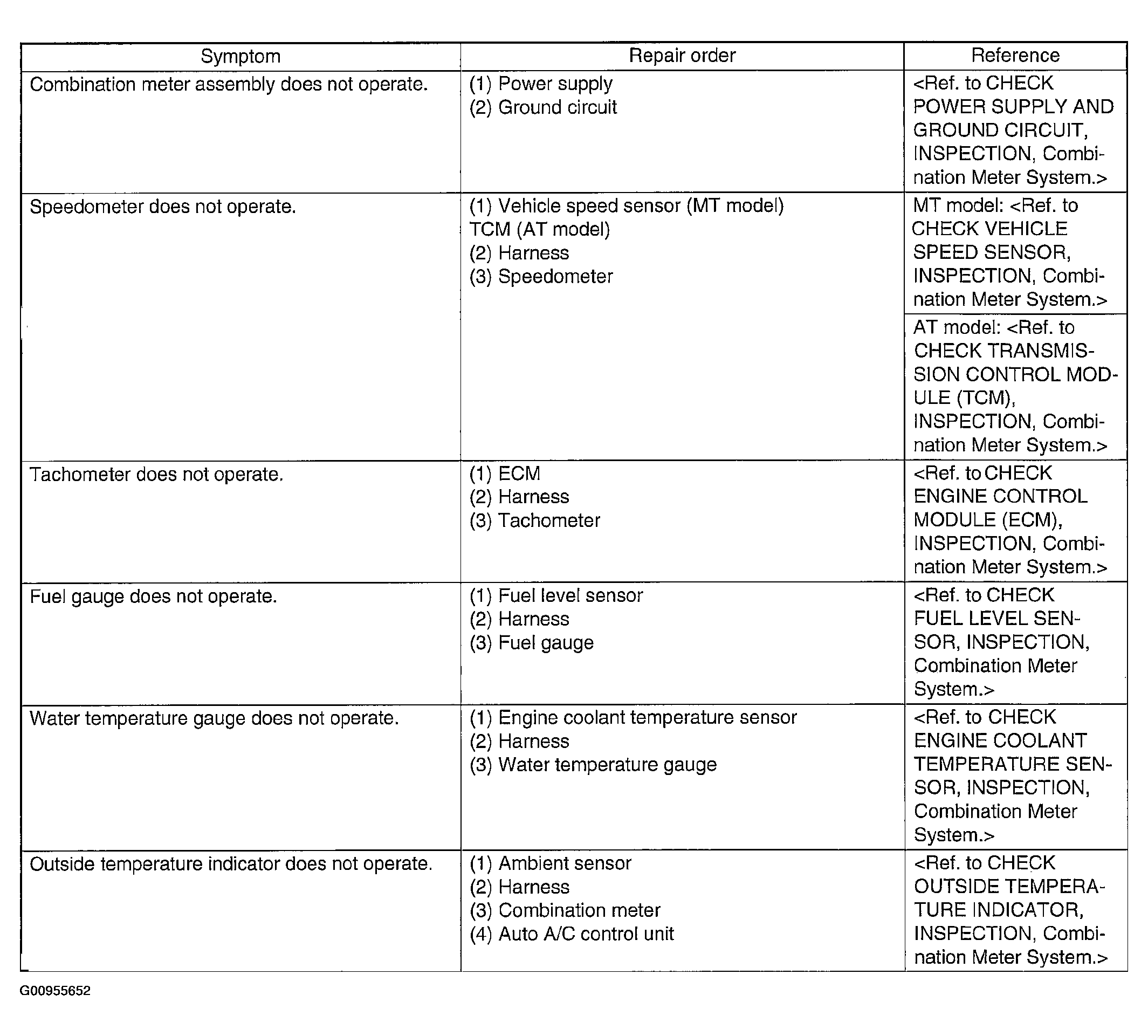

Fig 1: Symptom Chart
G00955652Courtesy of SUBARU OF AMERICA, INC.
