Section 182 (Instrumentation - Driver Info)
>>
Combination Meter System
>>
Inspection
>>
Check Transmission Control Module (TCM)
Check Transmission Control Module (TCM)
WARNING:
This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

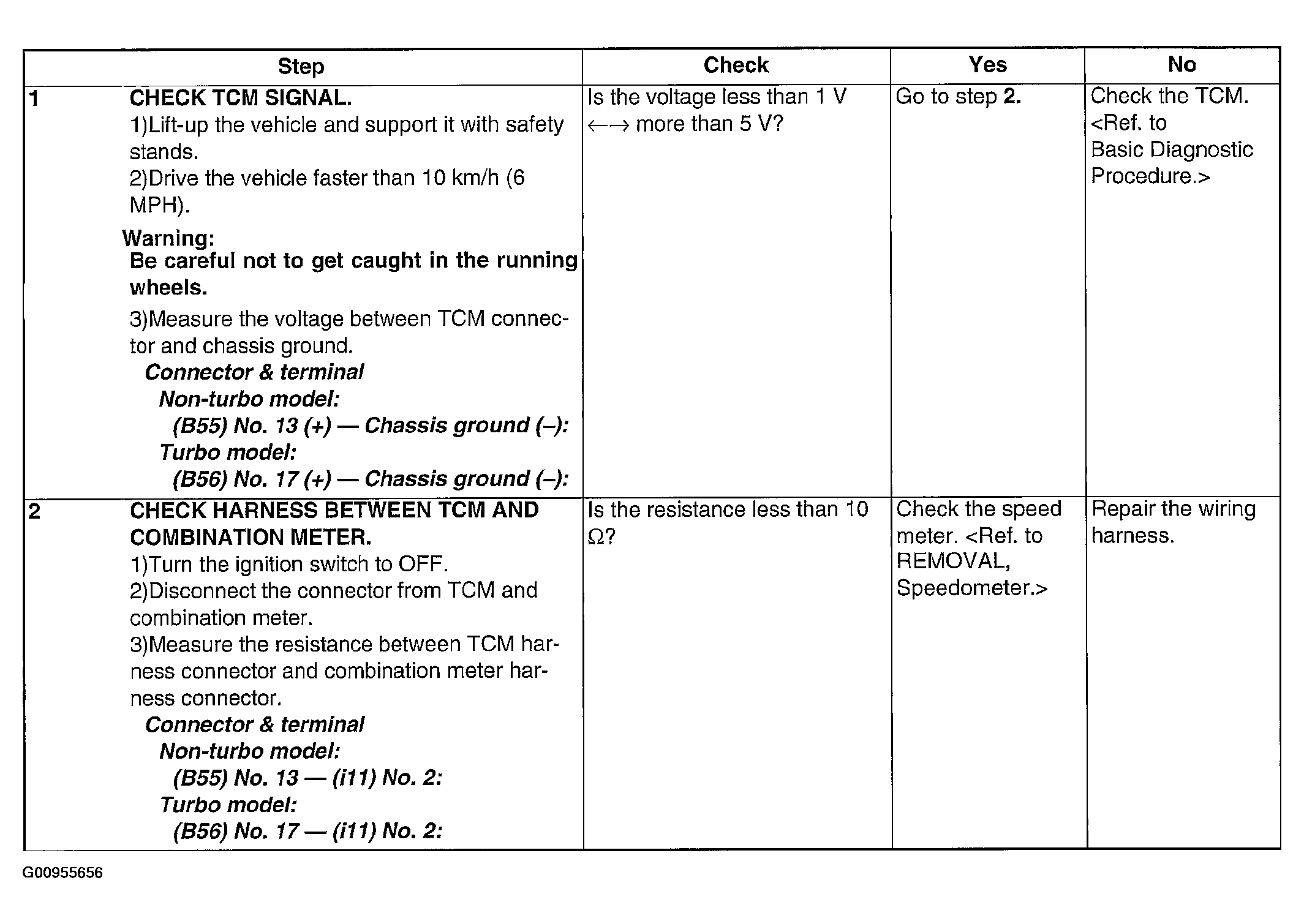

Fig 1: Transmission Control Module (TCM) Chart
Courtesy of SUBARU OF AMERICA, INC.
