Check Fuel Level Sensor

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

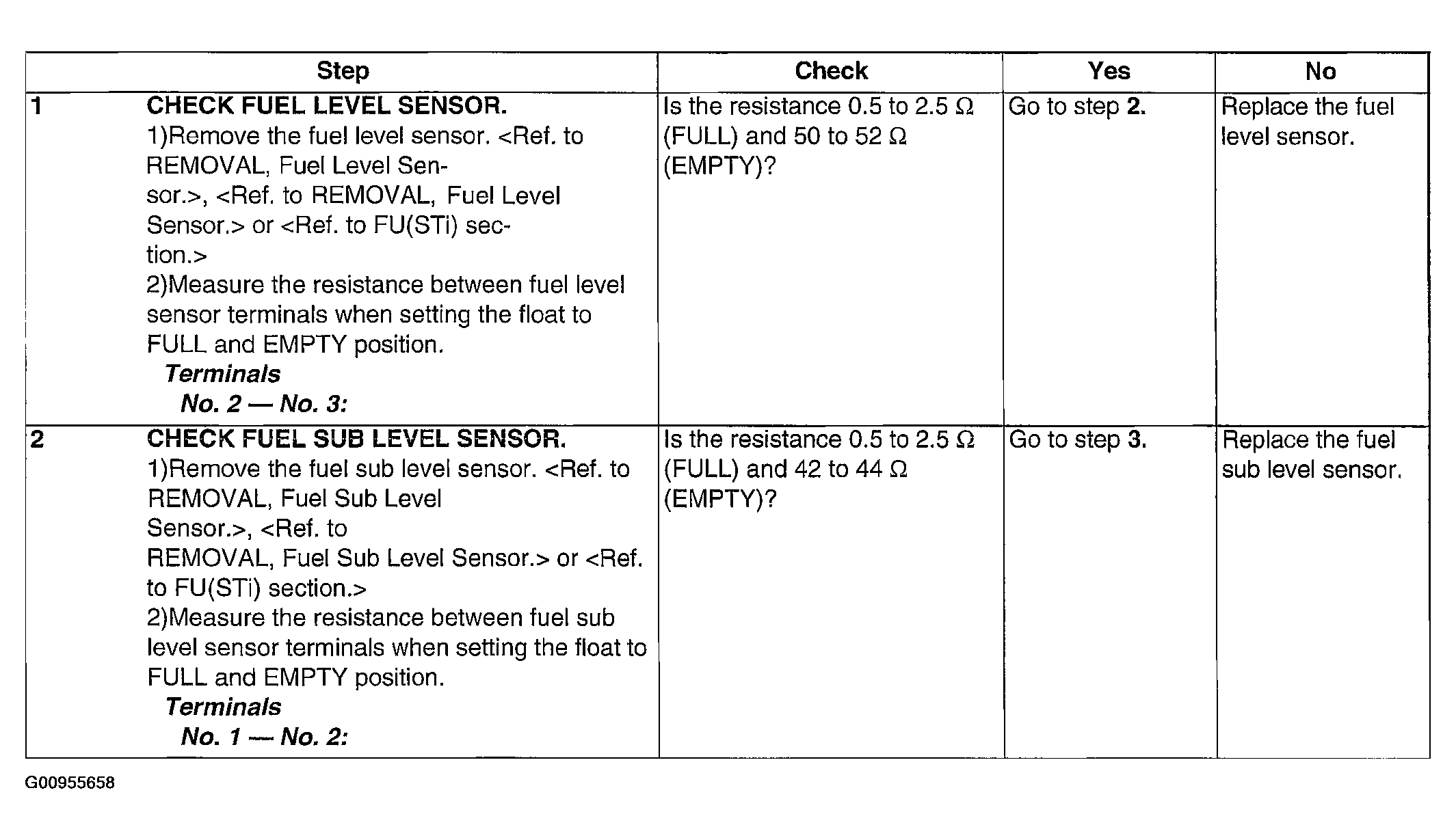

Fig 1: Fuel Level Sensor Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

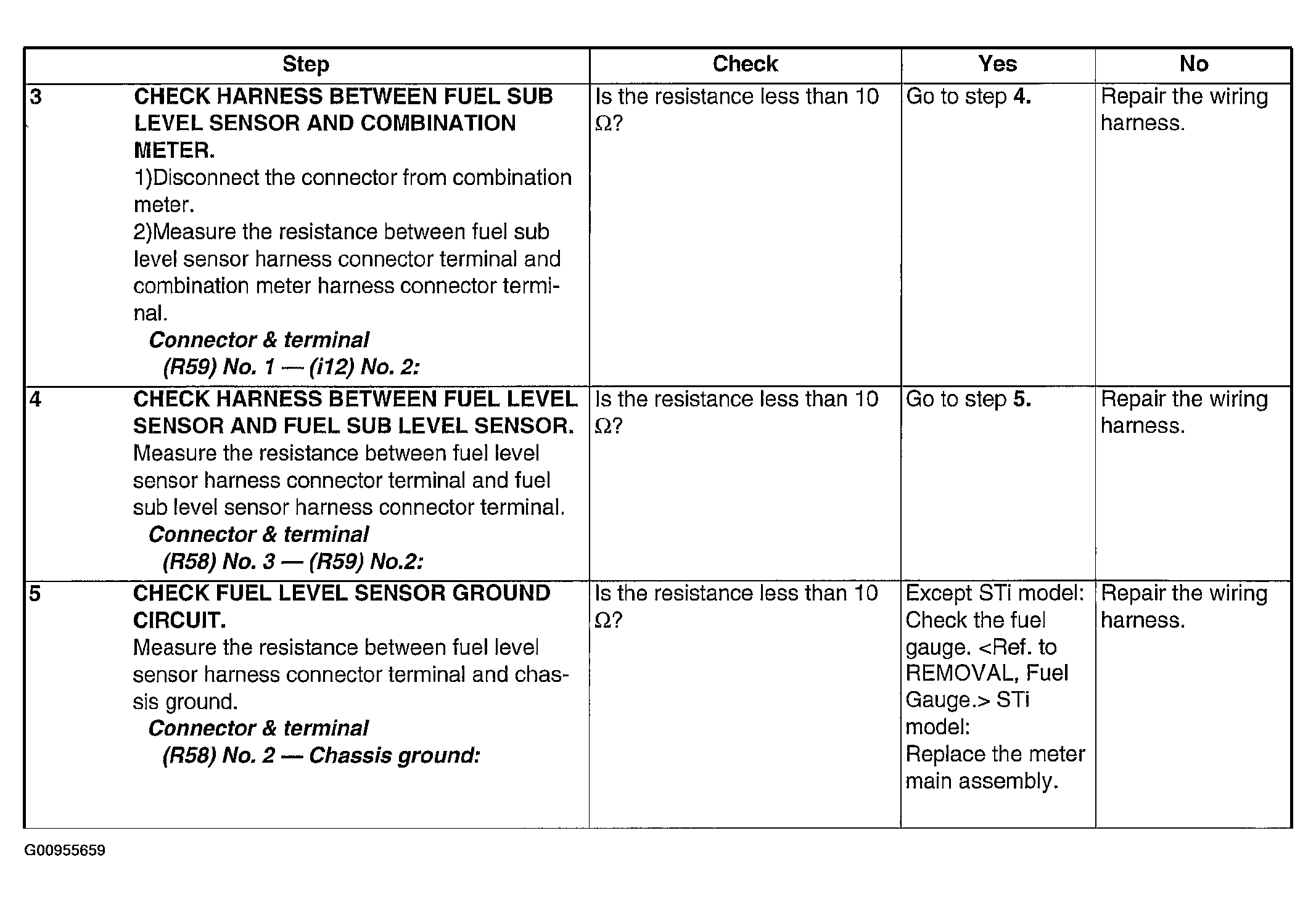

Fig 2: Fuel Level Sensor Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
