STI Model

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.

Disengage the claw (E) to remove the meter glass (D), reflector (C), and window plate (B) from meter main assembly (A).

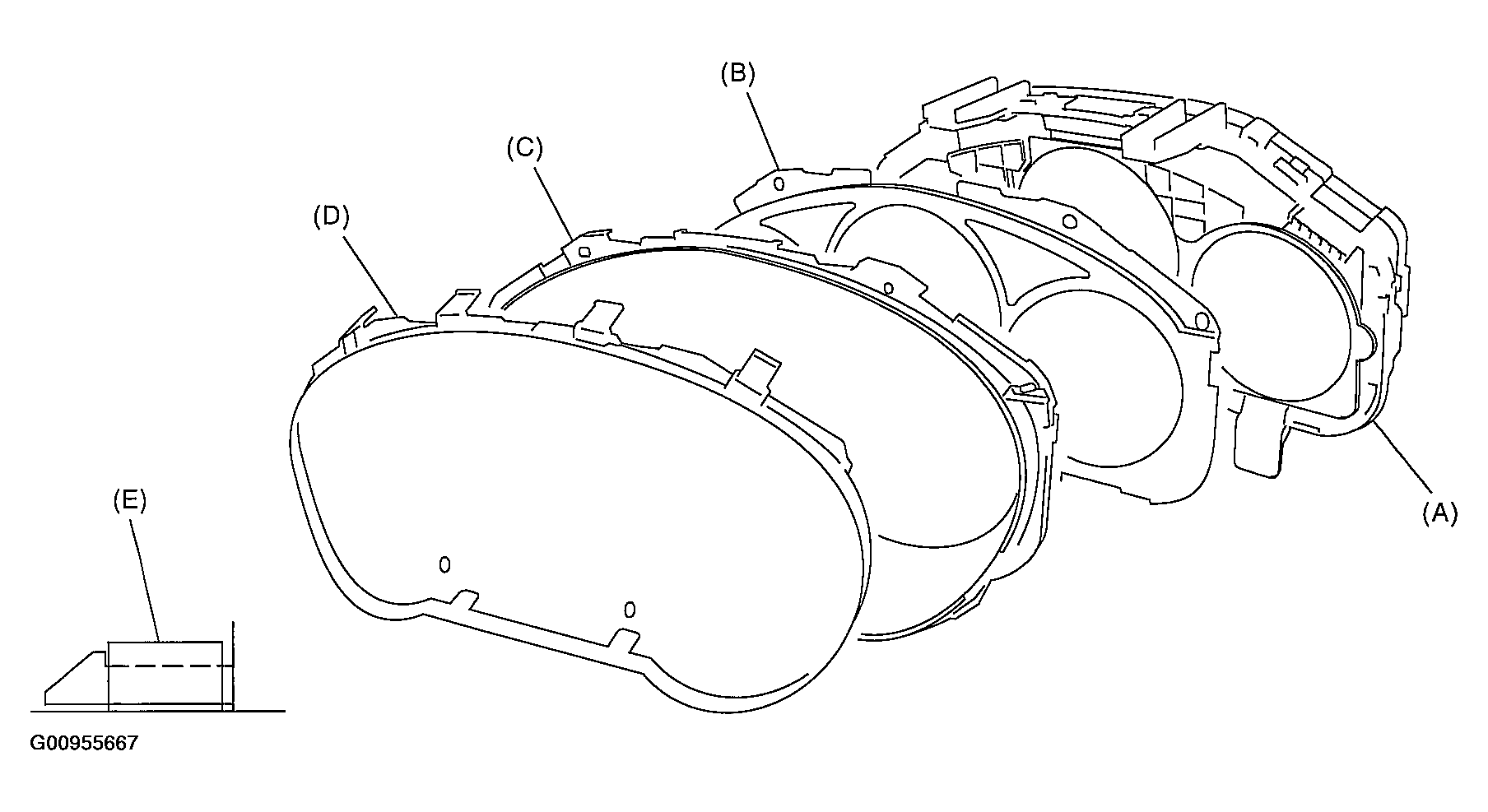

Fig 1: Identifying Claw, Meter Glass, Reflector, Window Plate And Meter Main Assembly

Courtesy of SUBARU OF AMERICA, INC.
