Electrical Components Location: Location: Sensor

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

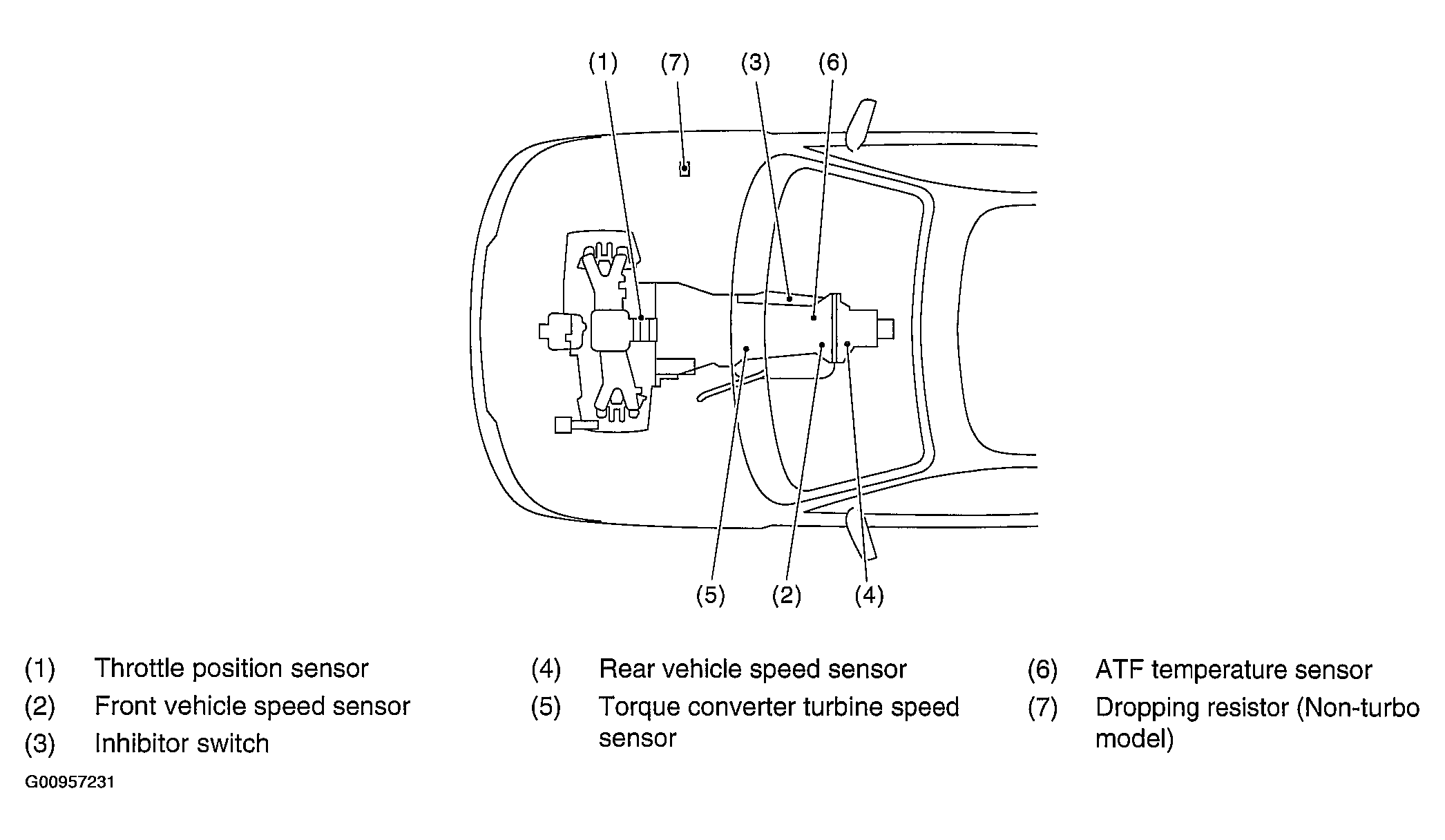

Fig 1: Identifying Sensor Location (1 Of 2)
G00957231Courtesy of SUBARU OF AMERICA, INC.

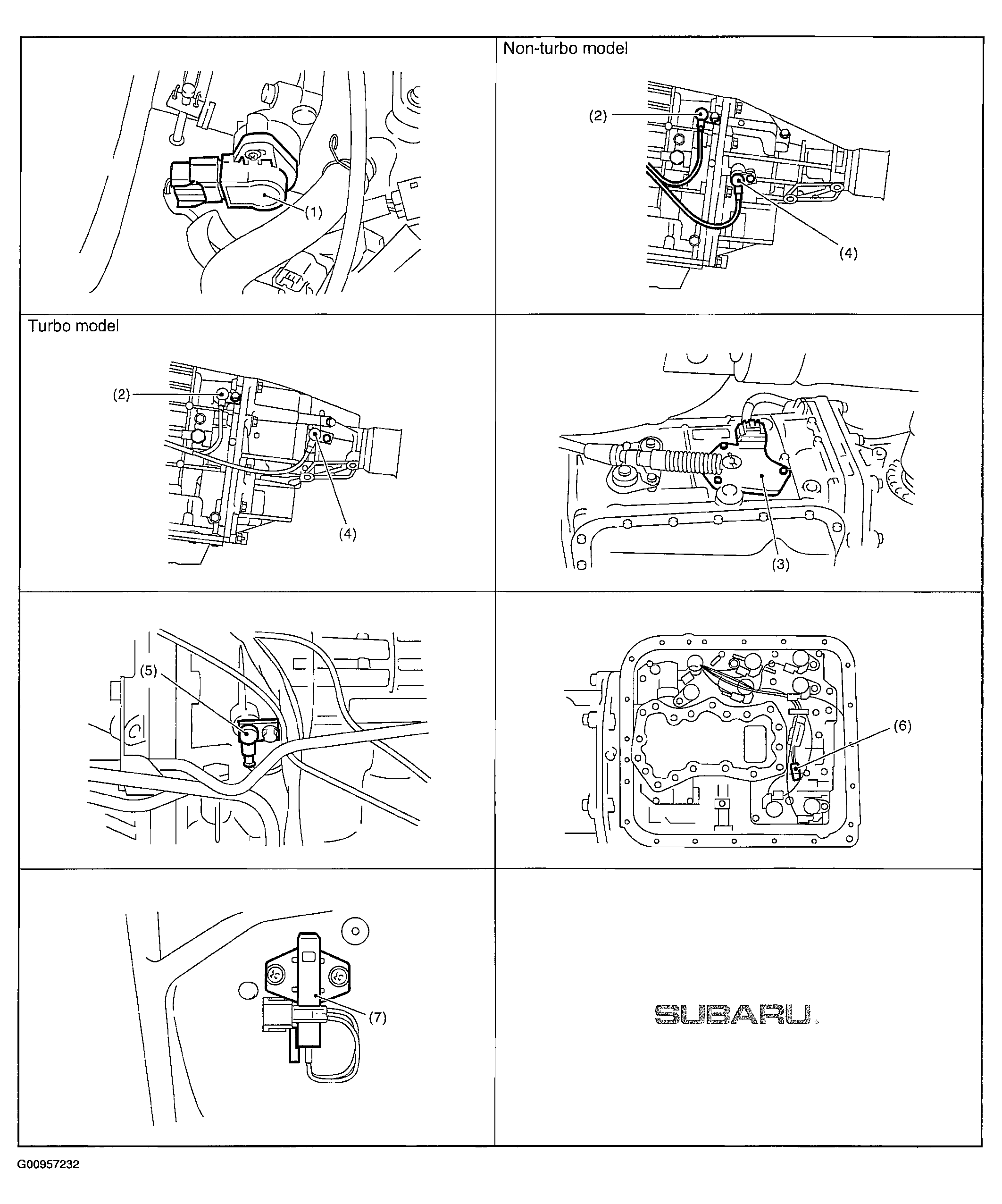

Fig 2: Identifying Sensor Location (2 Of 2)
G00957232Courtesy of SUBARU OF AMERICA, INC.
