Section 175 (Automatic Transmission (Diagnostics))
>>
Basic Diagnostic Procedure
>>
Procedure
Basic Diagnostic Procedure: Procedure
WARNING:
This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

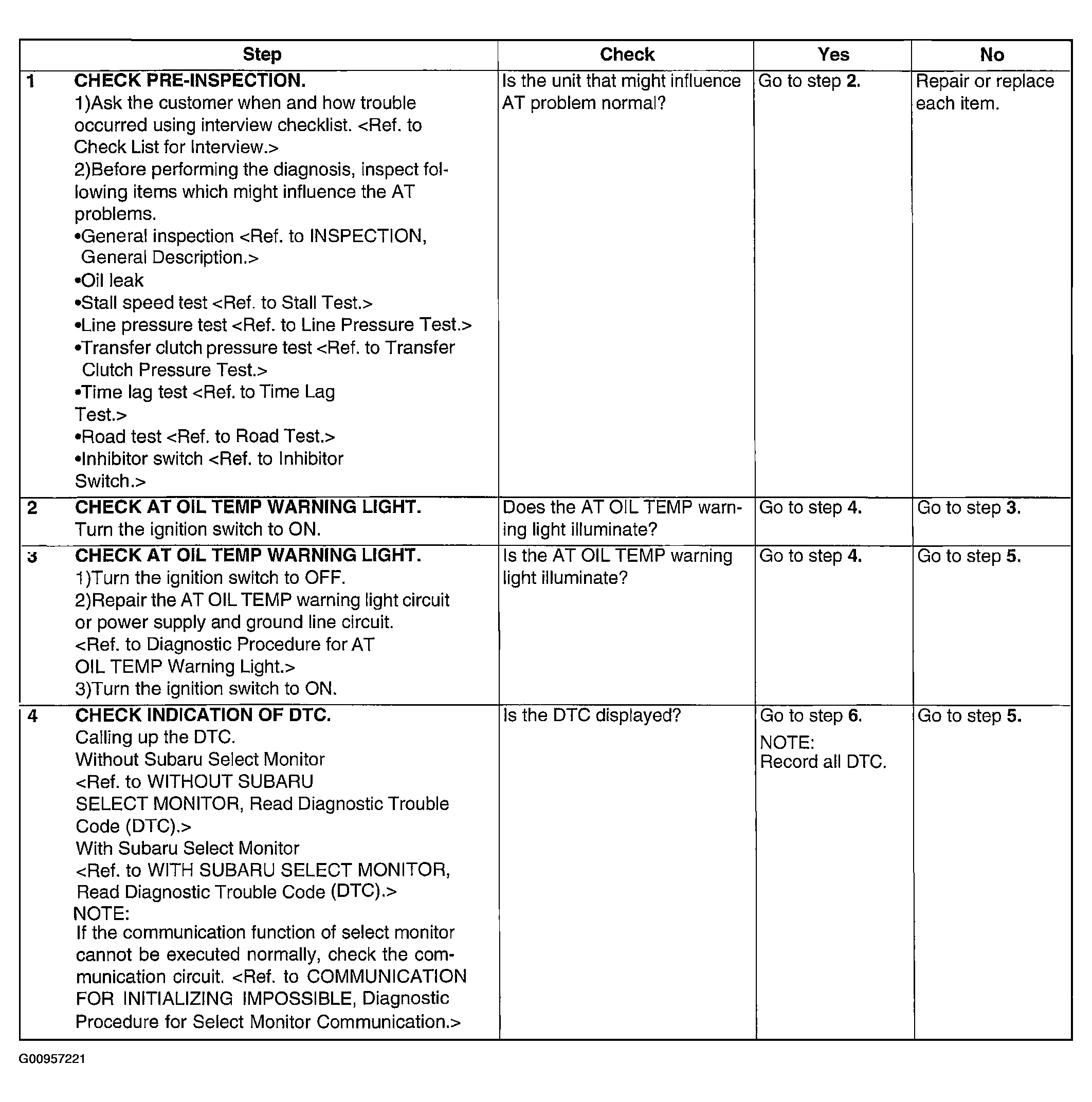

Fig 1: Basic Diagnostic Procedure (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

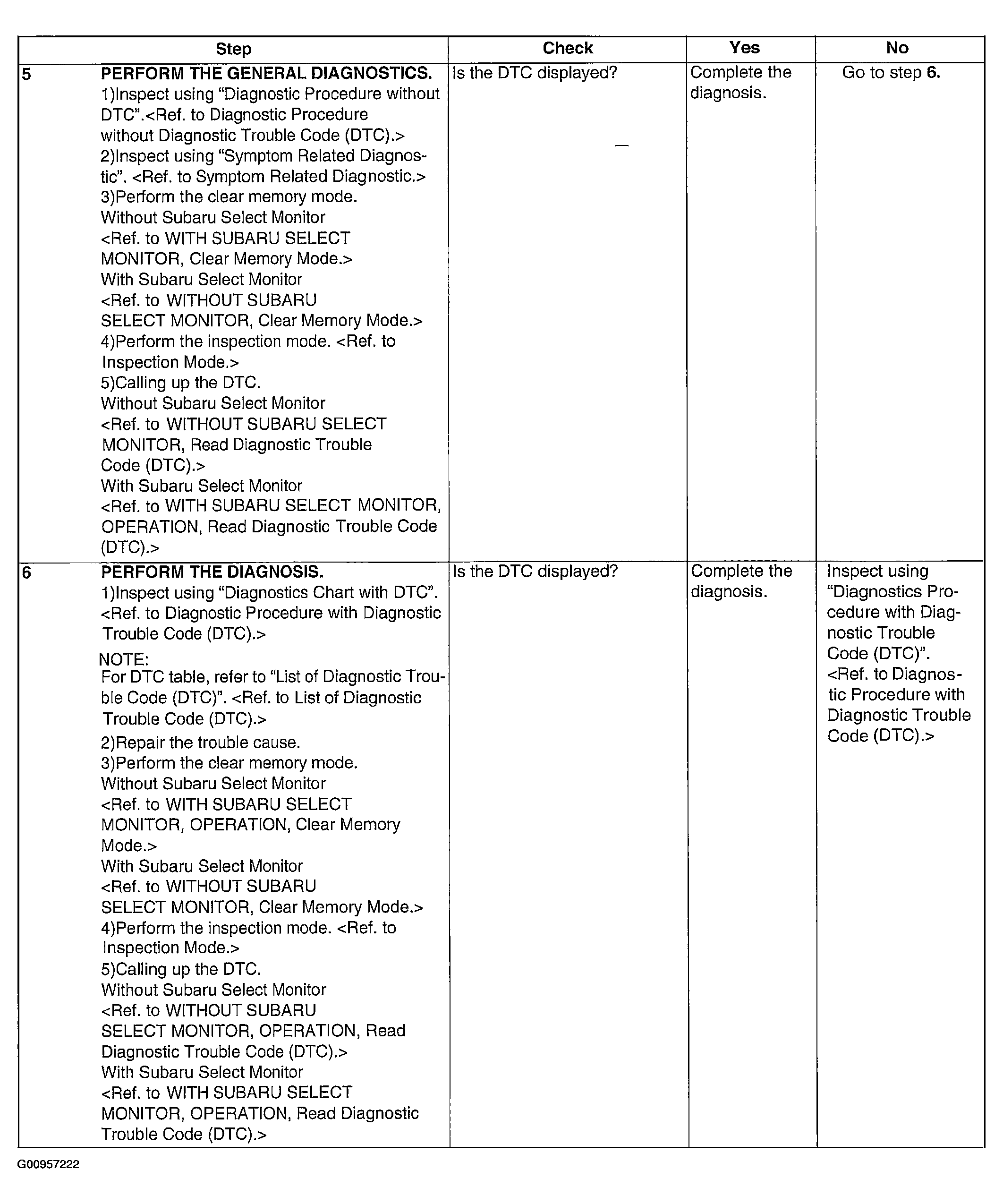

Fig 2: Basic Diagnostic Procedure (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
