Body Integrated Unit: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

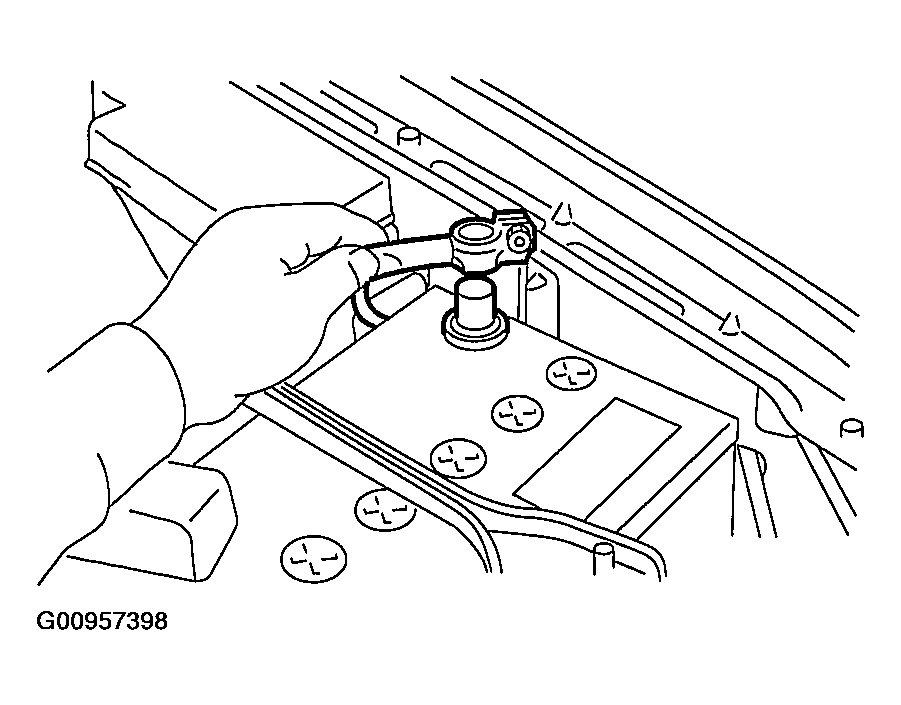

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.

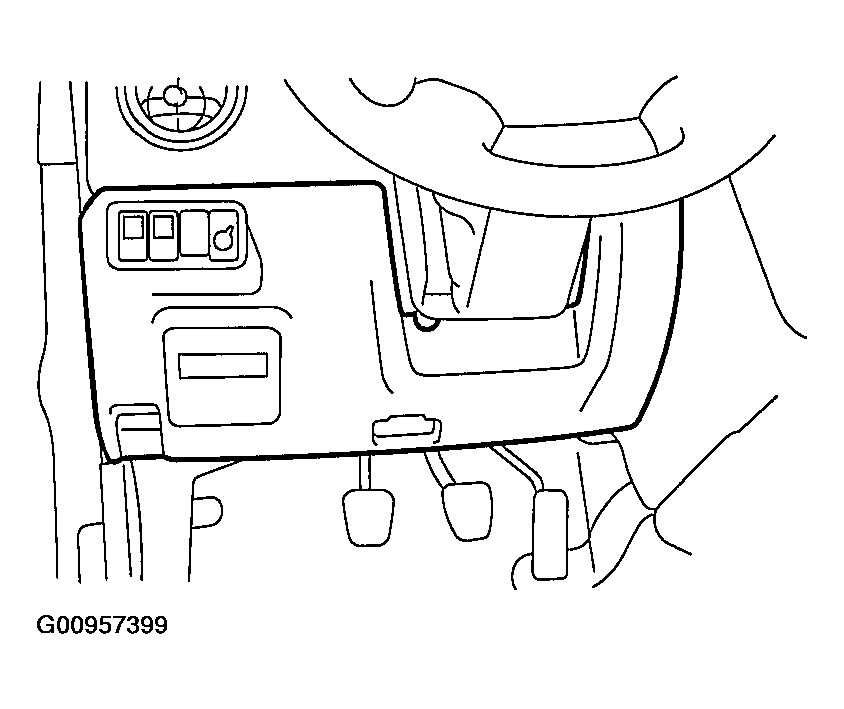

Remove the lower cover.

Fig 2: Removing Lower Cover
Courtesy of SUBARU OF AMERICA, INC.

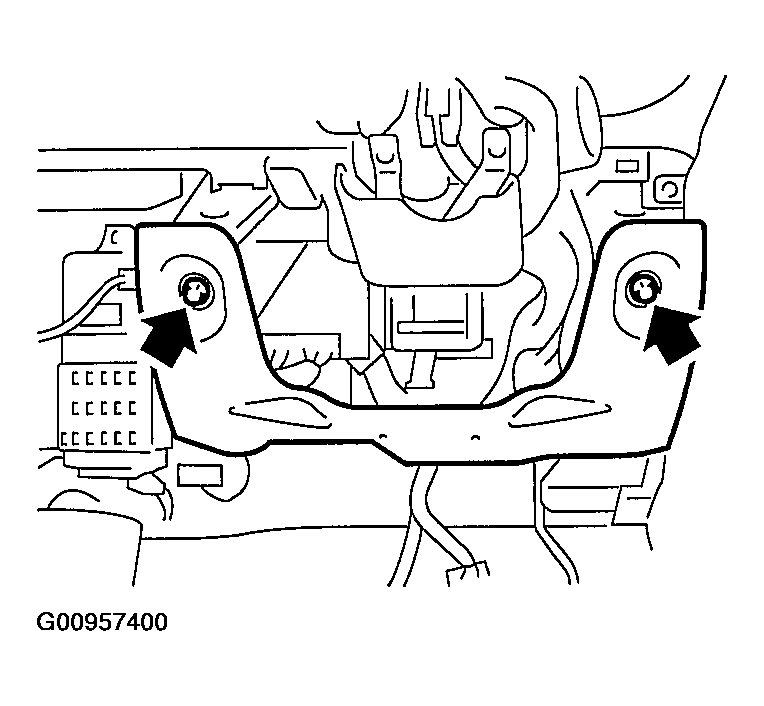

Remove the knee bolster.

Fig 3: Removing Knee Bolster
Courtesy of SUBARU OF AMERICA, INC.

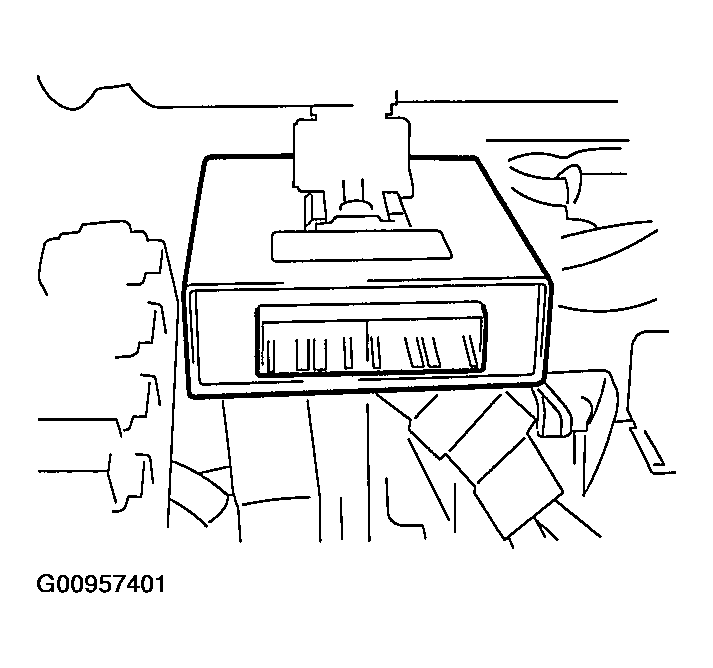

Disconnect the connector from body integrated unit.
Remove the body integrated unit.

Fig 4: Removing Body Integrated Unit
Courtesy of SUBARU OF AMERICA, INC.
