Interrupt Relay

WARNING: This page is about a different car, the 2002 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground terminal from battery. Remove mounting nuts, and detach the interrupt relay (near fuse box). See Fig 1 . To install, reverse removal procedures.

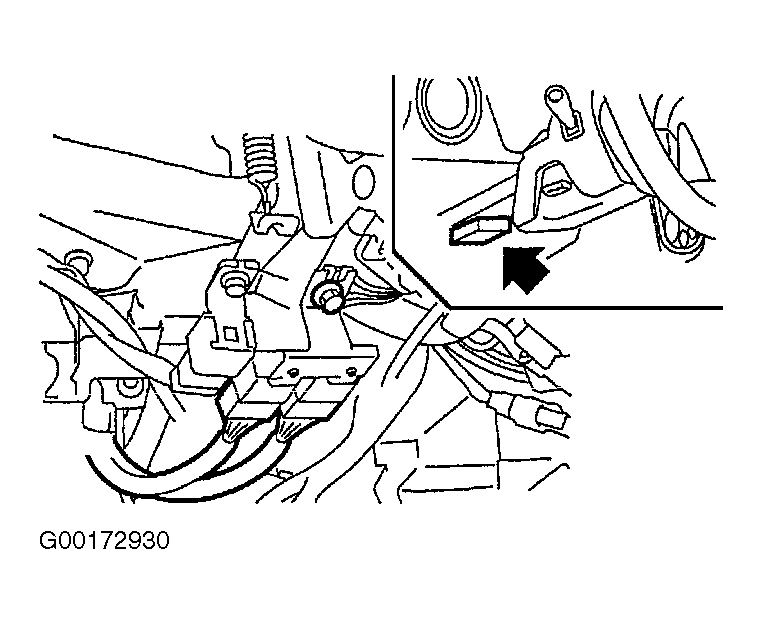

Fig 1: Removing & Installing Interrupt Relay
G00172930Courtesy of SUBARU OF AMERICA, INC.
