Check Power Supply And Ground Circuit

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

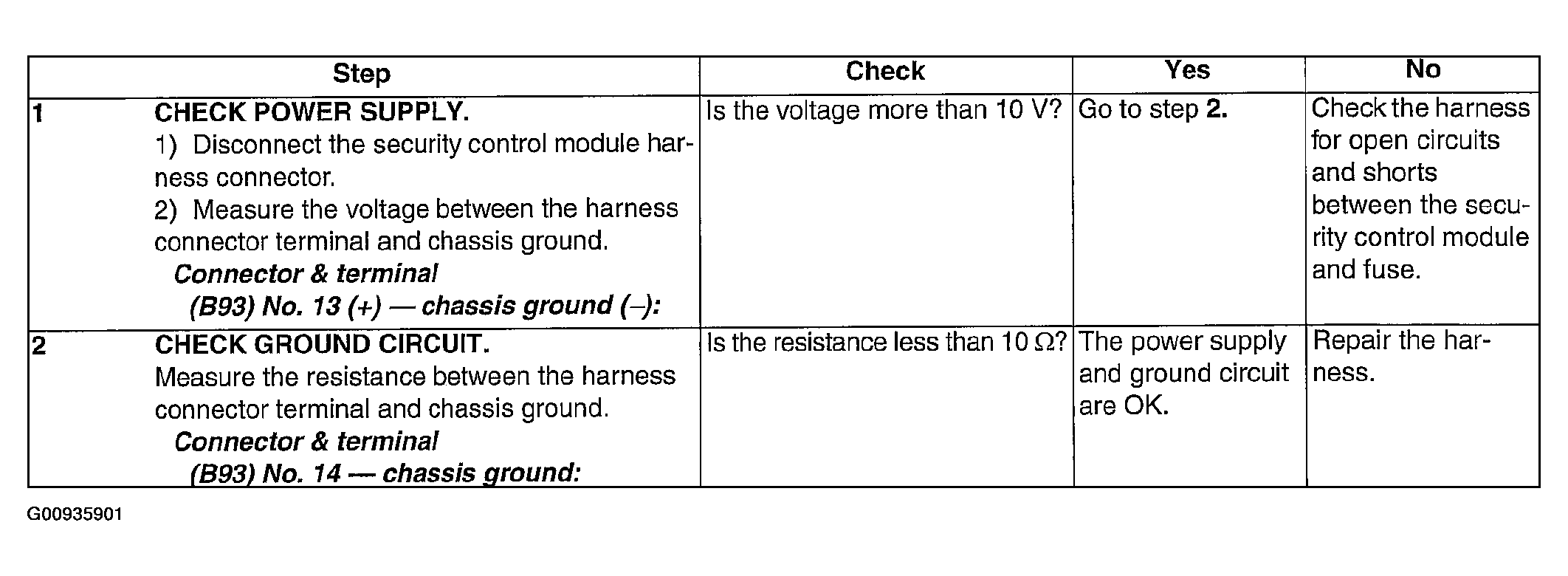

Fig 1: Check Power Supply And Ground Circuit Chart
G00935901Courtesy of SUBARU OF AMERICA, INC.
