Interrupt Relay: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the mounting nuts and detach the interrupt relay (near the fuse box).

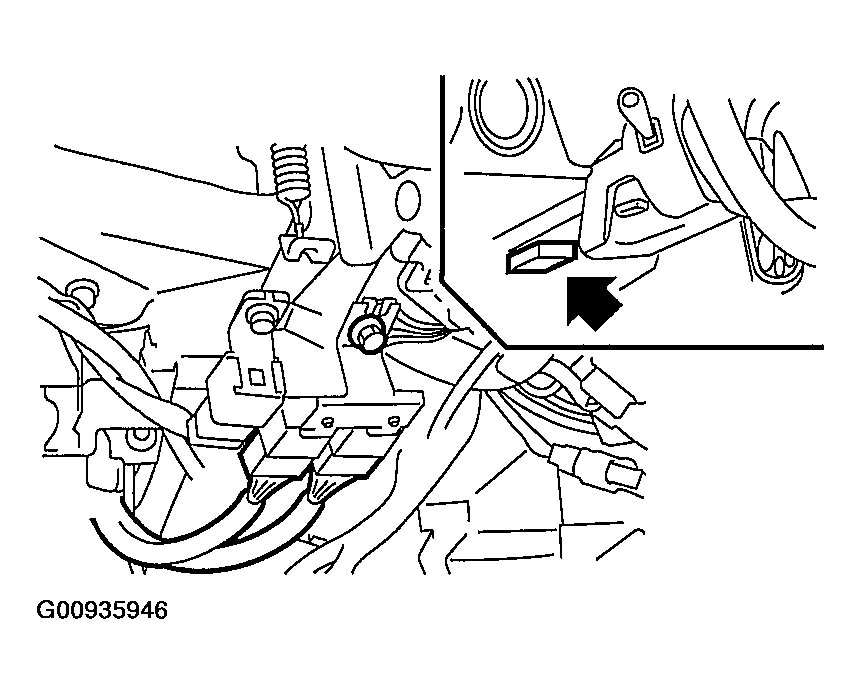

    Fig 1: Identifying Mounting Nuts
    G00935946Courtesy of SUBARU OF AMERICA, INC.
