Front Door Latch Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the front door trim. Refer to REMOVAL , Front Door Trim .
  3. Remove the sealing cover. Refer to REMOVAL , Front Sealing Cover .
  4. Remove the front inner remote. Refer to REMOVAL .
  5. Remove two bolts and nut, and then remove the guide rail.

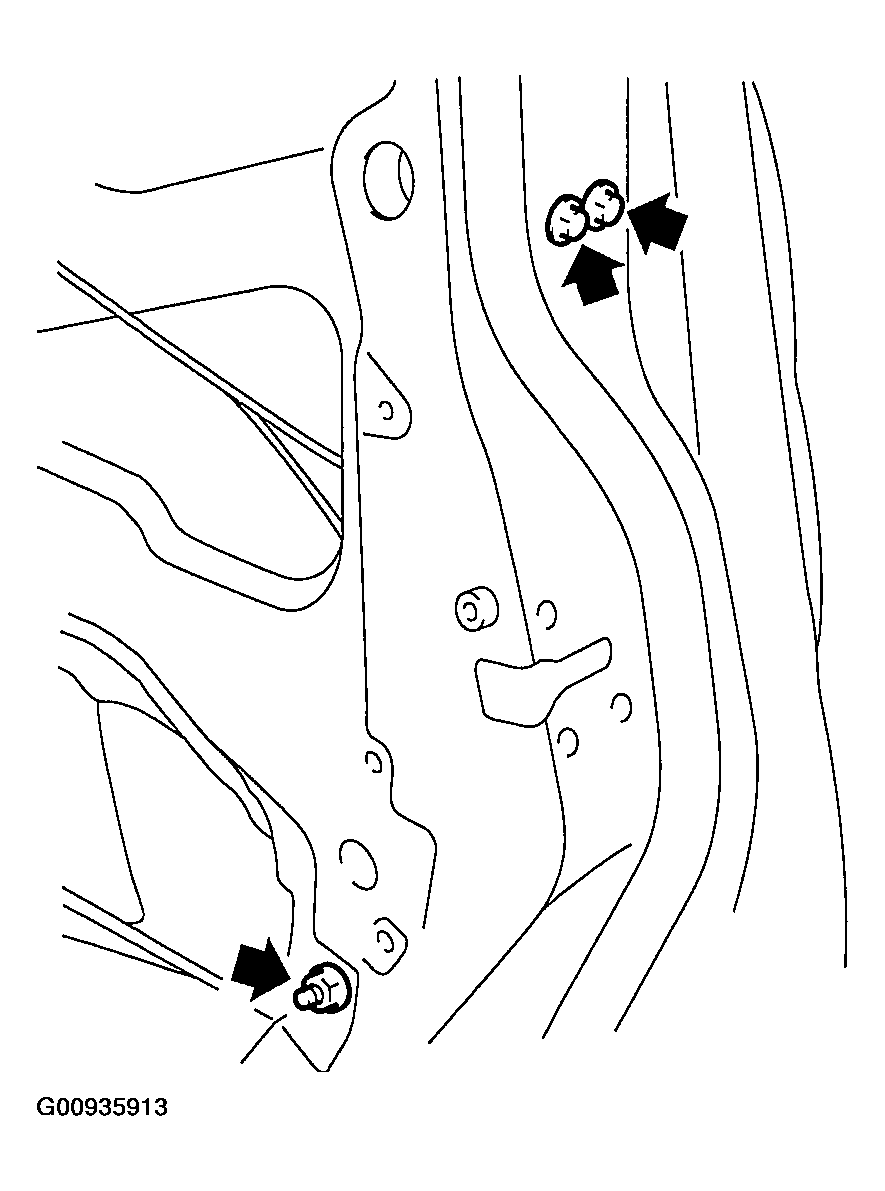

    Fig 1: Identifying Bolts And Nut
    G00935913Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the three screws and bolt.
    Fig 2: Identifying Screws And Bolt
    G00935914Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the front door latch assembly, and then disconnect the connector.
