Master Cylinder: Disassembly

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the straight pin and reservoir tank.

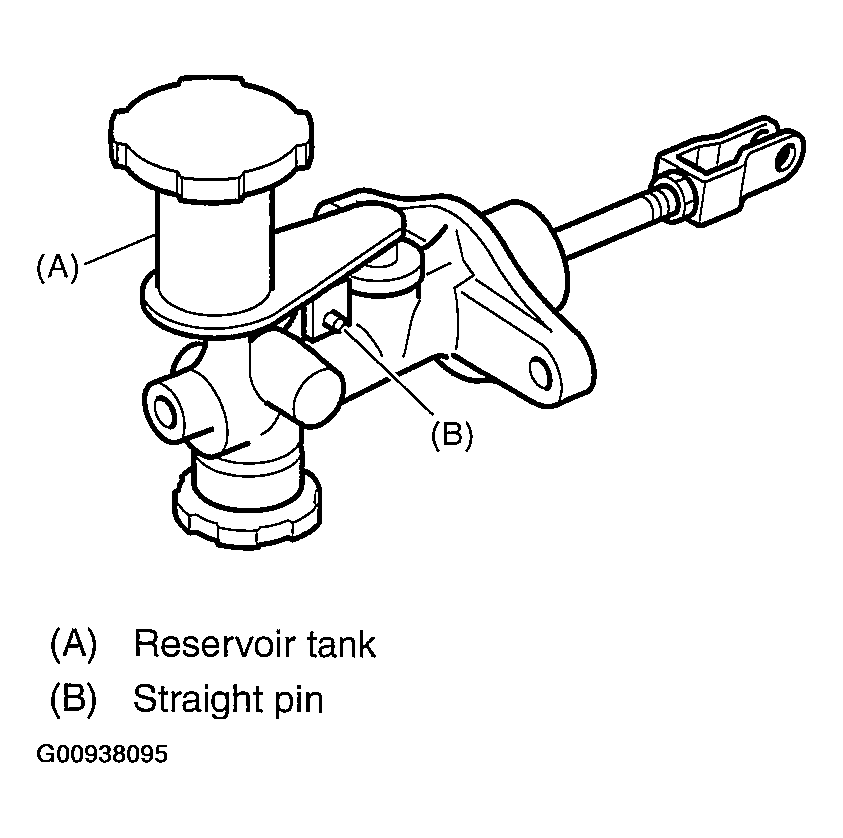

Fig 1: Identifying Straight Pin And Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Remove the oil seal.

Fig 2: Identifying Oil Seal
Courtesy of SUBARU OF AMERICA, INC.
Move the cylinder boot backward.

Fig 3: Moving Cylinder Boot Backward
Courtesy of SUBARU OF AMERICA, INC.
Remove the stop ring.
CAUTION: Be careful when Identifying the stop ring to prevent the rod, washer, piston and return spring from flying out.
