Non-Turbo Model

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the radiator. Refer to REMOVAL , Radiator.
Remove the V-belts. Refer to V-BELT , V-belt.
Remove the crank pulley. Refer to CRANK PULLEY , Crank Pulleys
Remove the timing belt. Refer to TIMING BELT ASSEMBLY , REMOVAL, Timing Belt Assembly.
Remove the automatic belt tension adjuster.

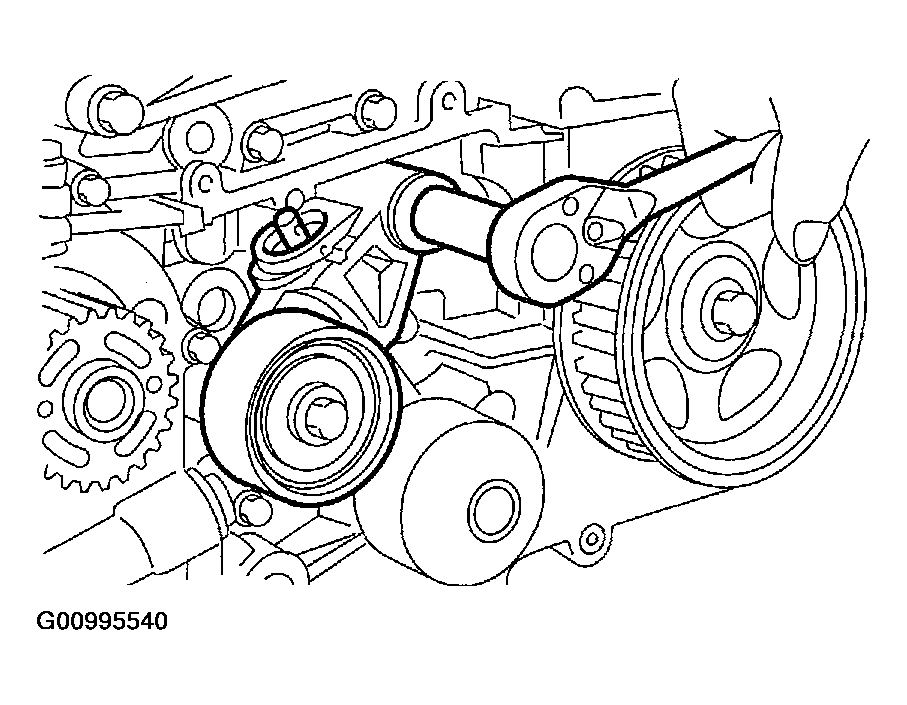

Fig 1: Removing Automatic Belt Tension Adjuster
Courtesy of SUBARU OF AMERICA, INC.
Remove the belt idler No. 2.

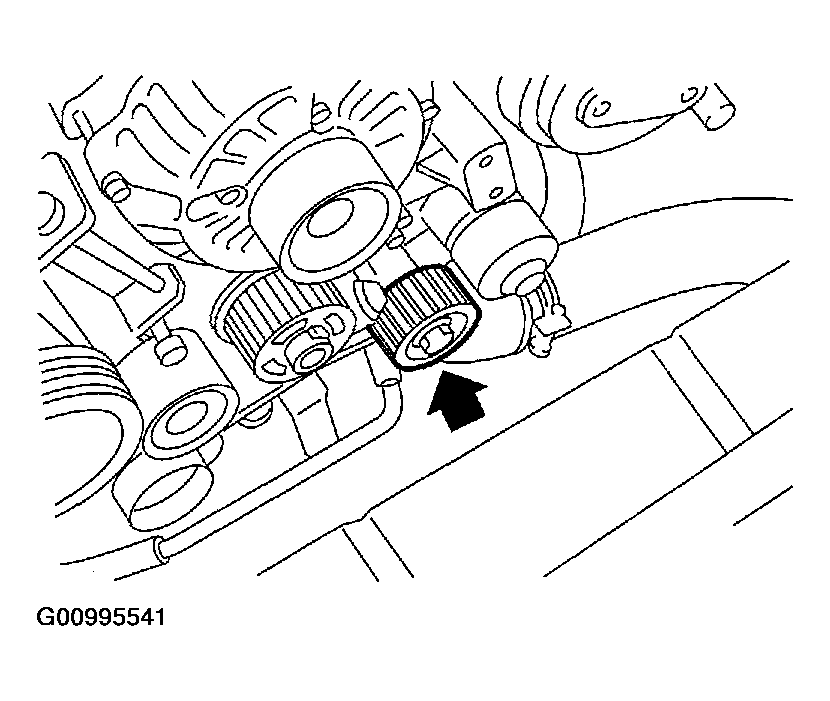

Fig 2: Removing Belt Idler
Courtesy of SUBARU OF AMERICA, INC.
Remove the cam sprocket (LH) by using ST.
ST 18231AA010 CAM SPROCKET WRENCH

NOTE: Also the CAM SPROCKET WRENCH (499207100) can be used.

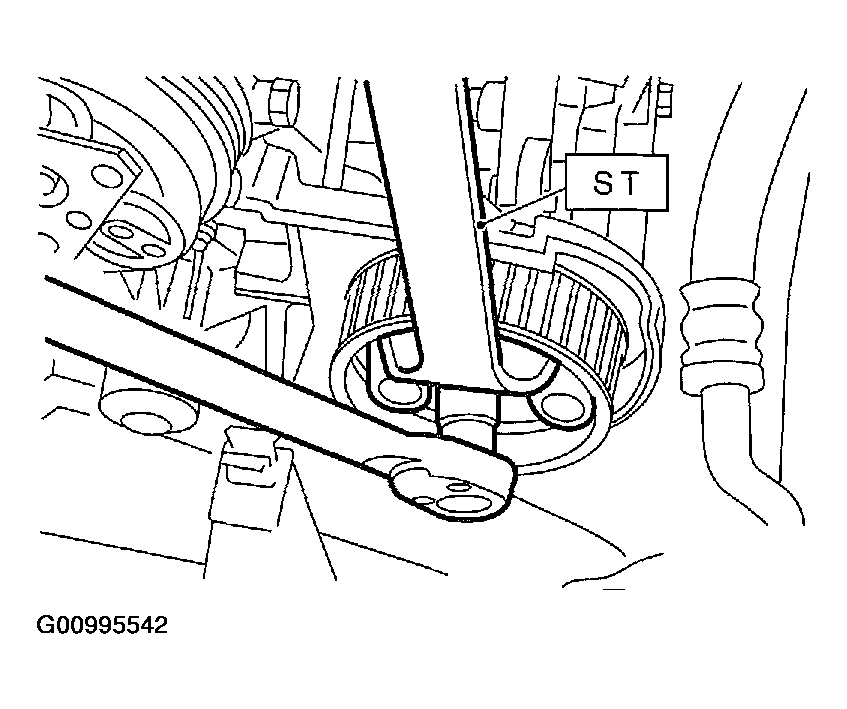

Fig 3: Removing Cam Sprocket (LH) Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the belt cover No. 2 (LH).

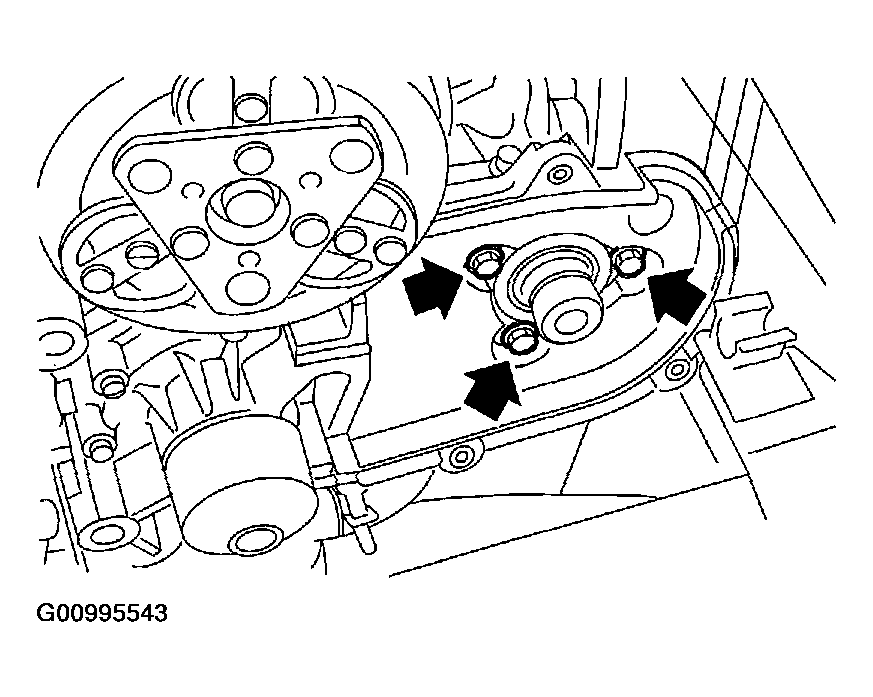

Fig 4: Removing Belt Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the tensioner bracket.

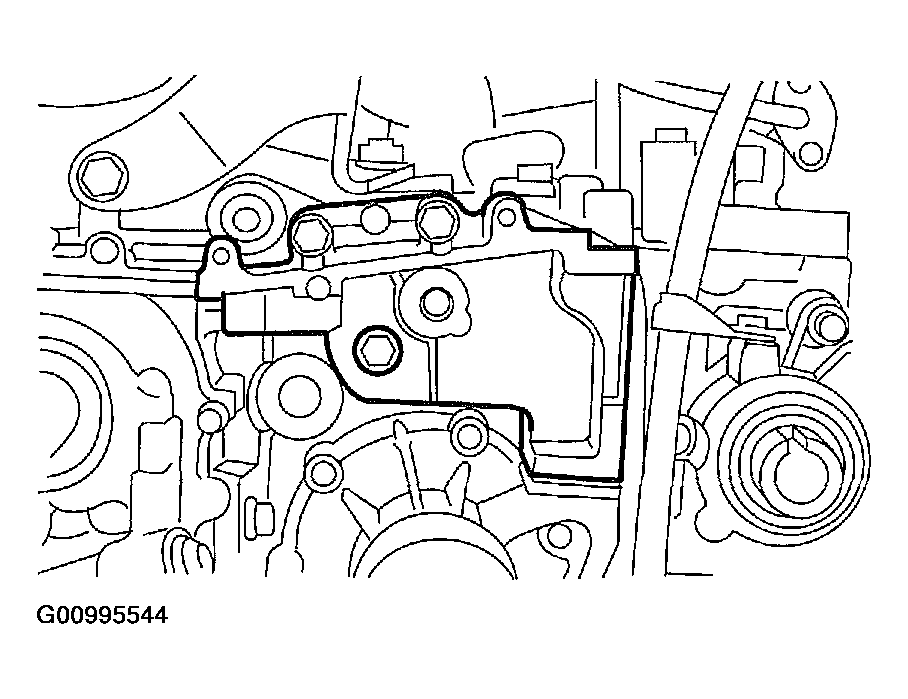

Fig 5: Removing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the hose from water pump.
Remove the water pump.

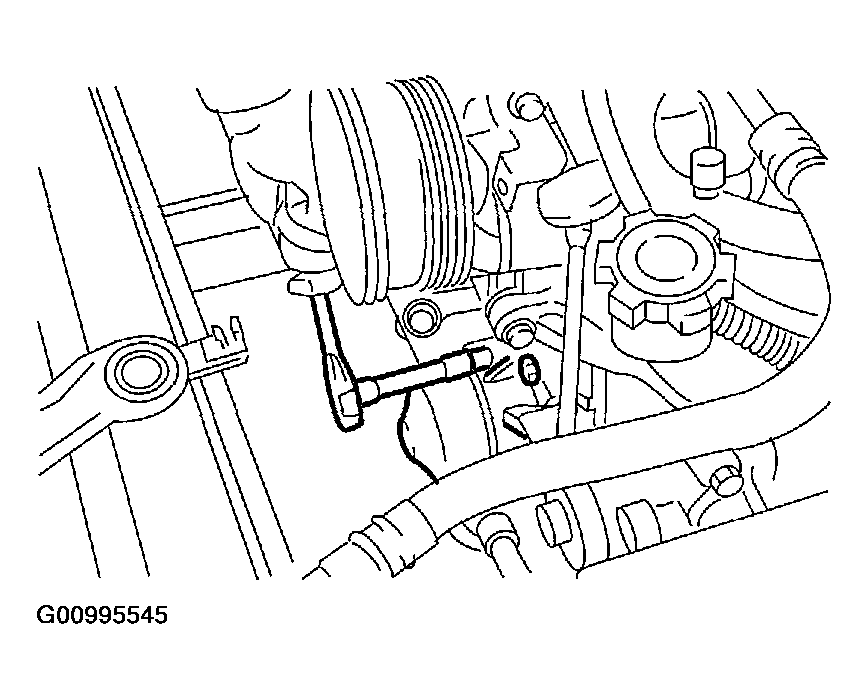

Fig 6: Removing Water Pump
Courtesy of SUBARU OF AMERICA, INC.
