Section 118 (Engine Cooling System): Thermostat: Installation

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the thermostat in the water pump, and then install the thermostat cover together with a gasket.
NOTE:
- When installing hte thermostat, use a new gasket.
- The thermostat must be installed with the jiggle pin (A) facing to front side.
Tightening torque: 6.5 N.m (0.66 kgf-m, 4.8 ft-lb)

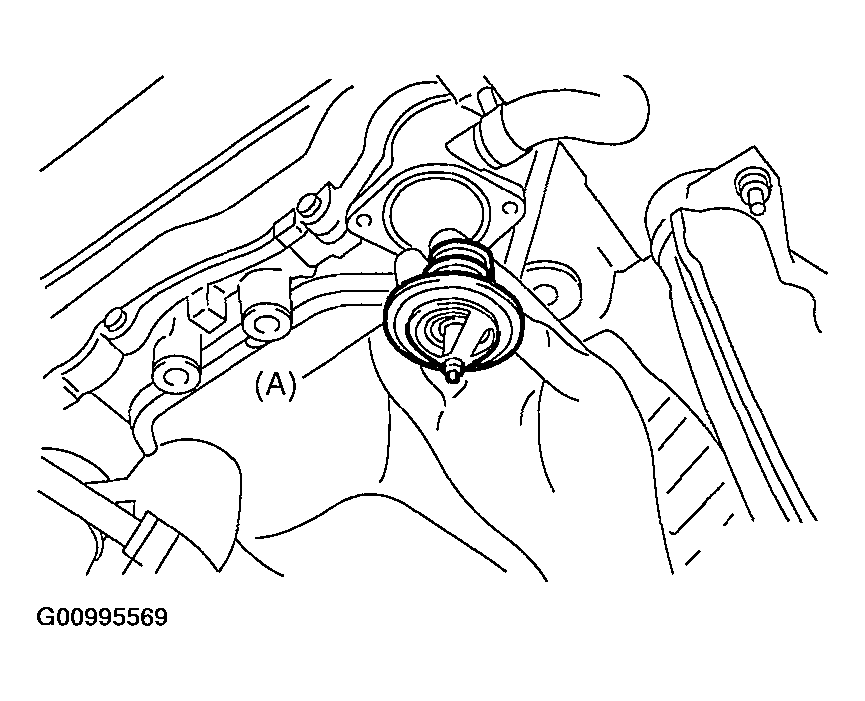

Fig 1: Installing Thermostat
Courtesy of SUBARU OF AMERICA, INC.
Fill engine collnat. Refer to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
