Upper Inner Trim: Installation

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

CAUTION: Be sure to securely hook pawls of inner trim panel to body flange.

NOTE: When installing the center pillar upper trim and front pillar upper trim, be sure to set the front mole as shown in the figure.

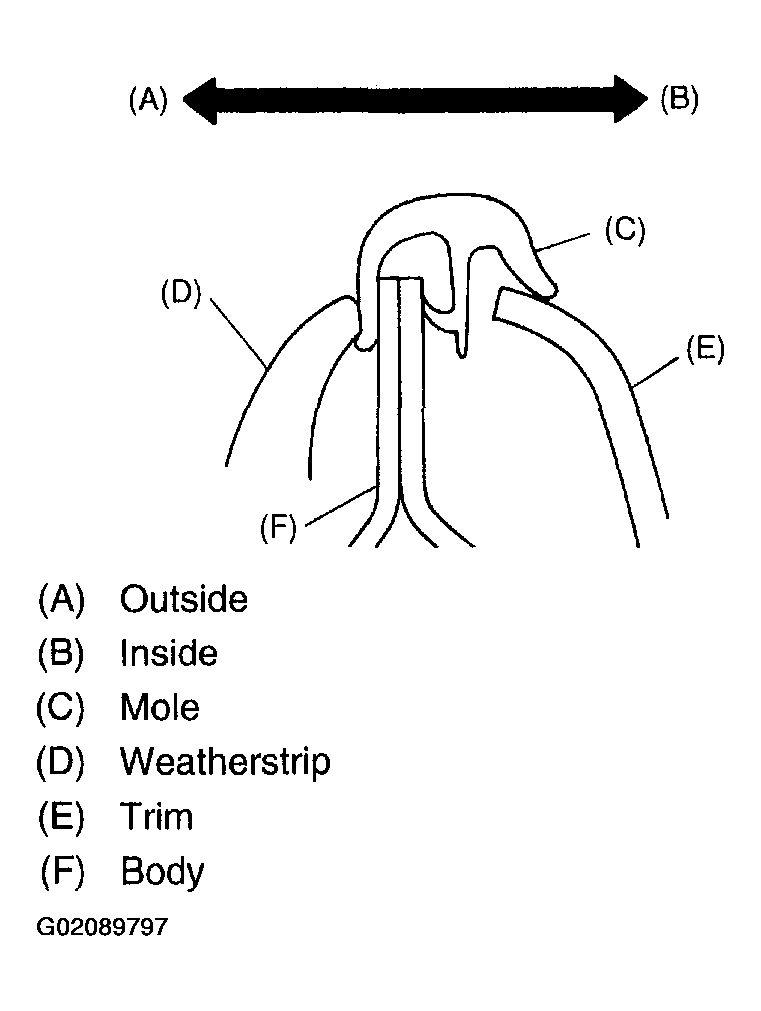

Fig 1: Identifying Setting Of Front Mole

Courtesy of SUBARU OF AMERICA, INC.
