Instrument Panel Assembly: Installation

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal.

CAUTION:
  • Be careful not to snag the harness.
  • Make sure to connect the harness connector.

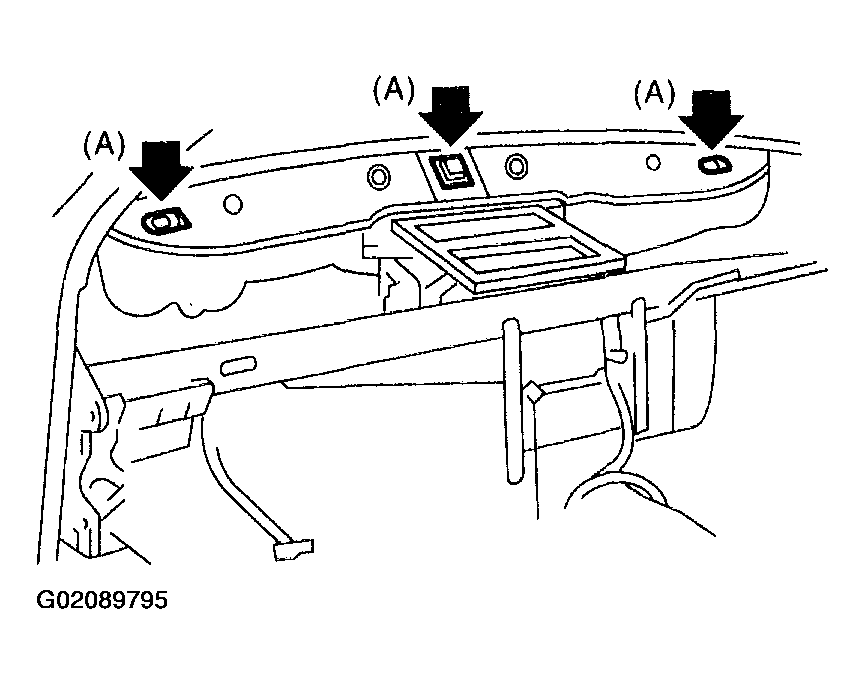

NOTE: When setting the instrument panel into position, push the hook into grommet (A) on the body panel.
Fig 1: Installing Instrument Panel
G02089795Courtesy of SUBARU OF AMERICA, INC.
