Wiper Control Relay: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the right quarter lower trim. Refer to REMOVAL , Rear Quarter Trim.
  3. Loosen the nut to remove control unit.

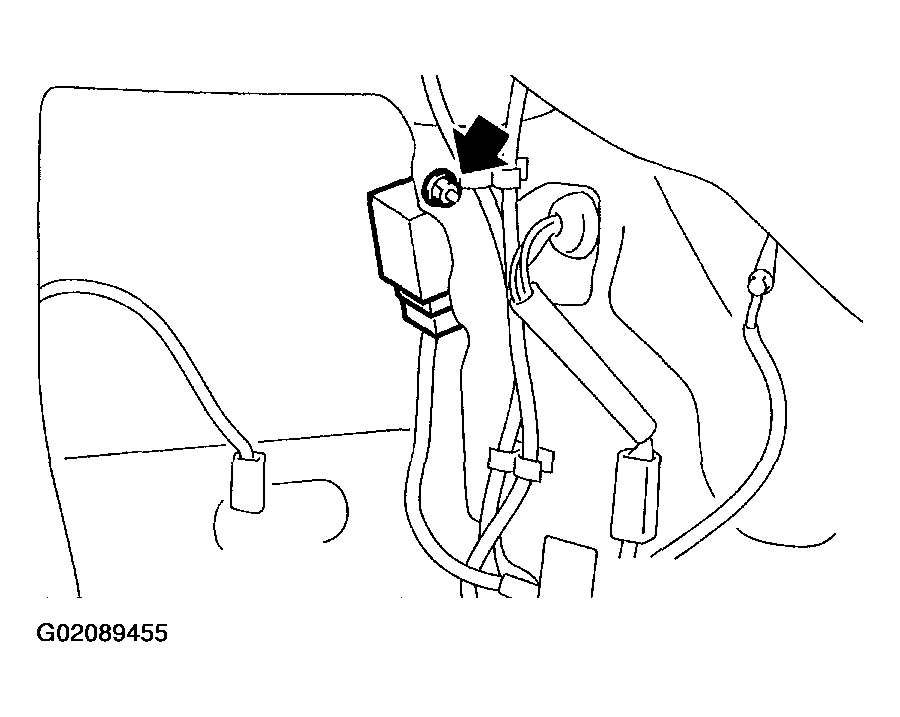

    Fig 1: Loosening Nut To Remove Control Relay
    G02089455Courtesy of SUBARU OF AMERICA, INC.
