Inhibitor Switch (A/T)

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Measure the inhibitor switch resistance.

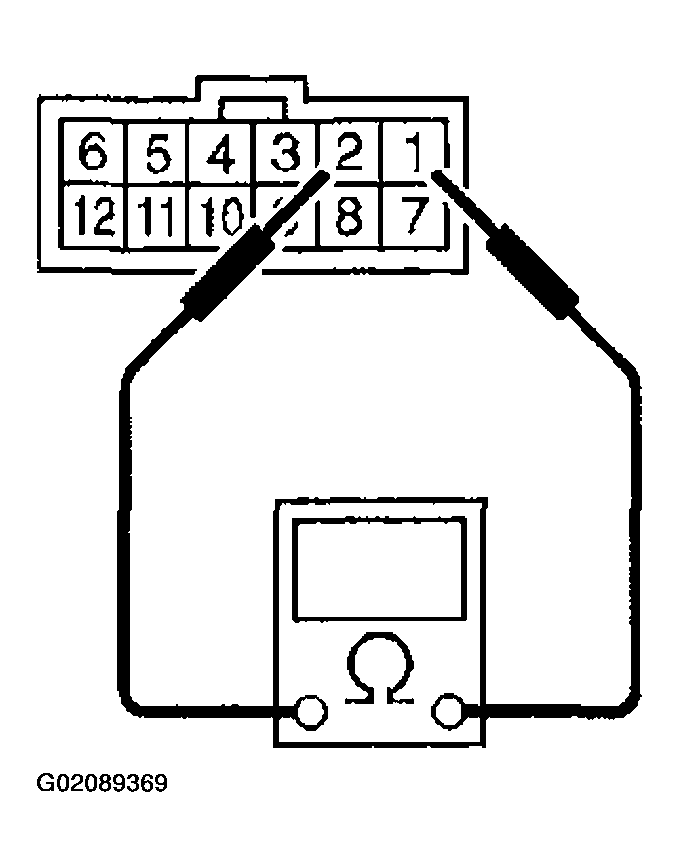

Fig 1: Measuring Inhibitor Switch Resistance
G02089369Courtesy of SUBARU OF AMERICA, INC.

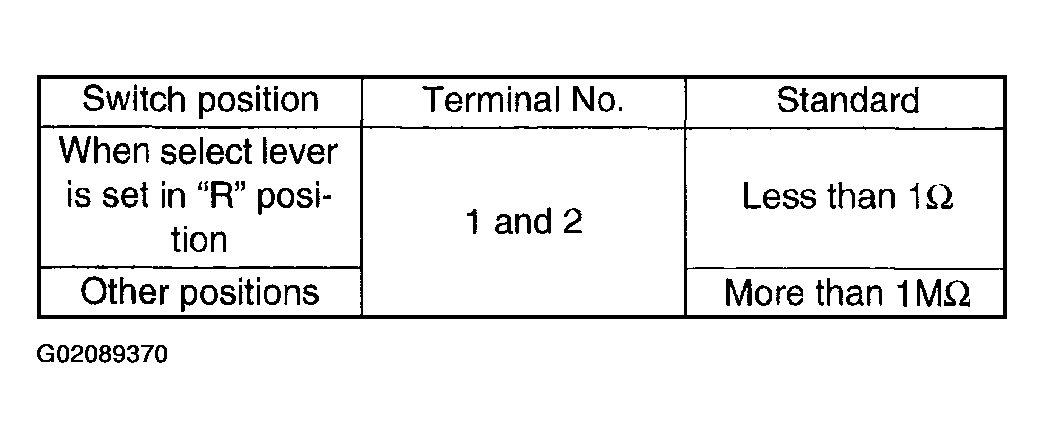

Fig 2: Inhibitor Switch Resistance Chart
G02089370Courtesy of SUBARU OF AMERICA, INC.
