Pressure Switch (Triple Pressure Switch): Inspection
WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the manifold gauge to the service valve on the high-pressure side.

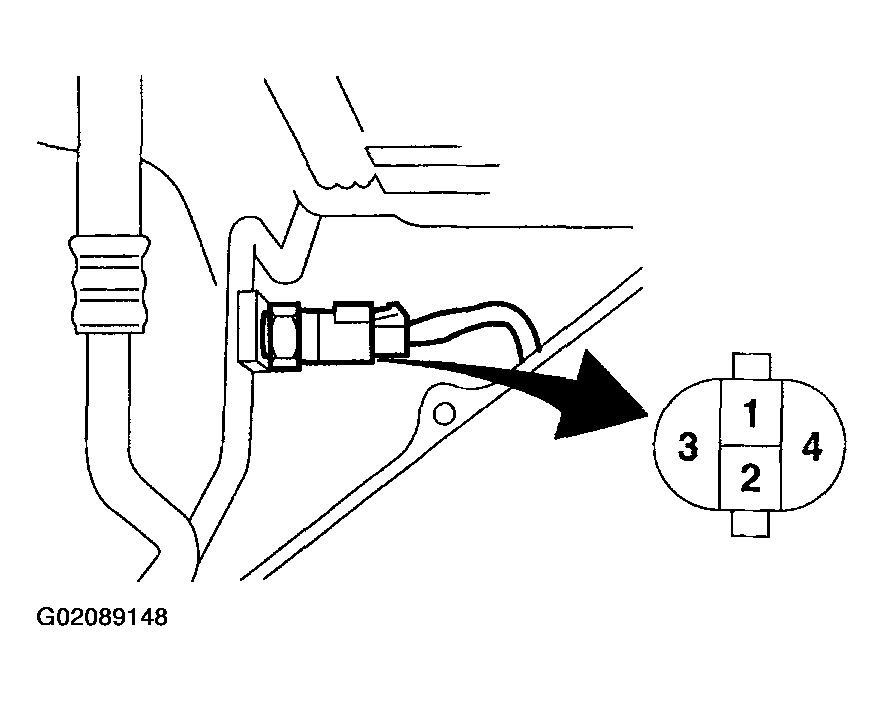

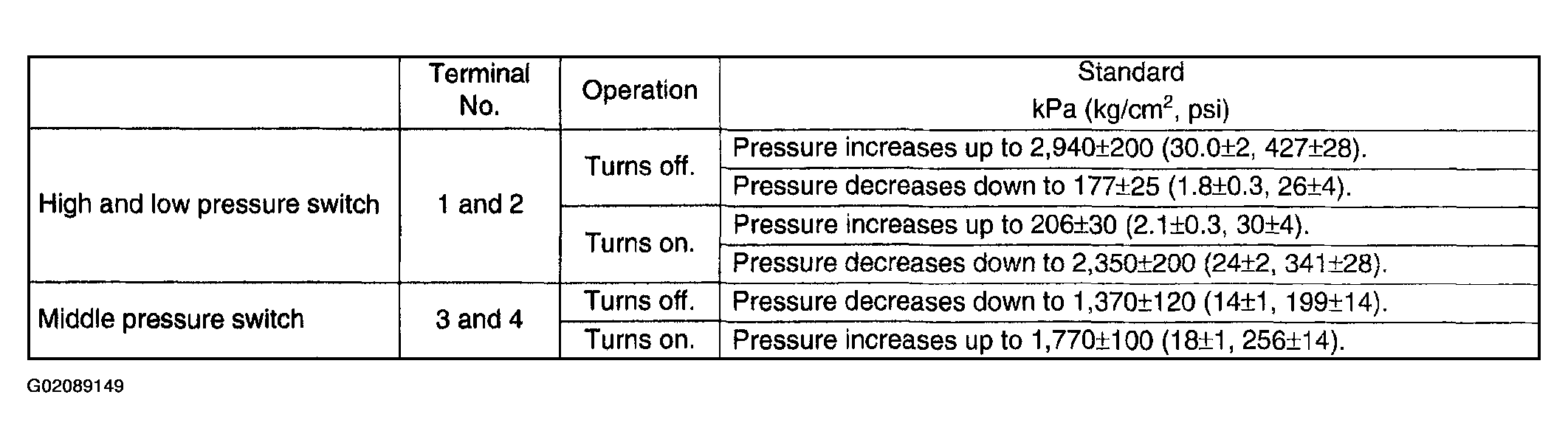

- Remove the pressure switch harness connector. Using a circuit tester, inspect the ON-OFF operation of the pressure switch.
