Heater Core: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Remove the heater cooling unit. Refer to REMOVAL , Heater Cooling Unit.
Open the heater core pipe cover.

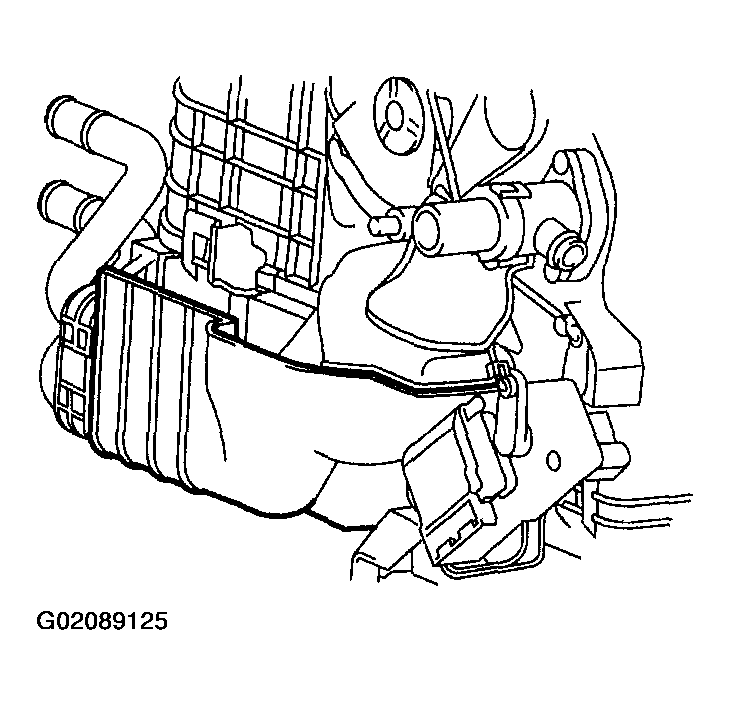

Fig 1: Opening Heater Core Pipe Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws to remove mode actuator.

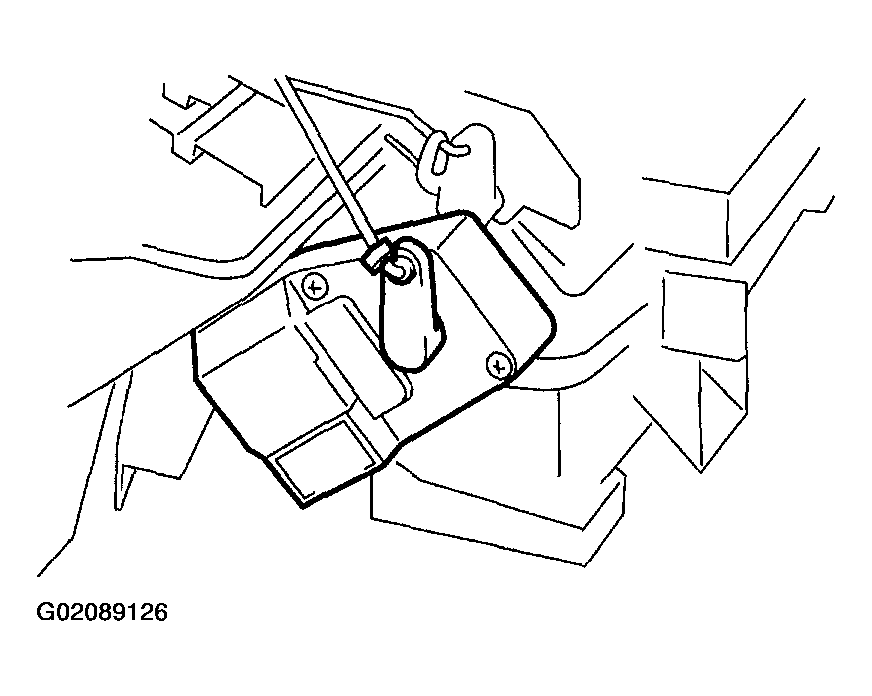

Fig 2: Loosening Screws To Remove Mode Actuator
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws to remove foot duct.

Fig 3: Loosening Screws To Remove Foot Duct
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws to remove evaporator cover.

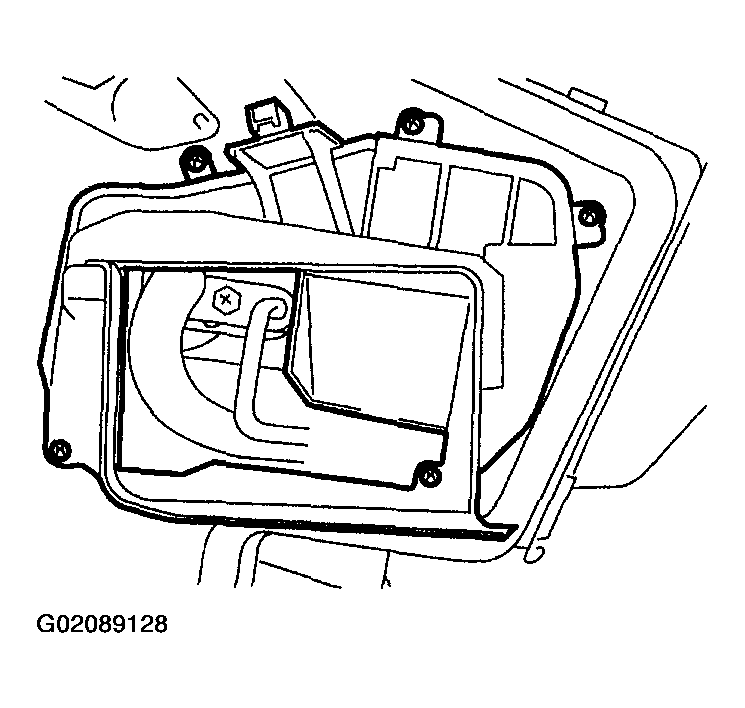

Fig 4: Loosening Screws To Remove Evaporator Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws to remove lower case.

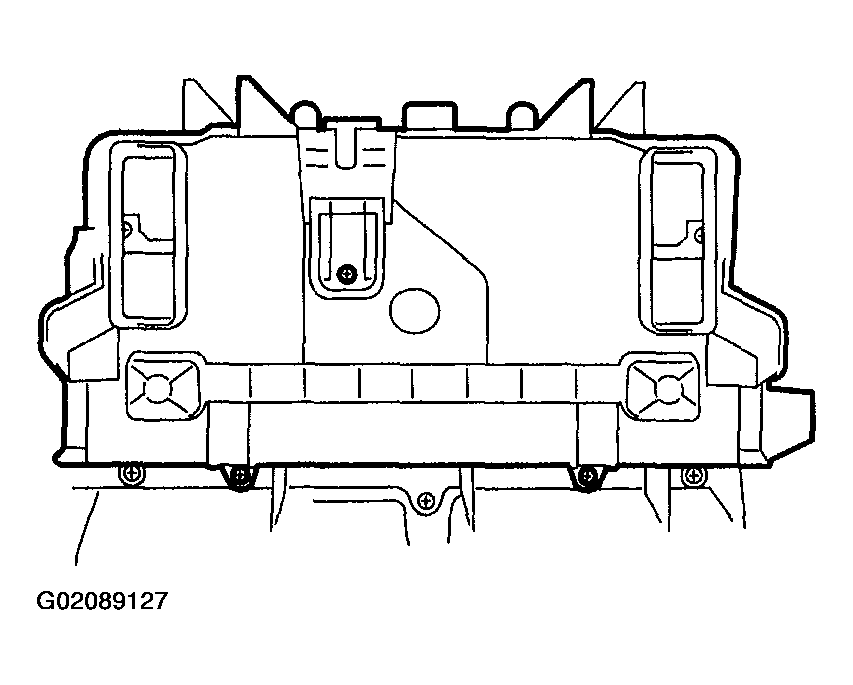

Fig 5: Loosening Screws To Remove Lower Case
Courtesy of SUBARU OF AMERICA, INC.
Remove the heater core.

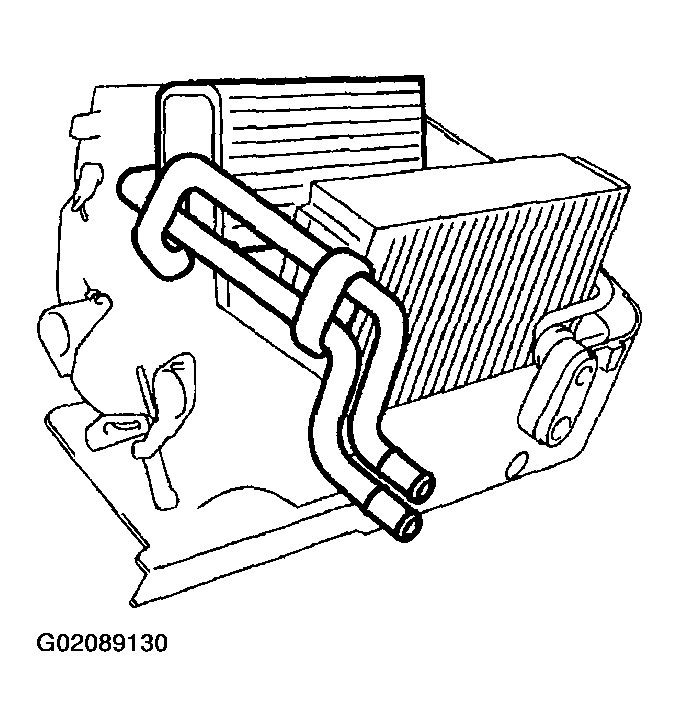

Fig 6: Removing Heater Core
Courtesy of SUBARU OF AMERICA, INC.
